Vlissingen, The Netherlands 30 October 2020 |
|
Name |

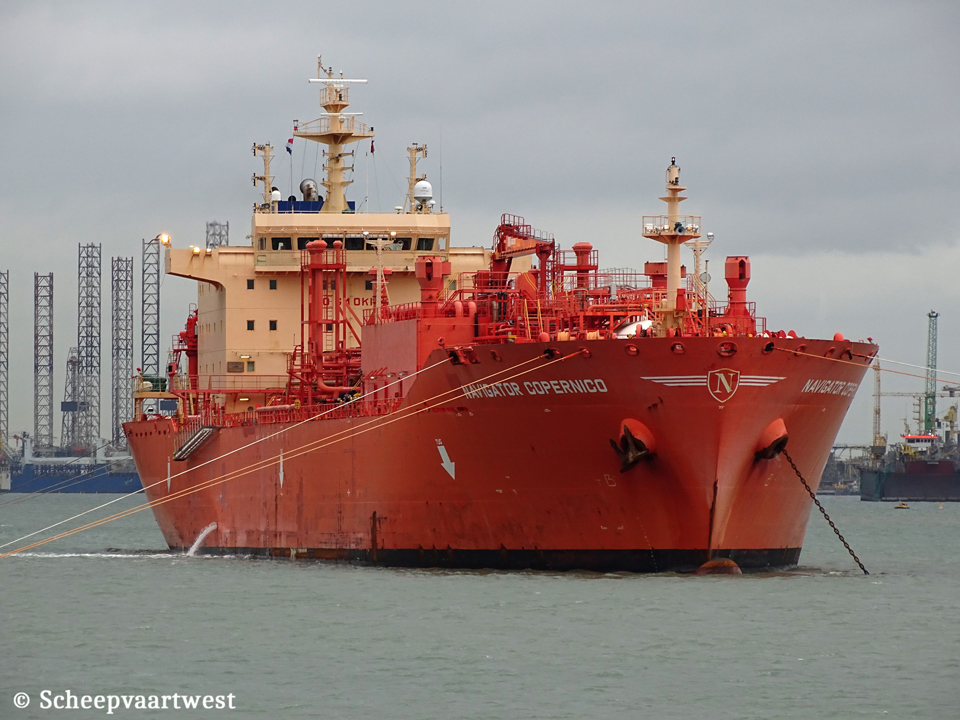

NAVIGATOR COPERNICO |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9704520 |
|
Call sign |
D5HE6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
17.208 t |
|
DWT |
16.589,7 t |
|
NT |
5.163 t |
|
Length |
159,86 m overall 152,74 m between perpendiculars |
|
Breadth |
24,83 m extreme |
|
Draught |
Summer: 9,40 m |
|
Keel to mast end |
42,73 m |
|
Depth |
16,70 m |
|
Speed |
Max: 16,0 knots |
|
Built |
2016 |
|
Keel laid |
21/08/2015 |
|
Launch date |
16/11/2015 |
|
Date of completion |
14/04/2016 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Linhai China |
|
Yard number |
H2557 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x MAN-B&W/Hudong 6S50ME-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 7.170 kW / 9.748 hp at 114,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
3x MAN 5L21/31 main diesel generatorsets each 950 ekW |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset |
|
Number of tanks |
4x Bi-lobe Independent Type C (-50°C - 5,3 Bar) |
|
Cargo tank capacity |
Liquid: 20.580 m³ |
|
Deck tanks |
2 |
|
Deck tank capacity |
195 m³ each |
|
Number of pumps |
8x Svanehoy deepwell Eelec. motor driven cargo pumps each 250 m³/h |
|
Tank capacities |
Ballast: 7.463,3 m³ HFO: 1.278 m³ MGO: 437 m³ Fresh water: 217 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Commercial manager |
Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
ISM manager |
Northern Marine Management Ltd. Alba House, 2, Central Avenue, Clydebank Business Park Clydebank, G81 2QR United Kingdom |
|
Registered owner |
Navigator Copernico LLC Care of Navigator Gas LLC The Verde, 10, Bressenden Place London, SW1E 5DH United Kingdom |
|
Latest data adjustment |
27 October 2021 |
