Tromsø, Norway 02 June 2019 |
 |
| Tromsø 02/06/19 |
|
Name |

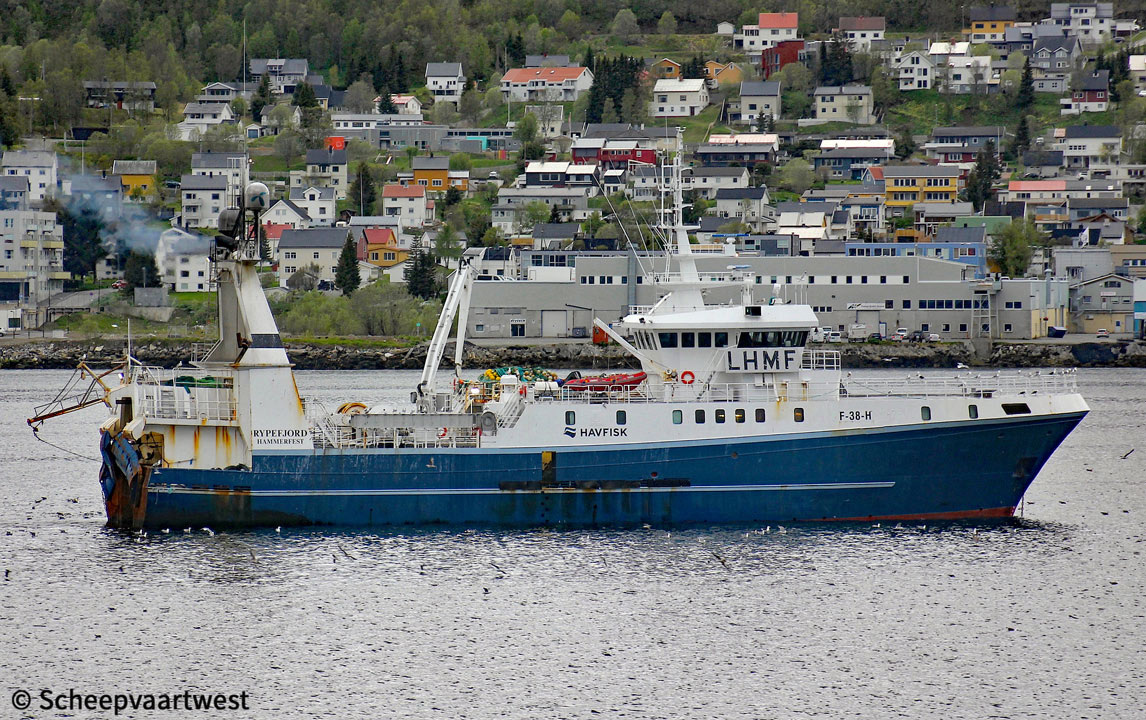

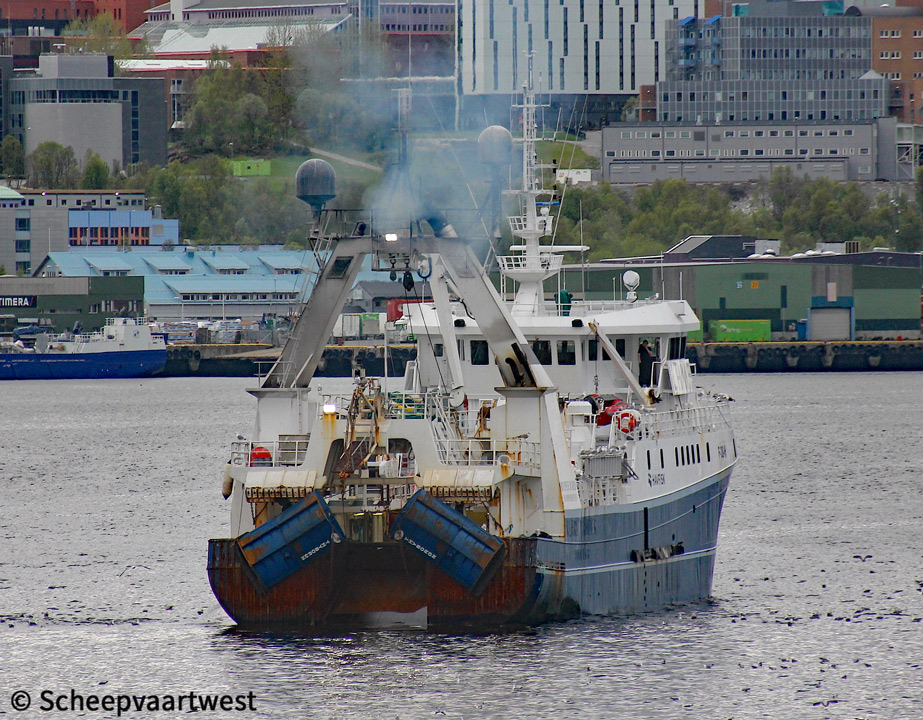

RYPEFJORD |
|
External marking |
F-38-H |
|
Previous names |
1995 - 2014 K.Arctander |
|
Type |
Fishing boat - Stern/Factory trawler |
|
Classification |
DNV GL |
|
IMO-number |
9131670 |
|
Call sign |
LHMF |
|
Flag |
Norway |
|
Port of registry |
Hammerfest |
|
GT |
1.192 t |
|
DWT |
Summer: 470 t |
|
NT |
357 t |
|
Length |
53,10 m overall 45,65 m between perpendiculars |
|
Breadth |
12,00 m extreme |
|
Draught |
Max: 5,03 m |
|
Depth |
9,05 m moulded |
|
Speed |
Max: 13,3 knots |
|
Built |
1995 2000 The vessel was re-built to a twin-trawler |
|
Keel laid |
01/04/1994 |
|
Launch date |
18/03/1995 |
|
Completion date |
09/05/1995 |
|
Builder |
Slipen Mekaniske Verksteder AS |
|
Yard number |
56 |
|
Material |
Steel |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x Wärtsilä Wichmann 8V28B - 8 cylinder combustion engine 3.589 bhp / 2.642 kW at 600 rpm Built: 1994 |
|
Propellers |
1x Wichmann PR82/4 controllable pitch propeller |
|
Shaft generators |
1x Stamford 1.200 kVA |
|
Generators |
2x Cummins KTA19G3 diesel engine each 456 kW / 620 bhp coupled with 2 Stamford generators each 549 kVA |
|
Trawl winch |
2x Rapp Hydema 31,7 t each |
|
Cargo freezer hold |
600 m³ |
|
Tank capacities |
Diesel oil: 356 m³ Fresh water: 45 t Ballast: 46,10 t |
|
Navigation |
Autopilot: Anschütz Decca navigator: Philips AP Mk 5 Echo sounder: Simrad EQ 50 ; Simrad ES 500 GPS Satellite navigator: Shipmate RS 5800 Gyro compass: Anschütz Log: Ben ALS 48 Loran C: Raynav 580 Radar: Racal Decca C 343 ARPA S ; Racal Decca TM 341/6X |
|
Manager |
Aker Seafoods ASA |
|
Operator |
Havfisk ASA |
|
Owner |
Hammerfest Industrifiske A/S |
|
Previous names & owners |
1995 - 2006 K.Arctander - Nordland Havfiske AS 2006 - 2014 K.Arctander - Lofoten Trålerrederi A/S |
|
Latest data adjustment |
14 July 2019 |
