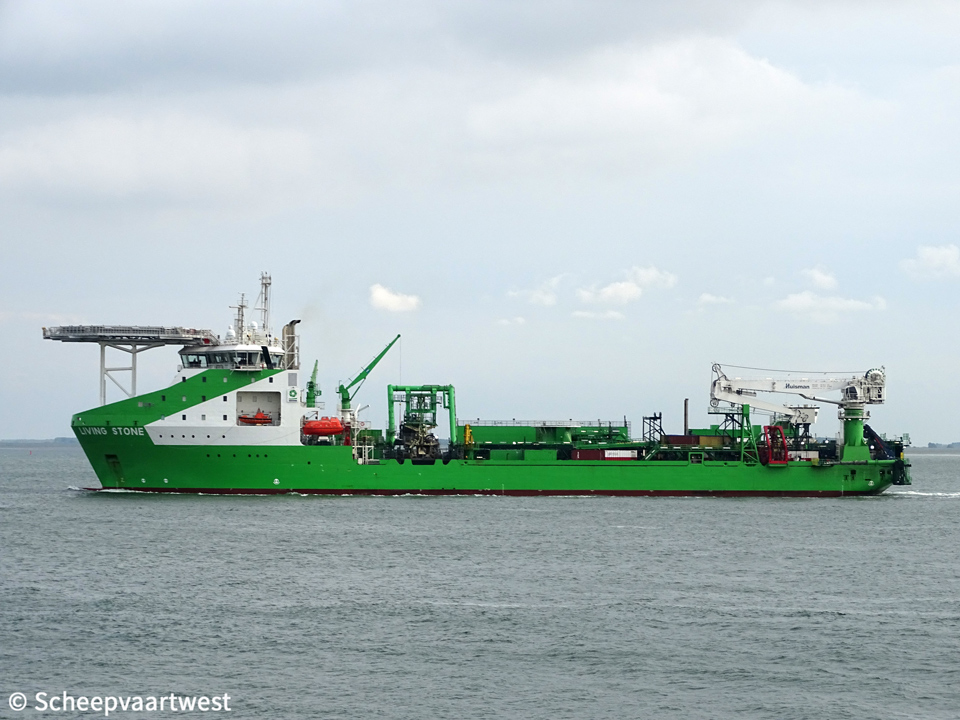

Living Stone 07

Westerschelde 12 July 2019

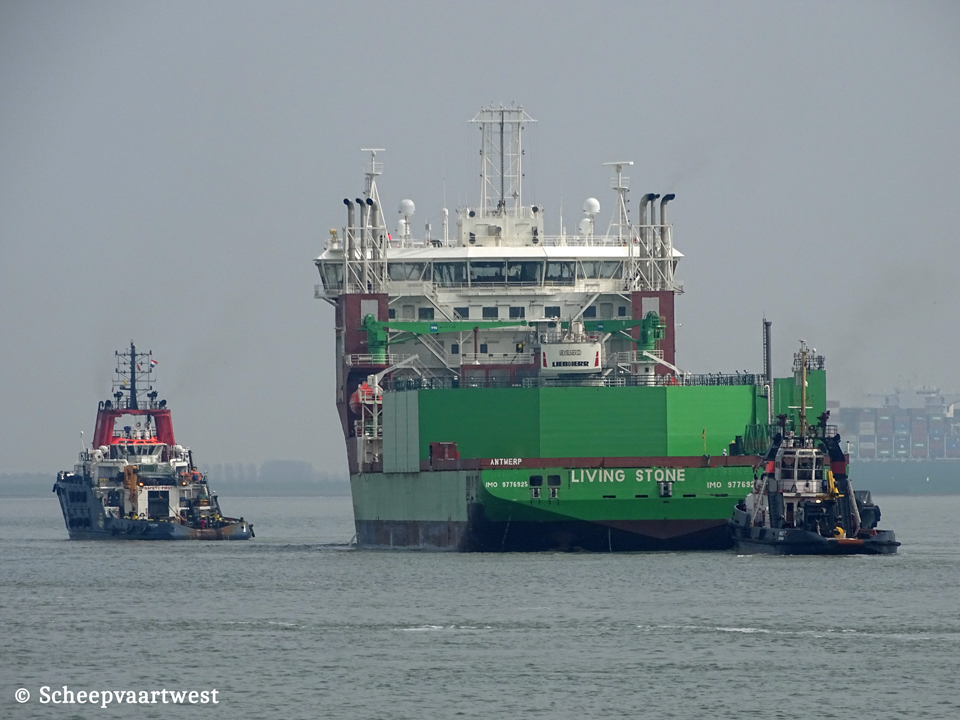

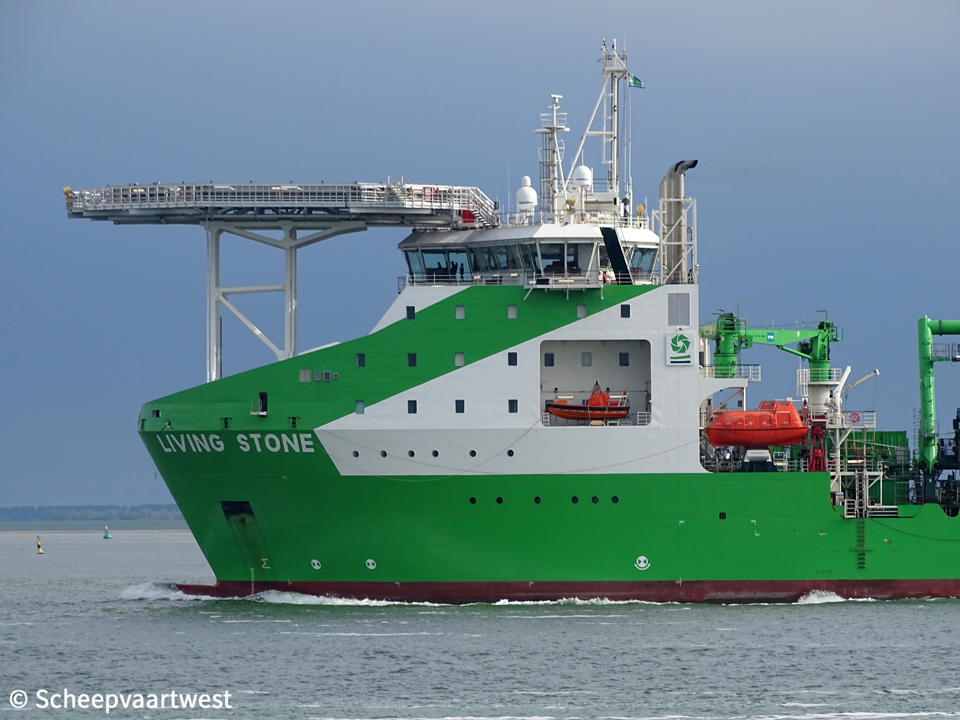

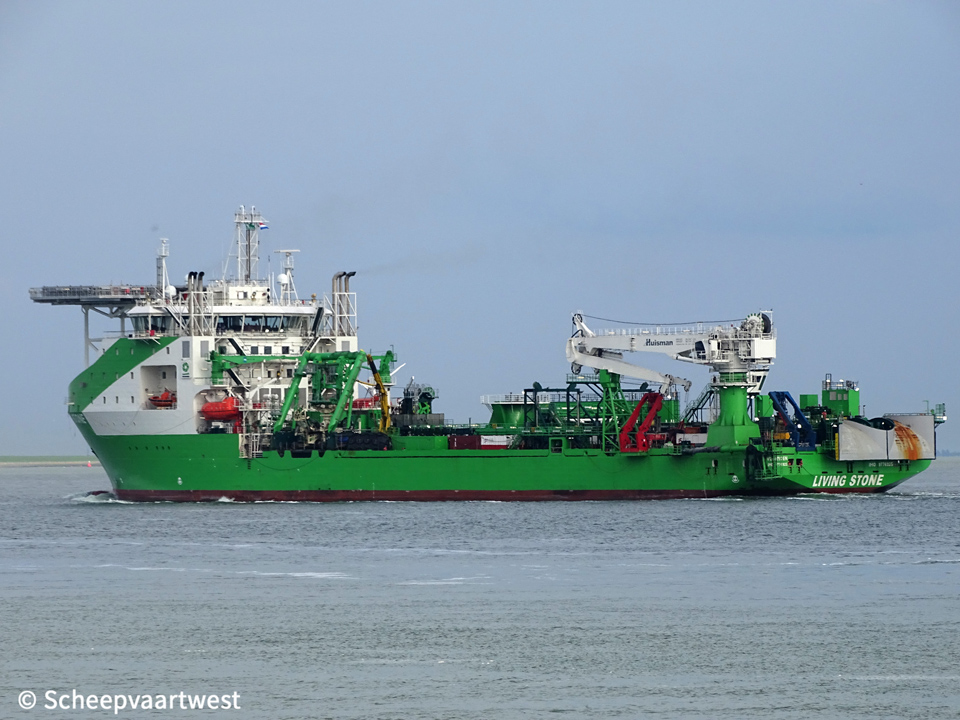

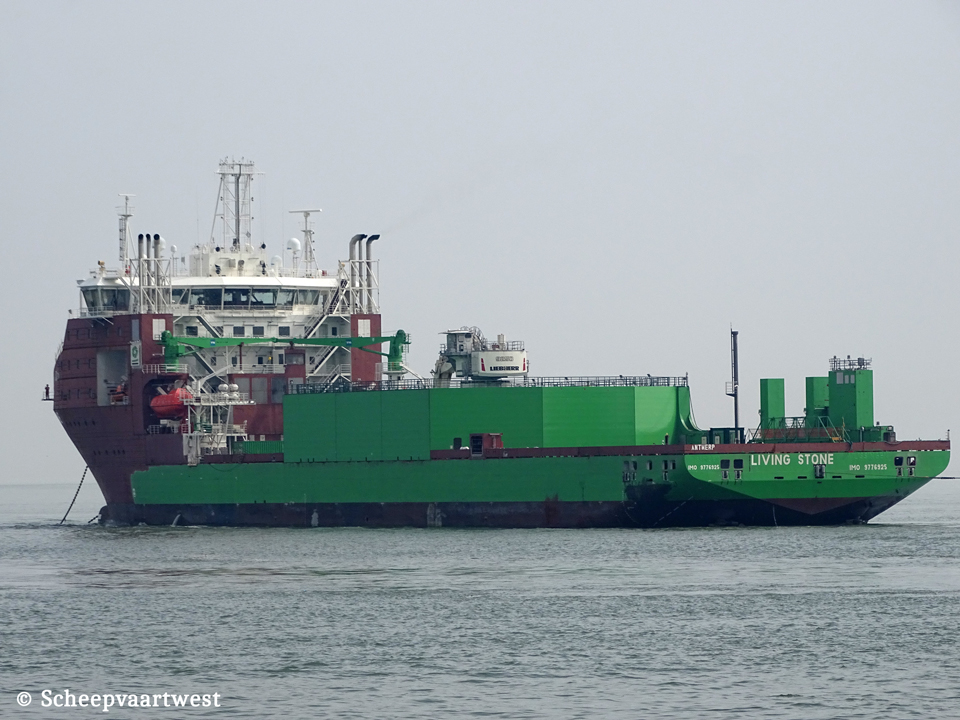

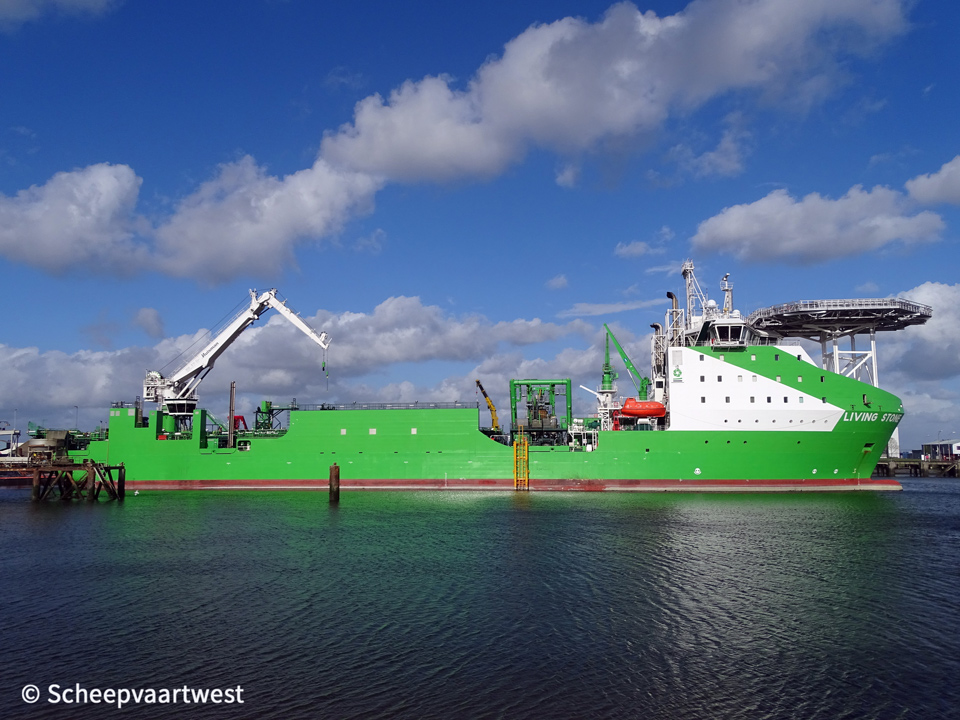

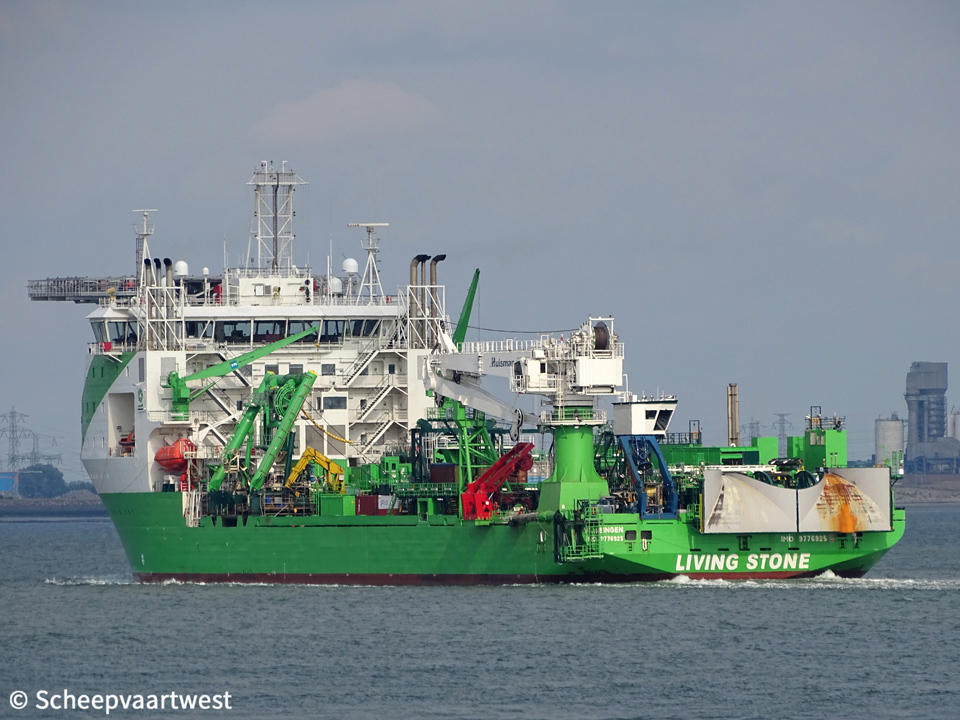

Living Stone 08   Living Stone 03   Living Stone 02   Living Stone 01   Living Stone IMO 9776925 09   Living Stone IMO 9776925 10
Westerschelde 12/07/19 Westerschelde 10/05/19 Westerschelde 10/05/19 Vlissingen 04/05/19   Westerschelde 13/04/18   Westerschelde 13/04/18

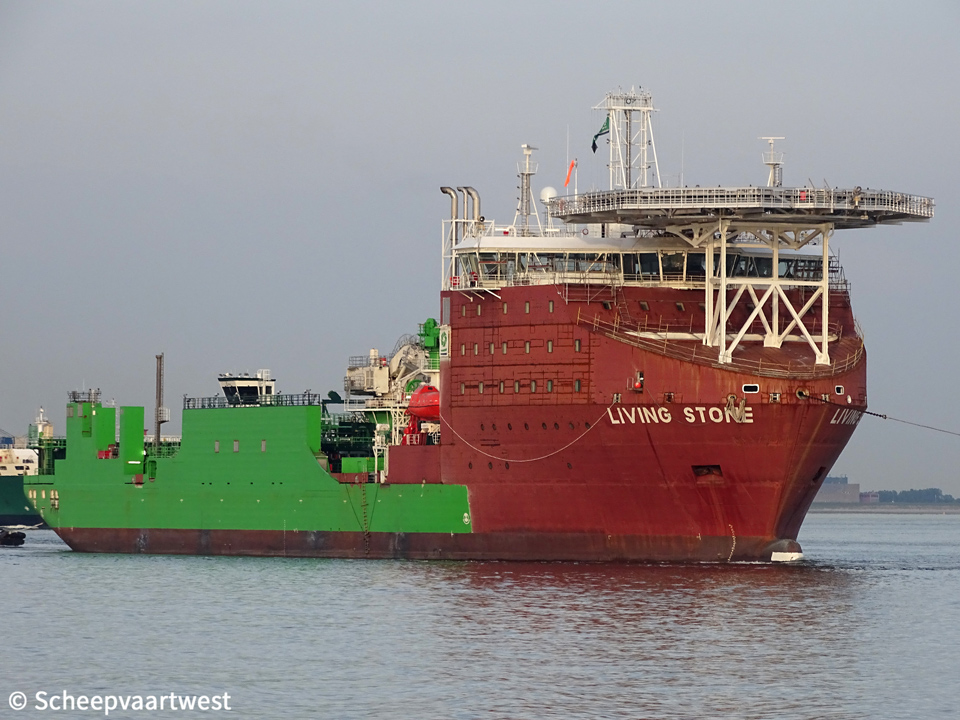

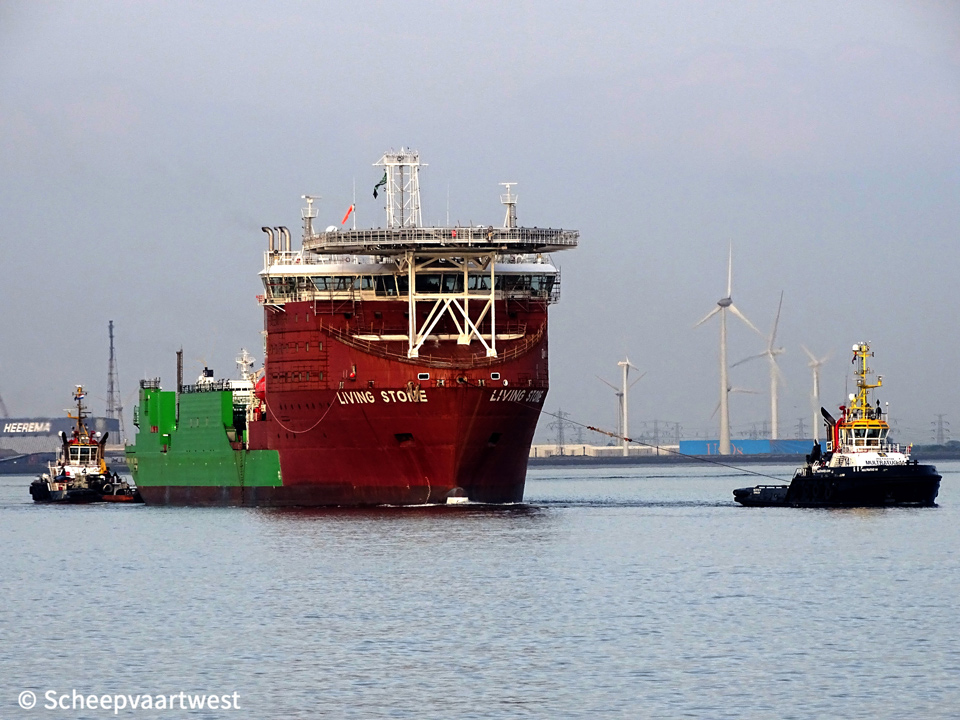

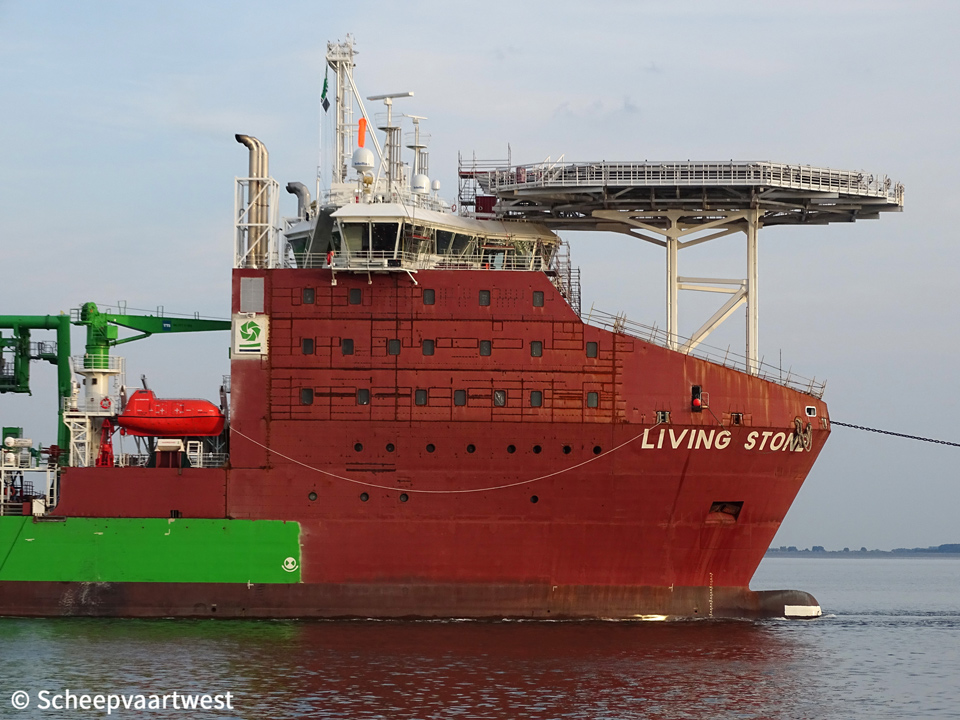

Living Stone 05   Living Stone 04   Living Stone 06
Westerschelde 11/05/18 Westerschelde 11/05/18 Westerschelde 11/05/18


Name

LIVING STONE

Type

Cable layer - Multi purpose offshore vessel

IMO-number

9776925

Call sign

PBXN

Flag

The Netherlands

Port of registry

Vlissingen

Previous flags

2018 - 2018 Belgium, Antwerpen - Call sign: ORSS

GT

18.886 t

DWT

13.815 t

NT

5.666 t

Length

161,00 m overall

145,25 m between perpendiculars

Breadth

32,24 m extreme

Draught

7,12 m

Depth

11,50 m moulded

Speed

14,0 knots loaded

Built

2018

Keel laid

30/12/2015

Launch date

18/09/2016

Date of completion

12/07/2018

Builder

CNN La Naval Sestao, S.L.

Bilbao

Spain

Yard number

345

Hull material

Steel

Main engine

2x Wärtsilä 9L34DF dual fuel engines 4.320 kW each

2x Wärtsilä 6L34DF dual fuel engines 2.880 kW each

Builder: Wärtsilä Finland Oy

Main azimuth thrusters

2x 3.400 kW each

Retractable azimuth thrusters

2x 2.000 kW each

Boilers

1x Auxiliary boiler, oil/gas fired

Harbour generator

1x Caterpillar C32 diesel generatorset

Emergency generator

1x MAN D2876 diesel generatorset

Total installed power

15.810 kW

Bow thruster

2x 1.200 kW each

Max. cable hold capacity

2x 5.000 t each

Max. rock loading capacity

1.200 m³

Maximum loading capacity

14.000 t

Tank capacities

Ballast: 5.852,5 m³

Anchor equipment

Length: 632,50 m

Diameter: 70 mm

Cargo gear

1x Crane - SWL 85,0 t

Manager

DEME Offshore The Netherlands B.V.

Breda

The Netherlands

Owner

Tideway BV

Minervum 7442

4817 ZG Breda

The Netherlands

Registered owner

Naviera Living Stone SL

Plaza Deportista Andres Muñoz 6 (Alicante)

Spain

Latest data adjustment

28 February 2023
