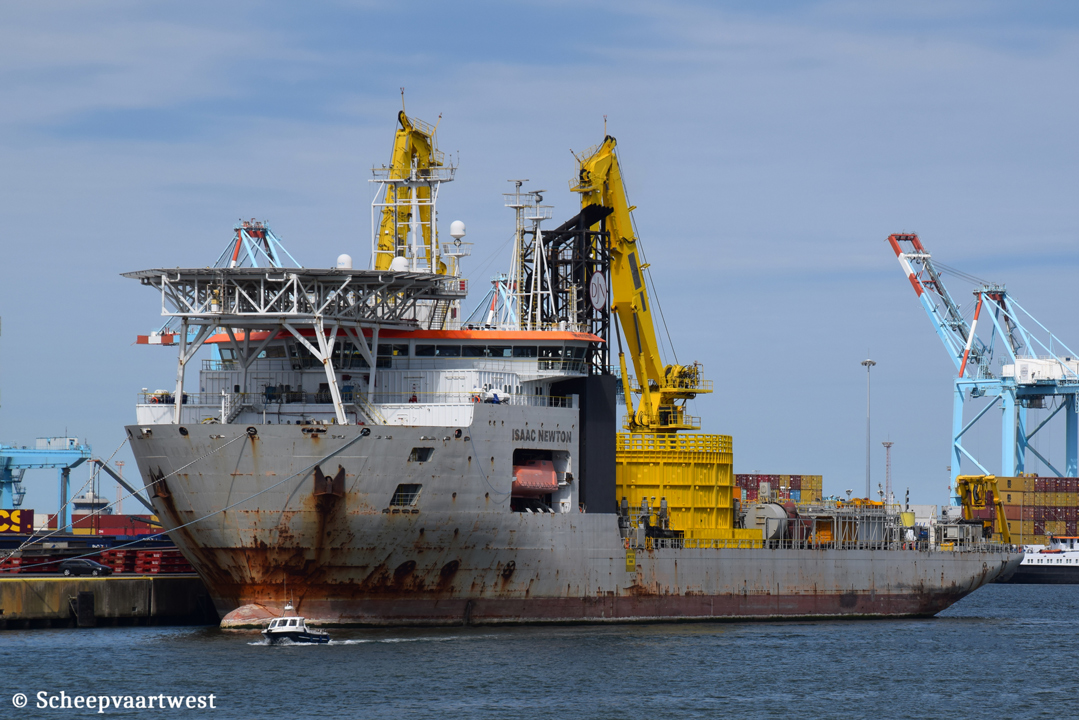

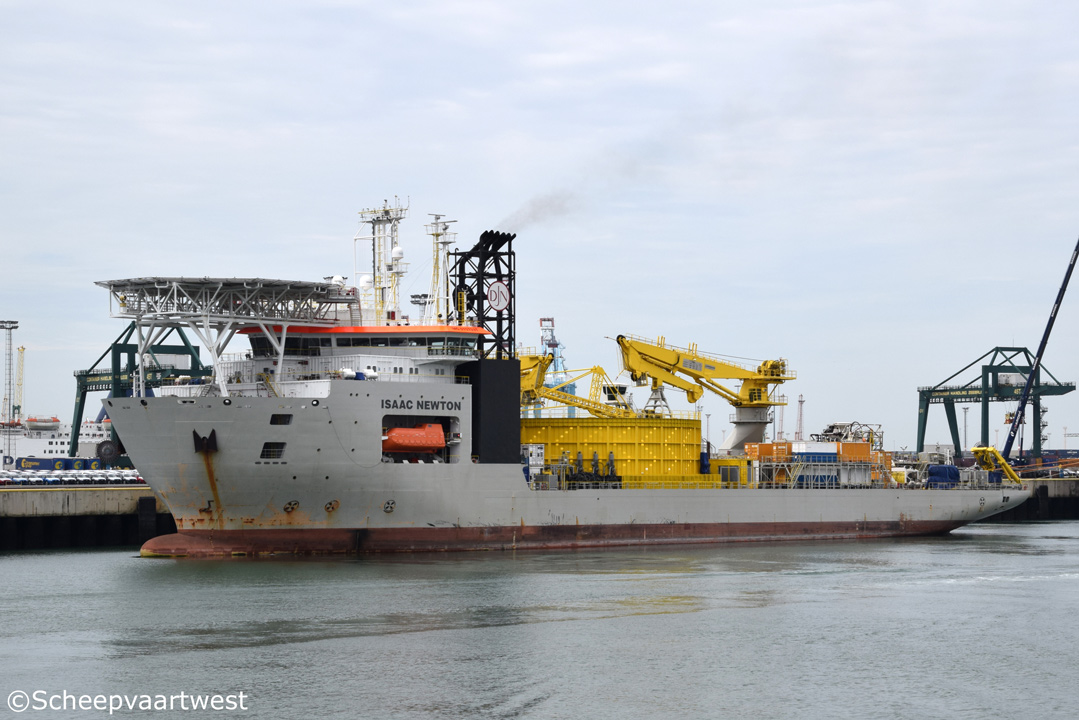

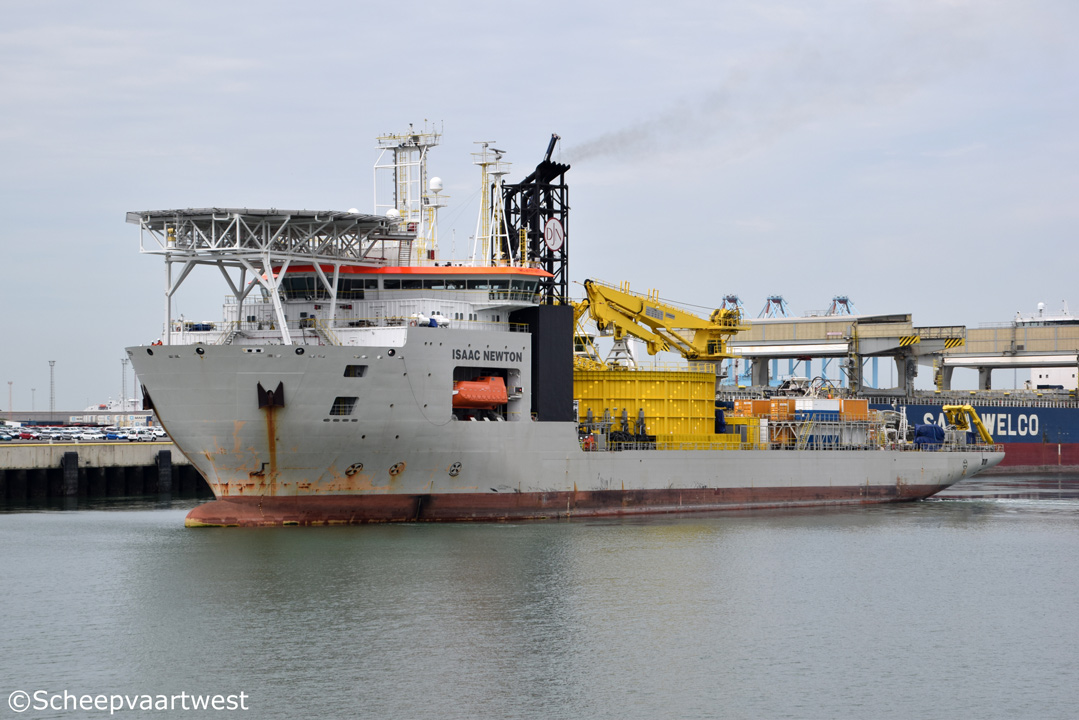

Zeebrugge 16 August 2017 |
 |
 |
|
| Zeebrugge 16/08/17 | Zeebrugge 24/08/22 | |
|
Name |
ISAAC NEWTON |
|
IMO-number |
9707297 |
|
Classification |
DNV |
|
Call sign |
LXND |
|
Flag |
G.D. of Luxembourg |
|
Port of registry |
Luxembourg City |
|
GT |
16.255 t |
|
DWT |
13.433,4 t |
|
NT |
4.877 t |
|
Length |
140,77 m overall 120,00 m between perpendiculars |
|
Breadth |
34,04 m extreme 32,00 m moulded |
|
Draught |
Summer: 7,00 m |
|
Depth |
11,00 m |
|
Speed |
12,5 knots |
|
Built |
2015 |
|
Keel laid |
27/08/2014 |
|
Launch date |
07/03/2015 |
|
Date of completion |
27/11/2015 |
|
Builder |
Uljanik Brodogradiliste d.d. Pula Croatia |
|
Yard number |
507 |
|
Hull material |
Steel |
|
Main engines |
Diesel-Electric 4x MAN-B&W 9L27/38 - 4 strtoke 9 cylinder 270 x 380 mm combustion engines total 11.880 kW / 16.152 hp at 720 rpm |
|
Propulsion |
2x Propulsion thruster, azimuth SRP 3030 FP each 3.300 kW |
|
Boilers |
2x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Generators |
4x MAN 9L27/38 diesel generatorsets |
|
Emergency generator |
1x MAN D2842LE201 diesel generatorset |
|
Bow thruster |
2x 1.500 kW each 1x 2.000 kW |
|
Turntable capacity |
5.000 t + 7.200 t |
|
Rock carrying capacity |
10.000 t |
|
Dynamic positioning |
DP2 |
|
Bollard pull |
100 t |
|
Tank capacity |
Ballast: 8.729 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Lifting equipment |
1x Crane - SWL 50,0 t 1x Crane - SWL 25,0 t |
|
Crew |
34 |
|
Accommodation |
For 75 persons |
|
Commercial manager |
Jan De Nul Luxembourg SA 34-36, Parc d'Activites 8308 Capellen Grand Duchy of Luxembourg |
|
ISM manager |
Dredging and Maritime Management S.A. 34-36, Parc d’Activités Capellen 8308 Capellen Grand Duchy of Luxembourg |
|
Operator |
Jan De Nul group Tragel 60 9308 Hofstade-Aalst Belgium |
|
Registered owner |
European Dredging Company (EDC) S.A. 34-36, Parc d'Activites, 8308 Capellen, G.D. Luxembourg |
|
Latest data adjustment |
04 September 2022 |
