Zeebrugge 09 October 2016 |
 |
 |
 |
||
| Zeebrugge 09/10/16 | Zeebrugge 09/10/16 | Zeebrugge 09/10/16 | ||
|
Name |

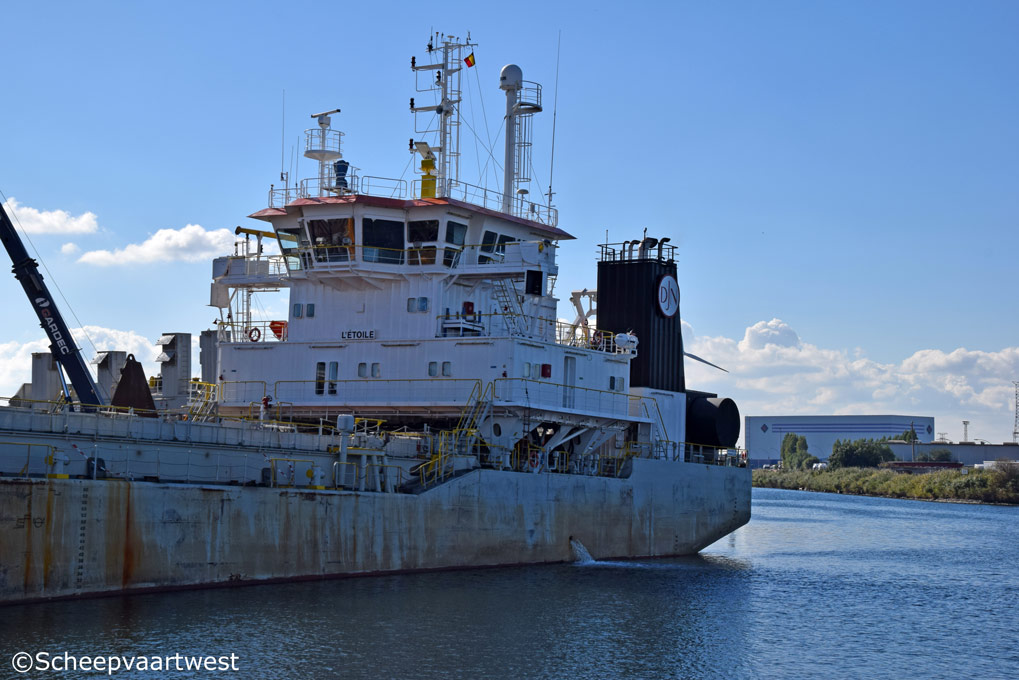

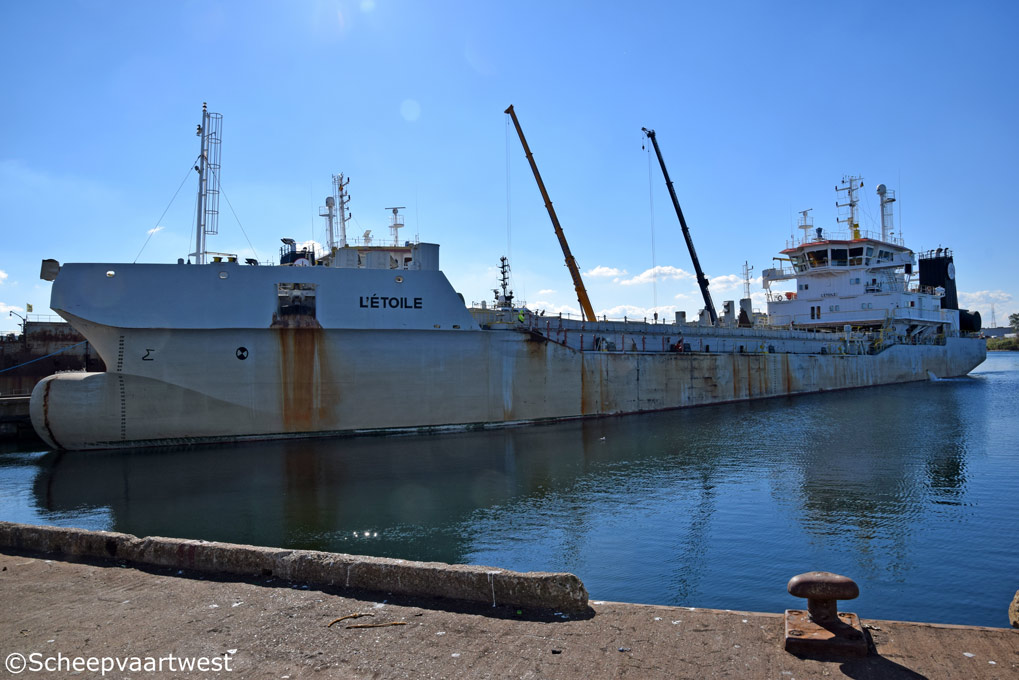

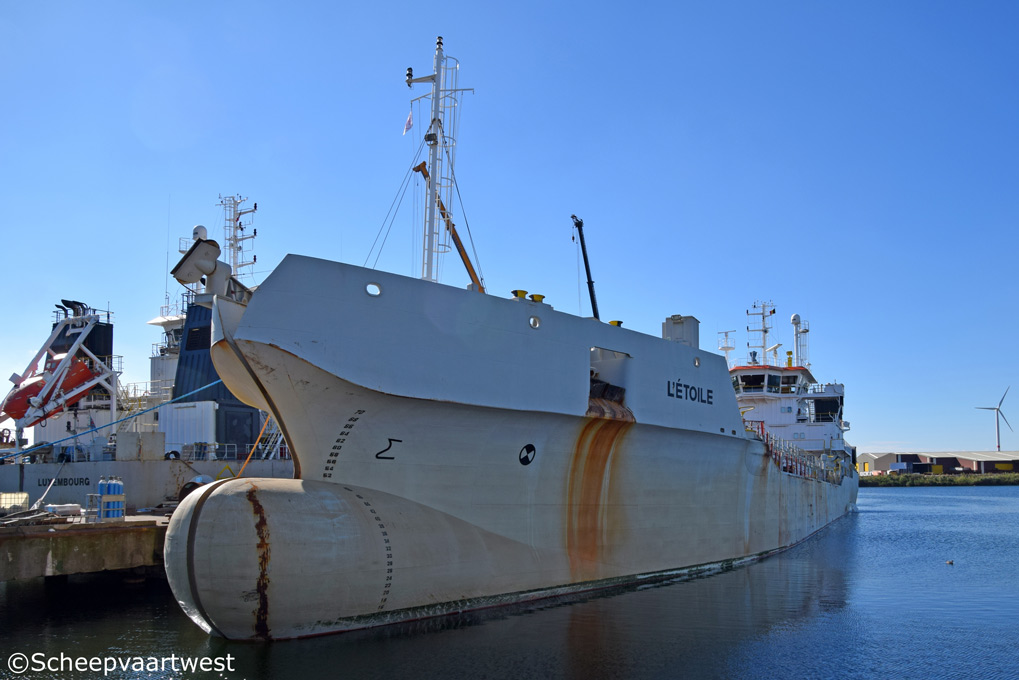

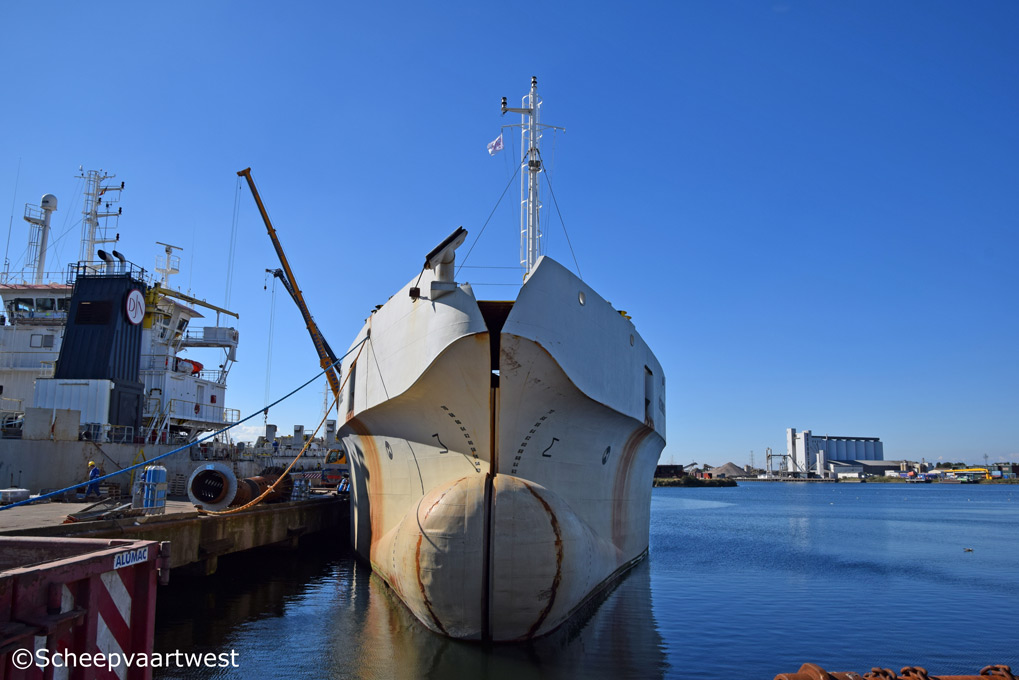

L'ETOILE |
|
Type |
Split hopper barge |
|
IMO-number |
9303340 |
|
Call sign |
LXEO |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
GT |
3.843 t |
|
DWT |
6.310 t |
|
NT |
1.164 t |
|
Length |
99,50 m overall 92,00 m between perpendiculars |
|
Breadth |
19,43 m |
|
Draught |
Summer: 5,85 m loaded |
|
Freeboard |
1.014 mm |
|
Depth |
6,30 m |
|
Speed |
12,4 knots |
|
Built |
2006 |
|
Date of completion |
18.01.2006 |
|
Builder |
Tianjin Xinhe Shipbuilding Heavy Industry Co.,Ltd. |
|
Yard number |
SB315 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x ABC - 4 stroke 8 cylinders 256 x 310 mm diesel engines total 3.700 kW / 5.028 hp at 1.020 rpm Built: 2005 Builder: Anglo Belgian Corporation NV Wiedauwkaai 43 9000 Gent |
|
Propellers |
2x Z PELLER LB propllers - aft at 1.000 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Generators |
2x Main diesel generatorsets each 668 kVA - 534 kW - 726 hp |
|
Bow thruster |
1x 550 kW |
|
Hopper capacity |
3.700 m³ |
|
Crew |
12 |
|
Operator |
Group Jan de Nul |
|
Accommodation |
10 Persons |
|
Registered owner |
Codralux SA |
|
Latest data adjustment |
27 October 2016 |
