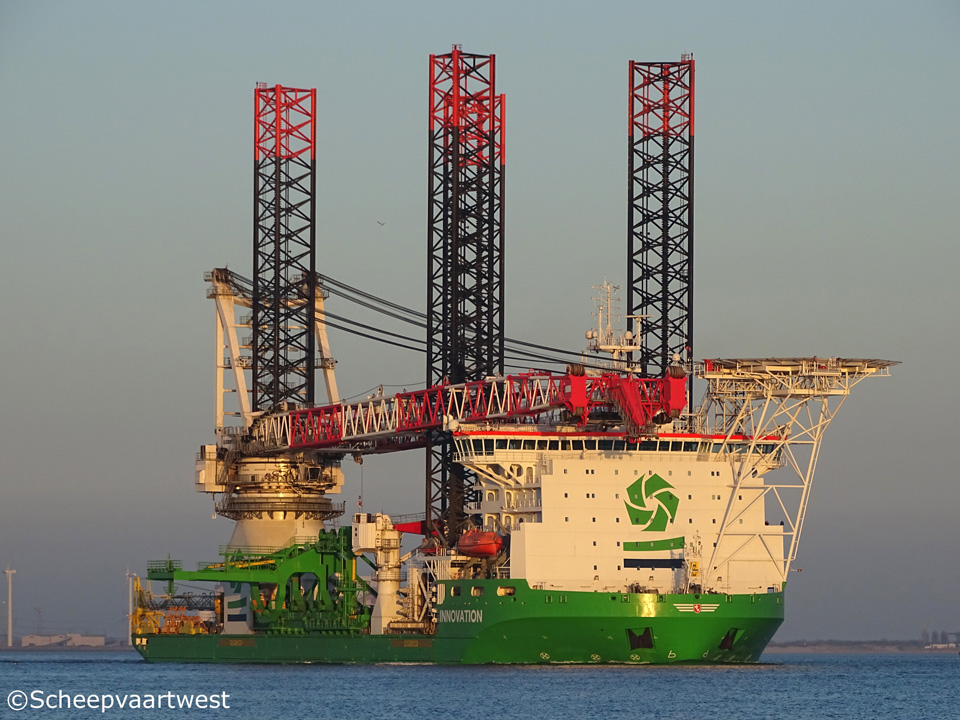

Innovation 09

Westerschelde 02 April 2017

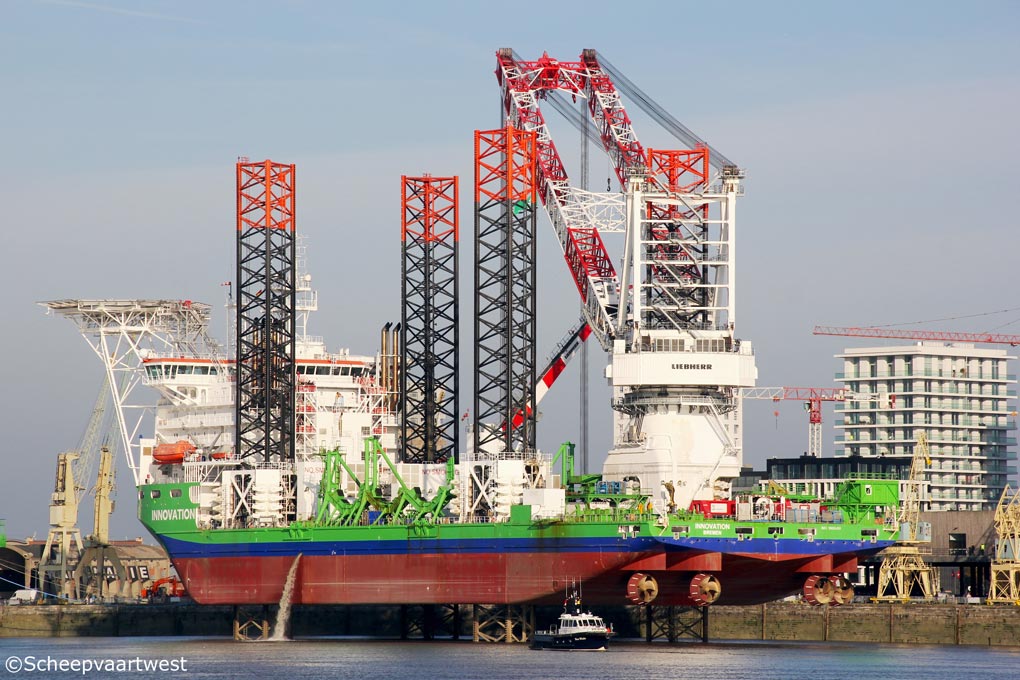

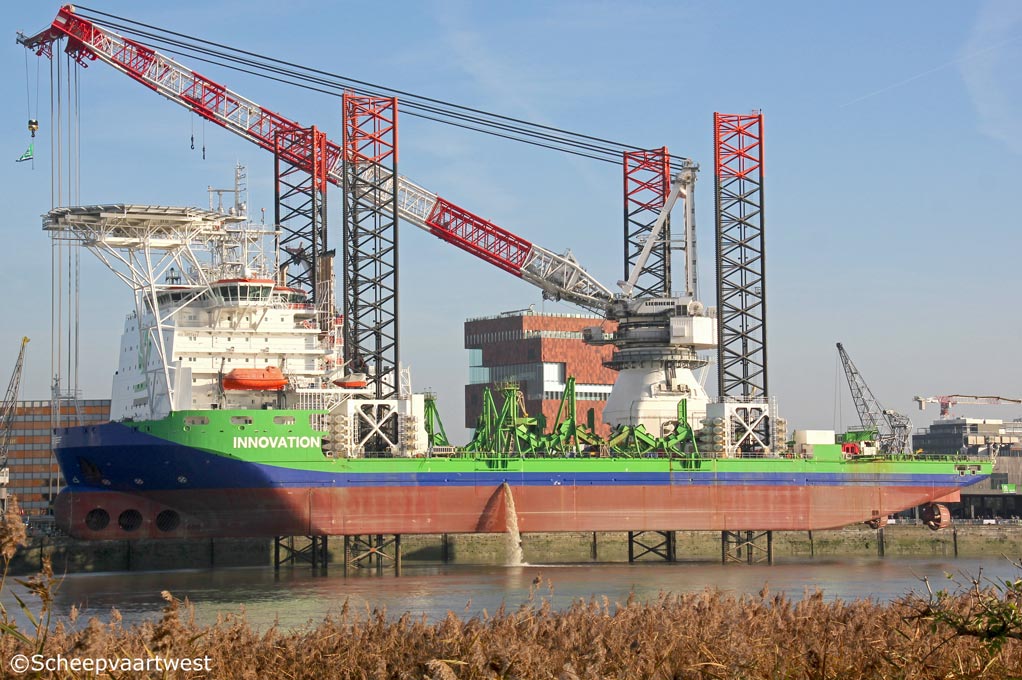

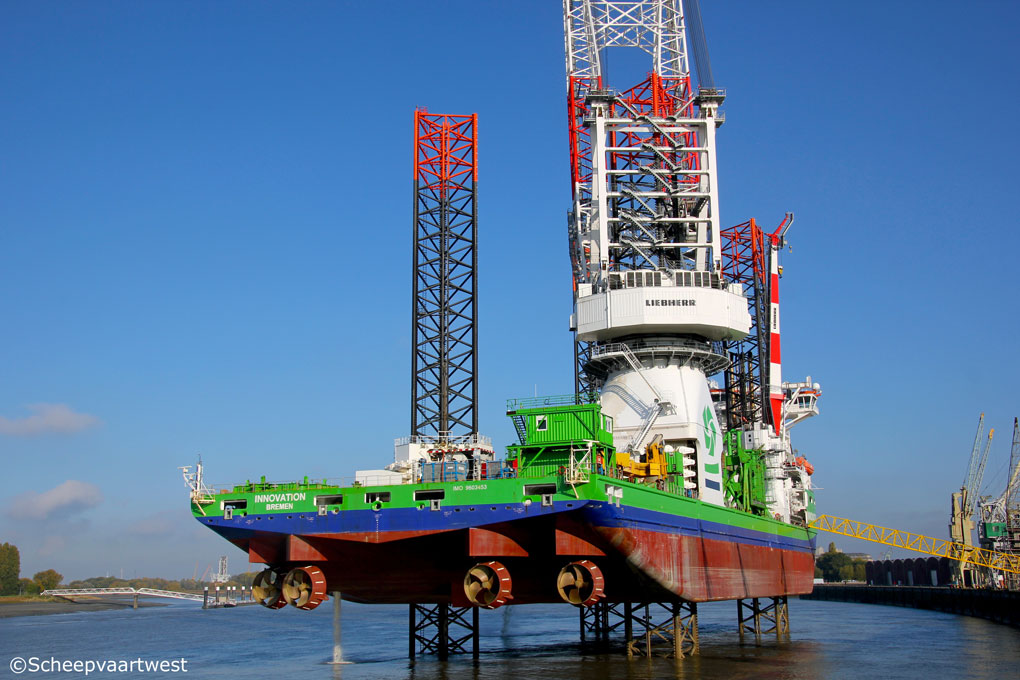

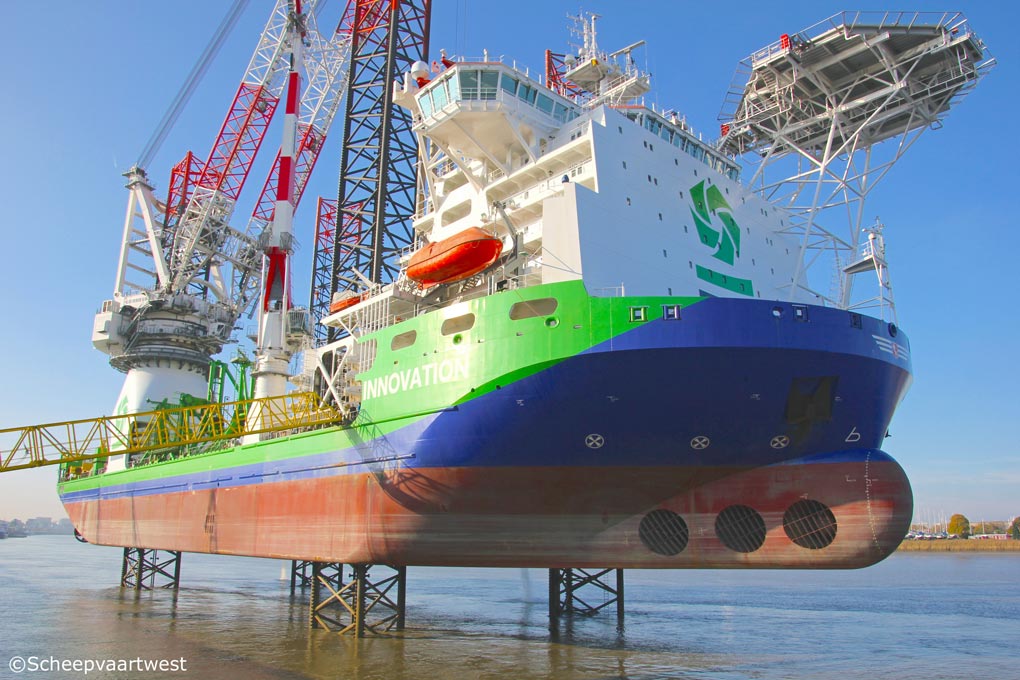

Innovation 02   Innovation 01   Innovation 03   Innovation 04
Antwerpen 29/10/15 Antwerpen 29/10/15 Antwerpen 29/10/15 Antwerpen 29/10/15

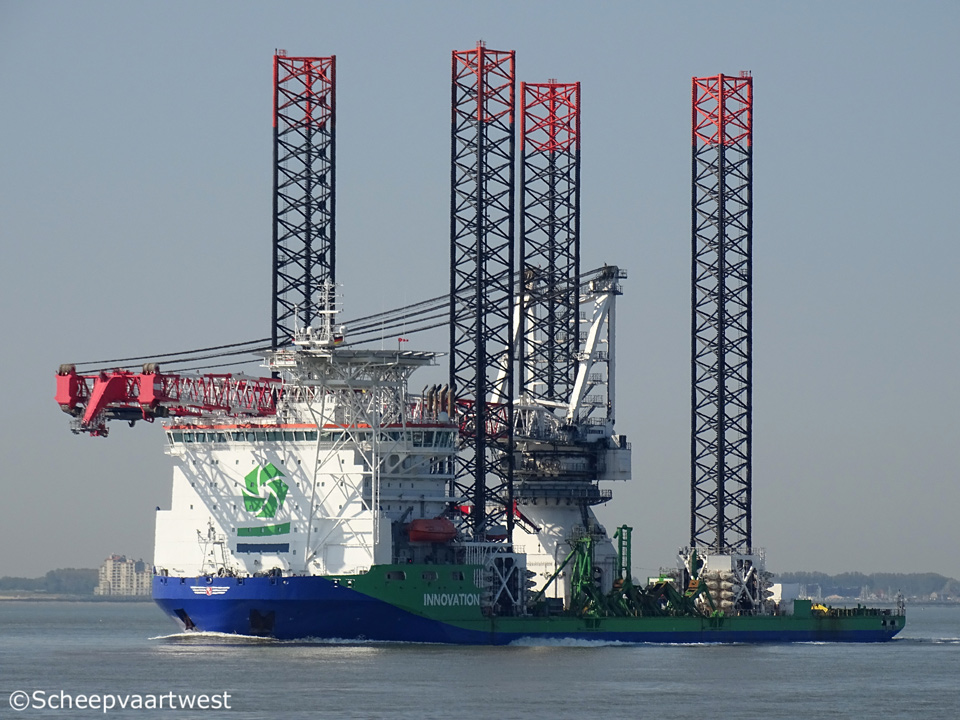

Innovation 11
Westerschelde 08/05/16



Name

INNOVATION

Type

Offshore Construction Jack Up - Construction Maintenance Vessel

Self elevating unit - Offshore service vessel - Special purpose ship - Operation according to operating manual - Strengthened for heavy cargo

IMO-number

9603453

Call sign

DHUR2

Flag

Germany

Port of registry

Bremen

GT

22.313 t

DWT

Summer: 11.166 t

NT

6.694 t

Length

161,37 m overall

146,64 m between perpendiculars

Breadth

54,90 m extreme

42,00 m moulded

Draught

7,33 m

Depth

11,00 m

Speed

12,0 knots

Built

2012

Keel laid

15.11.2010

Launch date

25.06.2012

Date of completion

31.07.2012

Builder

Crist S.A.
Gdansk
Poland

Yard number

142/1

Hull material

Steel

Main engine

4x Electro motors VEM Sachsenwerk, Model DKMAB 7127-6U

Propulsion

4x 3.500 kW Azimuth thrusters

Boilers

2x Auxiliary boiler, oil/gas fired type H4-TFO-008

Generators

6x MaK 9 M32 - 4 stroke 9 cylinder diesel engine coupled with generators each 4.500 kW

1x Mak 9 M20C diesel generatorset

Bow thruster

3x 2.800 kW tunnel thrusters

Jacking system

Type: Electrical Rack & Pinion

Capacity: 31.440 t

Pre load: 4x 18.180 t

Speed: 1,00 m/min

Leg length: 89,00 m

Operational conditions

Pay load (max): 8.000 t

Free deck area: 3.400 m²

Operating draft (max): 7,30 m

Tank capacities

Ballast: 10.853 m³

Anchor equipment

Length: 687,50 m

Diameter: 84 mm

Lifting equipment

1x Auxiliary crane - SWL 40,0 t manriding

Cargo gear

1x Crane - SWL 1.500 t

Accommodation

100 persons

Manager

HGO InfraSea Solutions GmbH & Co. KG
Herrlichkeit 4
28199 Bremen
Germany

Operator group

DEME - Dredging, Environmental & Marine Engineering
Haven 1025
Scheldedijk 30
B-2070 Zwijndrecht
Belgium

Registered owner

Innovation Shipping B.V.

Previous owners

2012 - 2013 HGO InfraSea Solutions GmbH & Co. KG

Latest data adjustment

04 April 2016
