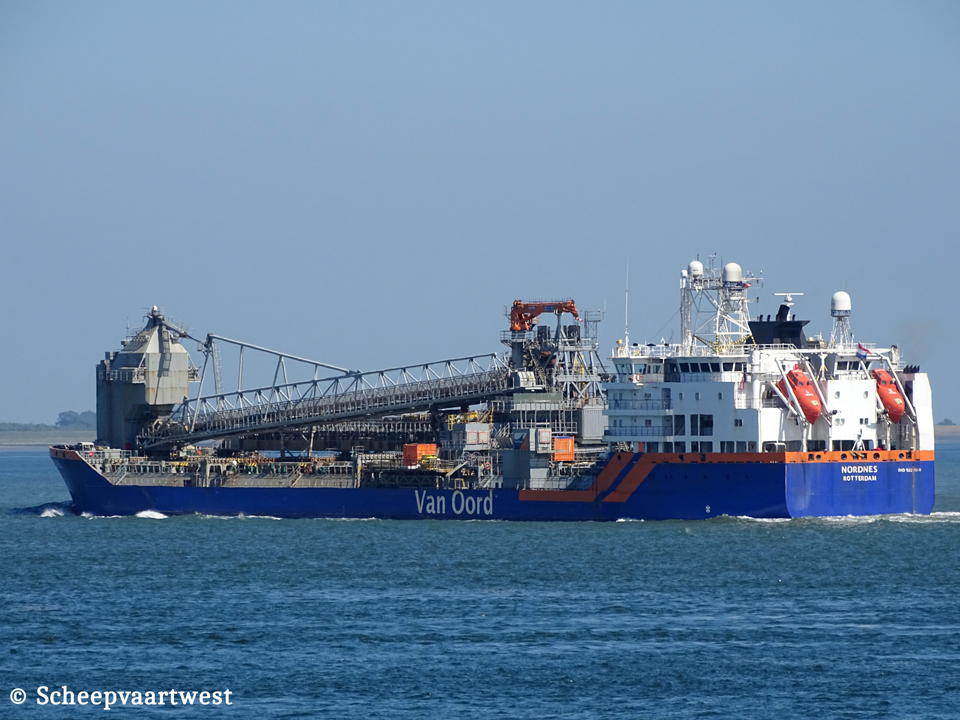

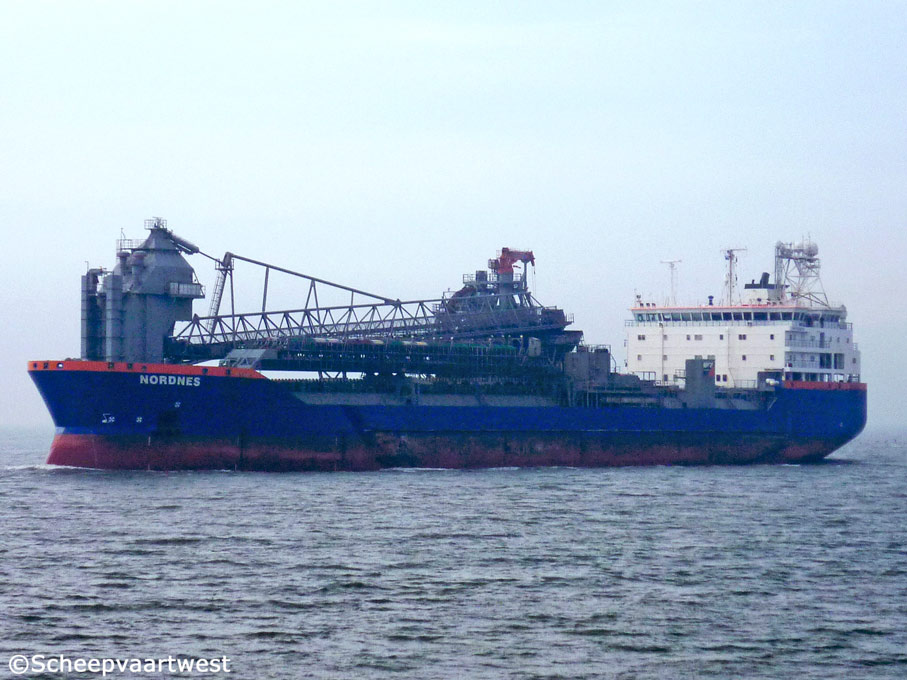

Westerschelde 23 February 2012 |
 |
|
| Westerschelde 28/06/19 | |
|
Name |
NORDNES |
|
Previous names |
2001 - 03/2003 Kvitnes - from Belt Shipping GmbH., St. John’s-Antigua & Barbuda 03/2003 - 07/2005 Rocknes |
|
Type |
Flexible fallpipe vessel - Bulk carrier |
|
IMO-number |
9229910 |
|
Call sign |
PHOG |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
18.226 t |
|
DWT |
25.238 m |
|
NT |
5.467 t |
|
Length |
166,70 overall 161,15 m between perpendiculars |
|
Breadth |
26,23 m overall |
|
Draught |
10,51 m |
|
Freeboard |
3.529 mm |
|
Depth |
14,00 m moulded |
|
Speed |
14,1 knots loaded |
|
Built |
2001 Year of upgrading: 2005 |
|
Keel laid |
04/05/2000 |
|
Launch date |
29/06/2001 |
|
Date of completion |
17/08/2001 |
|
Builder |
JJ Sietas KG Schiffswerft GmbH u. Co. Hamburg Germany |
|
Yard number |
1177 |
|
Hull material |
Steel |
|
Movable bulkhead |
1 |
|
Main engine |
1x MaK 8M43 - 4 stroke 8 cylinder 430 x 610 mm comnustion engine 7.300 kW / 9.918 hp at 514 rpm Built: 2001 Builder: Caterpillar GmbH - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 152 rpm |
|
Boilers |
1x CHR PWT 228,00 m² - 10,0 bar 1x CHO PWT 52,00 m² - 10,0 bar |
|
Shaft generator |
1x 2.250 kVA - 1.800 kW |
|
Generators |
4x Diesel generatorsets each 800 kVA - 640 kW - 870 hp 4x Diesel generatorsets each 2.281 kVA - 1.825 kW - 2.480 hp |
|
Total power installed |
17.636 kW |
|
Hopper volume |
17.744 m³ |
|
Bow thruster |
Tunnel: 2x 1.200 kW 1x 1.500 kW |
|
Retractable thrusters |
2x Azimuth 1.700 kW |
|
Stern thrusters |
1x Tunnel 1.000 kW |
|
Number of holds |
1 |
|
Loading capacity |
24.000 t |
|
Flexible fallpipe system |
Fallpipe diameter: 1,10 m Dumping depth: 1.200 m Dumping capacity up to 2.000 t/h ROV at end of fallpipe 4x 75 kW |
|
Survey equipment |
HIPAP, bathymetric systems, multibeam and mechanical scanning profilers, scanning sonar, underwater cameras and lights & other options |
|
Tank capacities |
Heavy fuel oil: 982 m³ Marine gas oil: 518 m³ Fresh water: 418 m³ |
|
Accommodation |
50 persons |
|
Manager |
Van Oord Ship Management BV Schaardijk 211 3063 NH Rotterdam The Netherlands |
|
Registered owner |
Van Oord Marine Services B.V. Schaardijk 211 3063 NH Rotterdam The Netherlands |
|
Latest data adjustment |
28 December 2022 |
