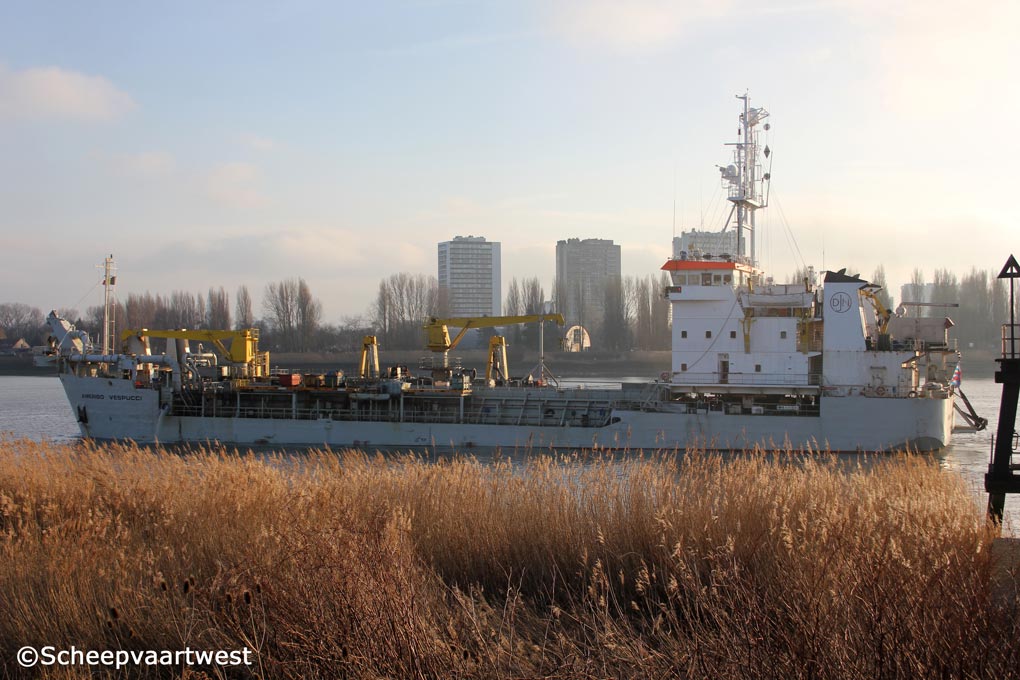

Amerigo Vespucci 01

Antwerpen 10 January 2014

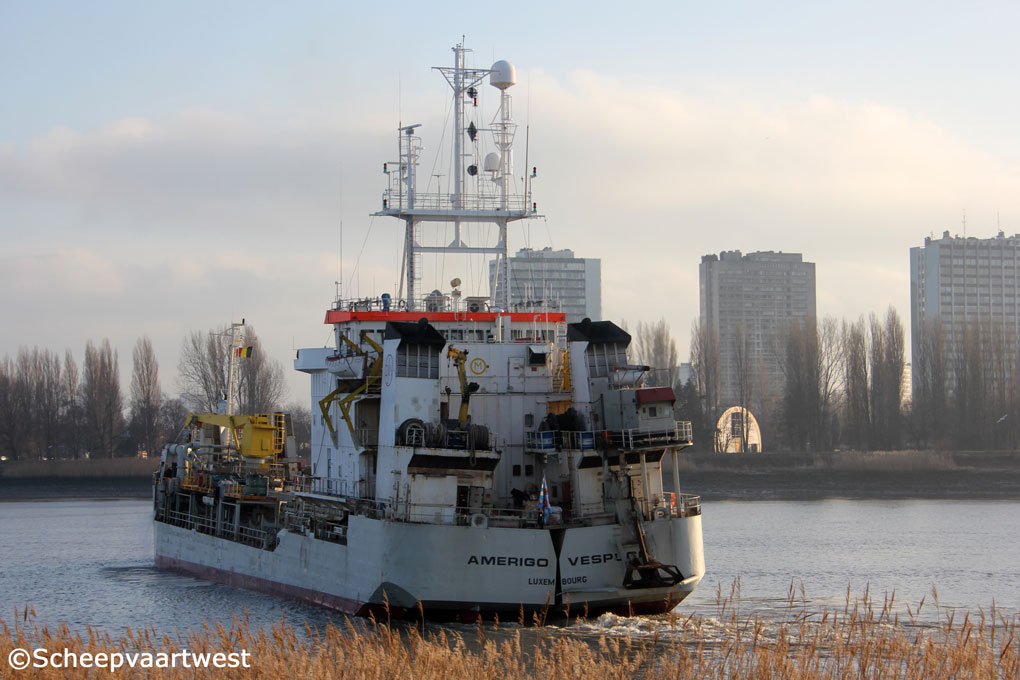

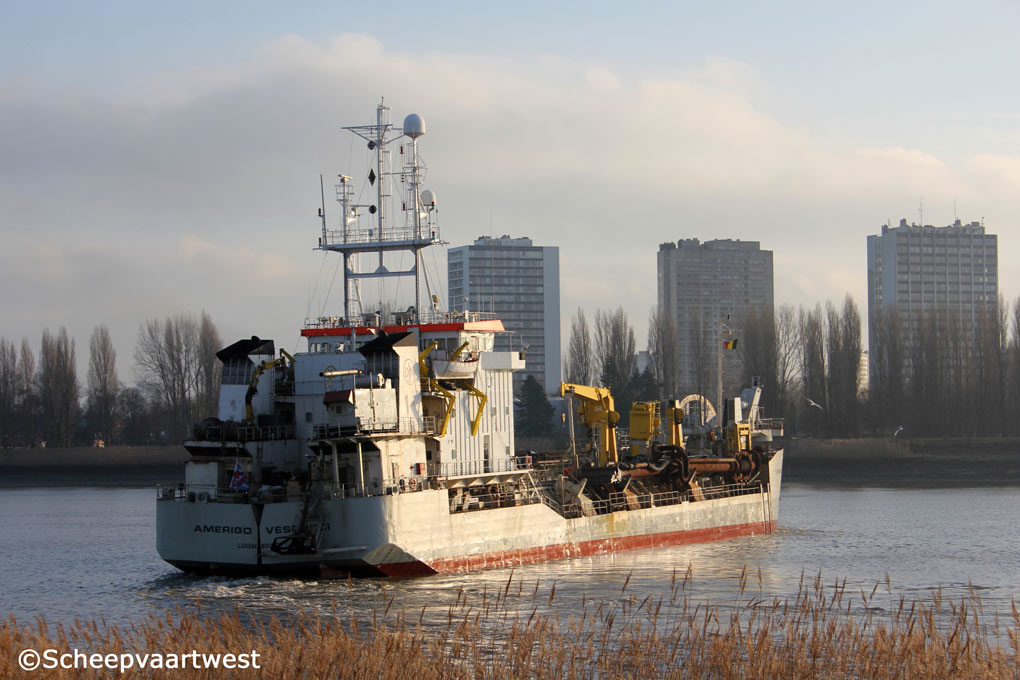

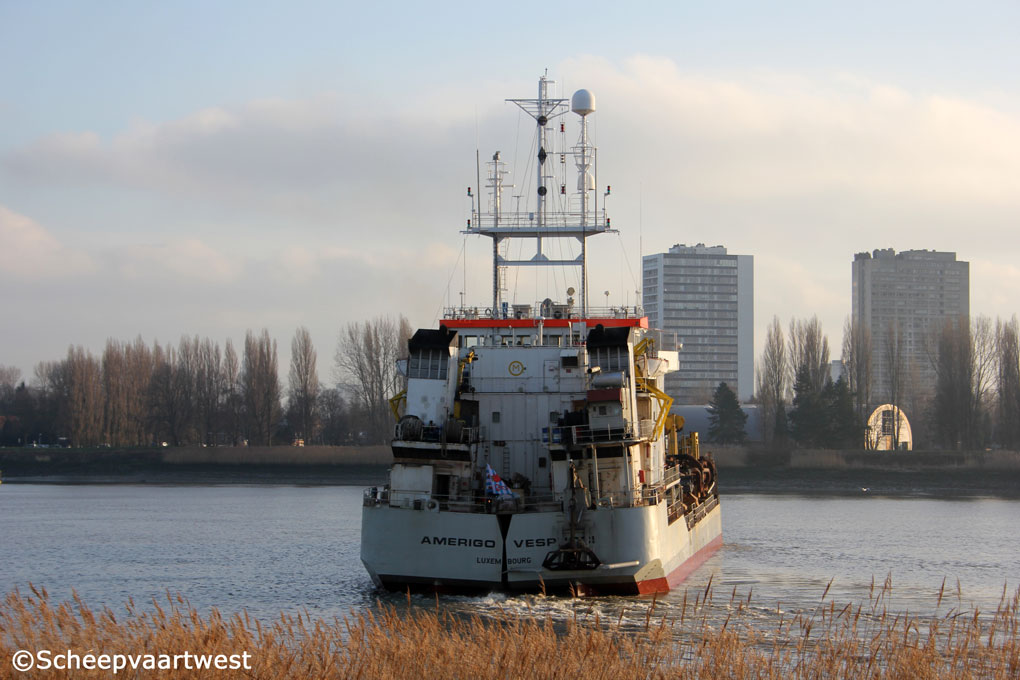

Amerigo Vespucci 02 Amerigo Vespucci 04   Amerigo Vespucci 03
10/01/14   10/01/14   10/01/14



Name

AMERIGO VESPUCCI

Type

Trailing suction hopper dredger

IMO-number

8310645

Call sign

LXSS

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

GT

3.583 t

DWT

Summer: 4.853 t

NT

1.075 t

Length

97,70 m overall

86,62 m between perpendiculars

Breadth

17,15 m

Draught

6,20 m loaded

Freeboard

6.200 mm

Depth

7,01 t

Speed

12,2 knots

Built

1985

Date of completion

06.08.1985

Builder

Scheepswerf Van Langerbrugge
Gent
Belgium

Yard number

9500

Hull material

Steel

Watertight bulkheads

1

Main engine

2x Deutz MWM-SBV 16M628 - 4 stroke 16 cylinder 240 x 280 mm diesel engine - total 3.676 kW / 4.994 hp

Propellers

2x Screw propeller controllable pitch - aft at 176 rpm

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Generators

1x Diesel generatorset 478 kVA - 382 kW - 246 hp
2x Diesel generatorsets each 478 kVA - 382 kW - 735 hp

Total installed power

5.190 kW

Number of holds

1

Hopper capacity

3.500 m³

Loading capacity

4.800 m³

Suction pipe

1x 900 mm

Dredging depth

Normal: 29,50 m

Extended: 36,50 m

Pump power

Trailing: 1.240 kW

Discharging: 3.000 kW

Fuel capacity

515 m³

Accommodation

21

Manager

Jan De Nul NV
Tragel 60
9308 Hofstade-Aalst
Belgium

Registered owner

European Dredging Company SA
Luxembourg

G.D. Luxembourg

Last data update

07 February 2014
