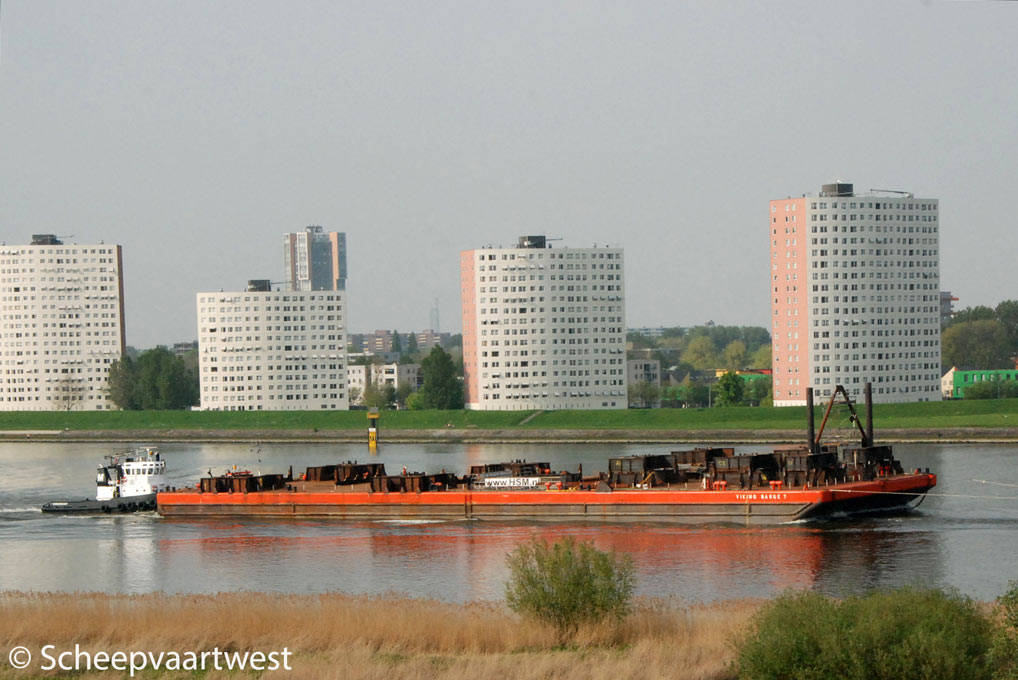

| Spijkenisse, The Netherlands 21 April 2011 |
|
Name |
VIKING BARGE 7 |
|
Type |
Pontoon |
|
IMO-number |
9204582 |
|
Call sign |
LK6683 |
|
Flag |
Norway |
|
GT |
4.067 t |
|
DWT |
Summer: 9.750 t |
|
NT |
1.219 t |
|
Light weight |
1.850 t |
|
Length |
91,44 m overall |
|
Breadth |
27,43 m moulded |
|
Light draft |
0,870 m mid ship |
|
Summer load line |
4,842 m |
|
Depth |
6,09 m |
|
Built |
1999 |
|
Date of completion |
08.1999 |
|
Builder |
Sevmash |
|
Yard number |
93071 |
|
Hull material |
Steel |
|
Hull type |
Double bottom in pump room |
|
Bulkheads |
3x Longitudinal 4x Transverse + pump room bulkhead |
|
Generators |
2x Busck 10 kW / 3x 400 Volt - 50 Hz |
|
Batteries |
Lightening: 2x 24 Volt - 115 Ah |
|
Deck area |
2.508 m² / 27.000 ft² |
|
Uniform deck load |
25 t/m² |
|
Tank arrangement |
20 ballast tanks served from one pump room |
|
Pump capacity |
2x 800 m³/h |
|
Engines / Pumps |
2x Mitsubishi diesels driving 72 kW at 1.800 rpm / 2 ballast pumps Pumpteknik centrifugal pumps 800 m³/h + 1 Portable electric driven submersible pump |
|
Anchor winch |
Brattvaag/Hagglund hydraulic winch 18 t pull / 1.000 meter wire 32 mm |
|
Retriever winch |
5,0 t manual operated |
|
Towing arrangement |
Smith’s Bracket towing arrangement for main and emergency towing - 100 t SWL |
|
Mooring ropes |
Four mooring lines stored in a container placed aft on deck |
|
Anchor equipment |
Type Stockless weight 6.300 kg |
|
Manager |
Ugland Marine Services |
|
Owner |
Ugland Marine Services |
|
Last update |
26.02.2013 |
