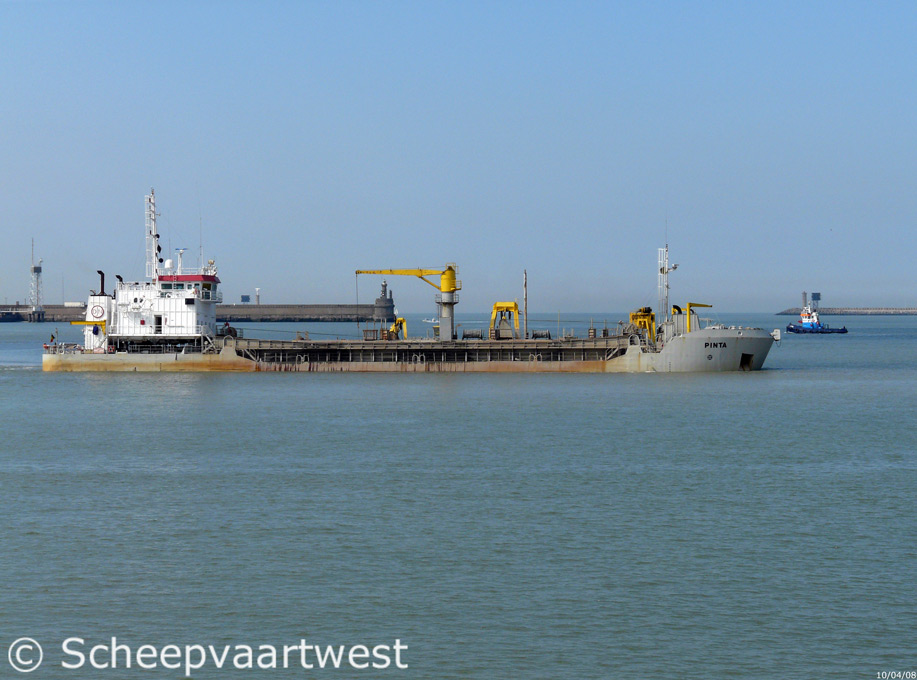

Pinta 03
Zeebrugge 10 April 2008

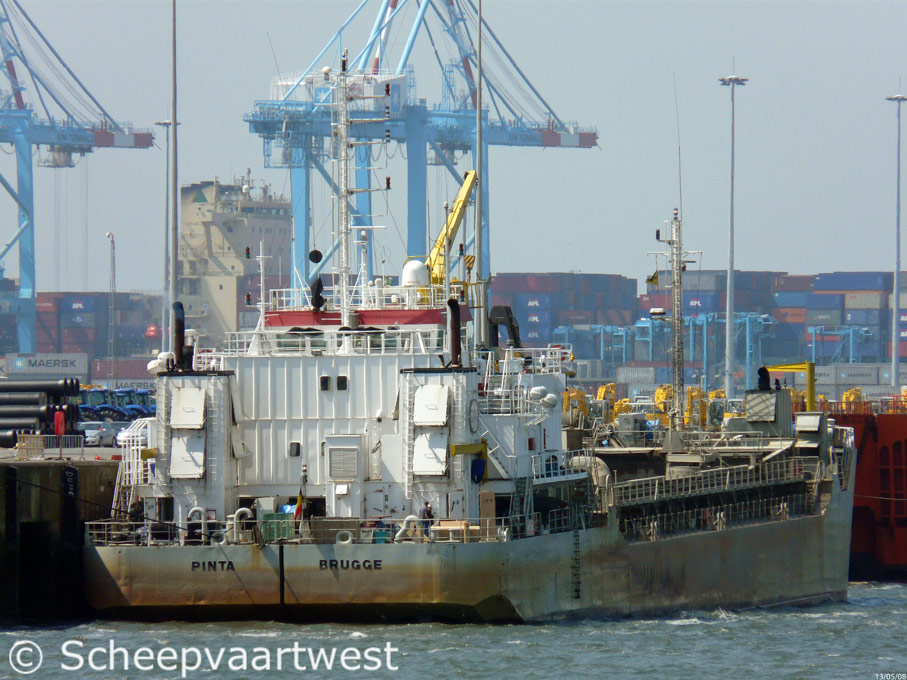

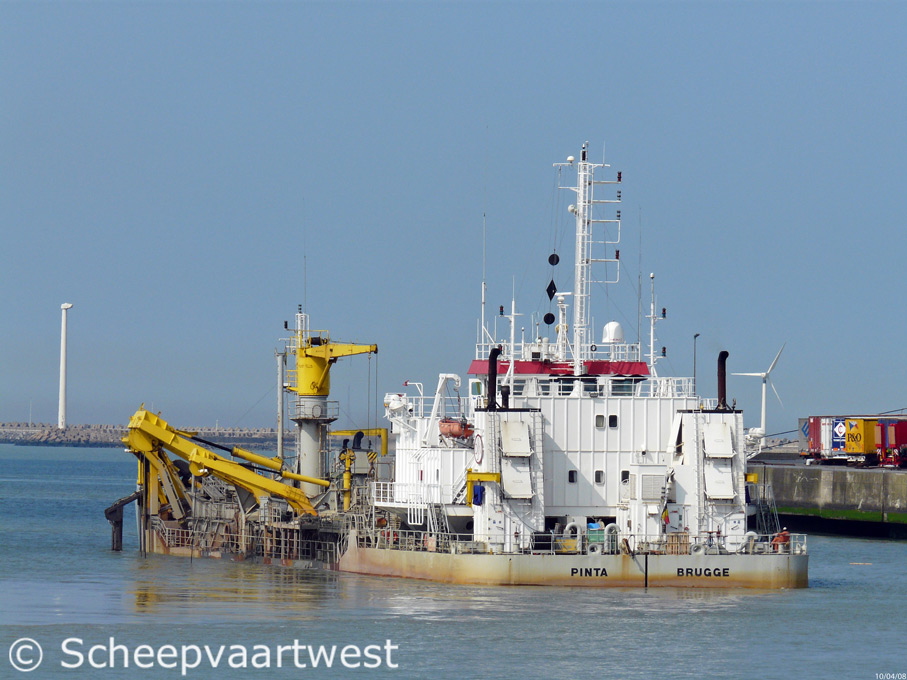

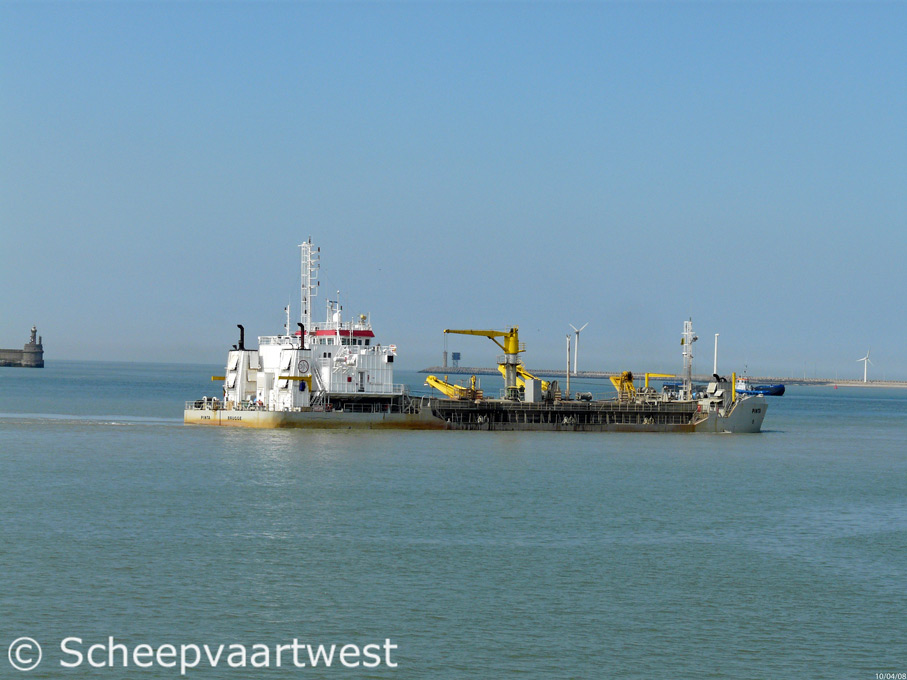

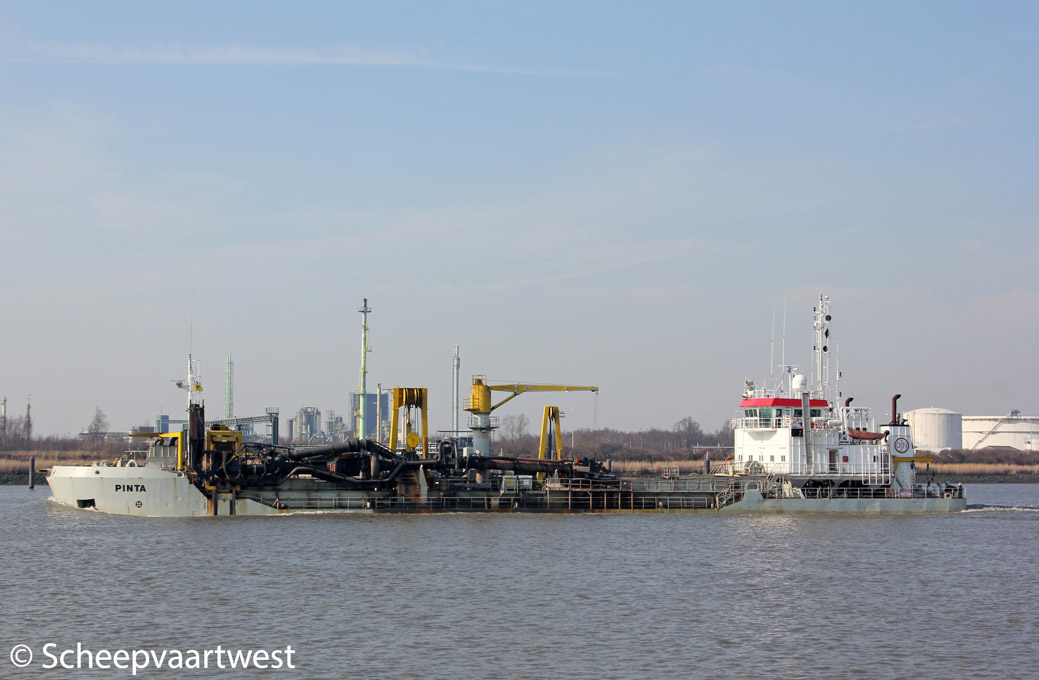

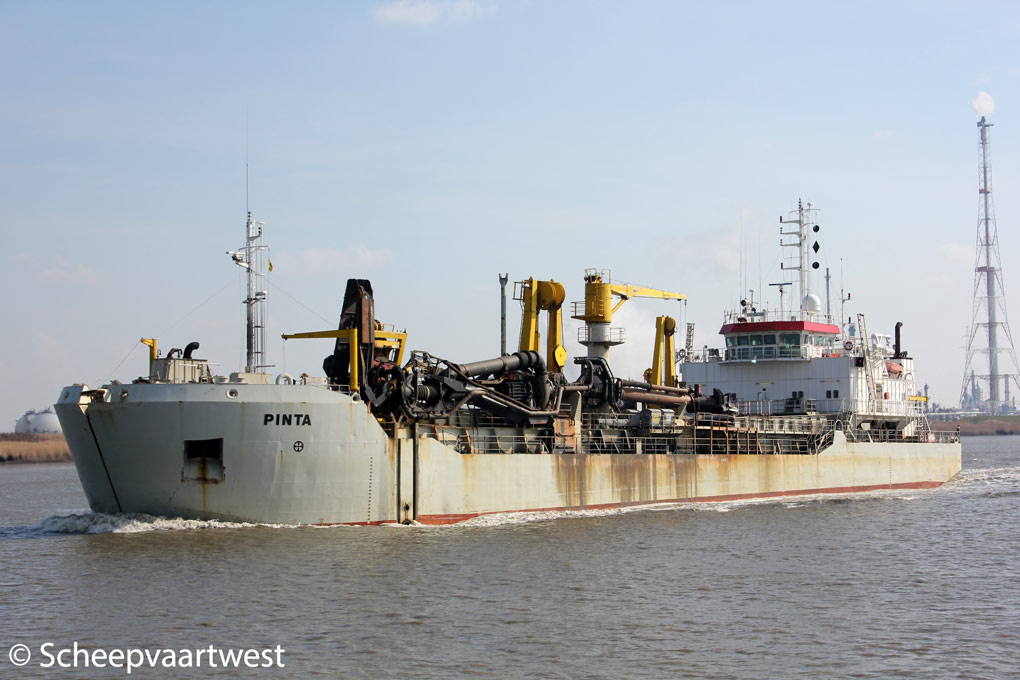

Pinta 05   Pinta 10   Pinta 12   Pinta 18   Pinta 16
Zeebrugge 10/04/08 Zeebrugge 10/04/08 Zeebrugge 13/05/08 Antwerpen 01/04/13   Antwerpen 01/04/13


Name

PINTA

Type

Trailing suction hopper dredger
Split hopper dredger
Self propelled seagoing split hopper barges

IMO-number

9083249

Registration number

01 00119 1996

Call sign

ORWK

Flag

Belgium

Port of registry

Brugge

GT

3.258 t

DWT

4.565 t

NT

997 t

Length

89,65 m overall
84,70 m between perpendiculars

Breadth

18,46 m overall

Draught

Summer: 5,40 m

Freeboard

Summer: 1.284 mm

Depth

6,05 m

Speed

9,6 knots

Purpose

Dredging

Built

1995

Builder

Damen Shipyard
Gorinchem
The Netherlands

Yard number

475

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1

Main engine

2x ABC - 4 stroke 6 cylinder 256 x 310 mm internal combustion engine each 1.325 kW total: 2.650 kW / 3.600 hp at 1.000 rpm
Built: 1994
Builder: Anglo Belgian Corporation N.V.
Wiedauwkaai 43
9000 Gent
Belgium

Propelling system

2x Screw propeller solid at 279 rpm

Electrical installation

Power voltage: 380 V
Lighting voltage: 220 V
Frequency: 50 Hz

Generators

3x Diesel generatorsets each 283 kVA - 226 kW

Total installed power

5.551 kW

Hopper capacity

3.400 m³

Suction pipe

1x 900 mm

Dredging depth

27,50 m

Maximum dredging depth

31,00 m

Pump power

Trailing: 1.250 kW

Fuel capacity

391 m³

Accommodation for

13 persons

Manager

Jan De Nul
Vlaamse Baggermaatschappij N.V.
Tragel 60
9308 Hofstade-Aalst
Belgium

Owner

2014 B.V. Dredging and Contracting Rotterdam
The netherlands

Previous owner

Jan De Nul
Vlaamse Baggermaatschappij N.V.
Tragel 60
9308 Hofstade-Aalst
Belgium

Remarks

Converted from a hopper barge to a trailing suction hopper dredger by IHC Holland in 1996

Latest data adjustment

19 January 2015
