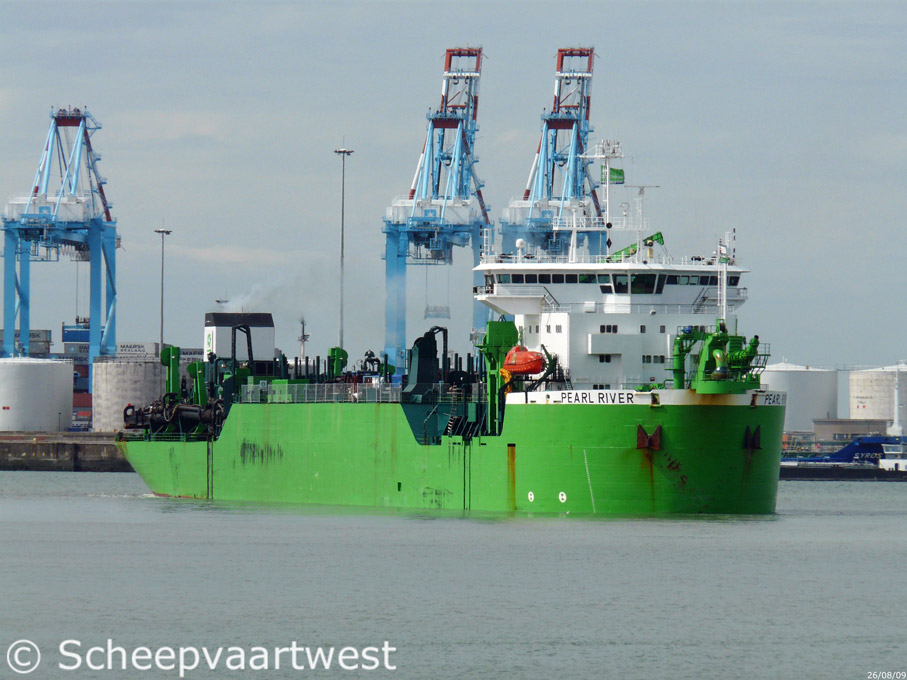

Pearl River 12
Zeebrugge 26 August 2009

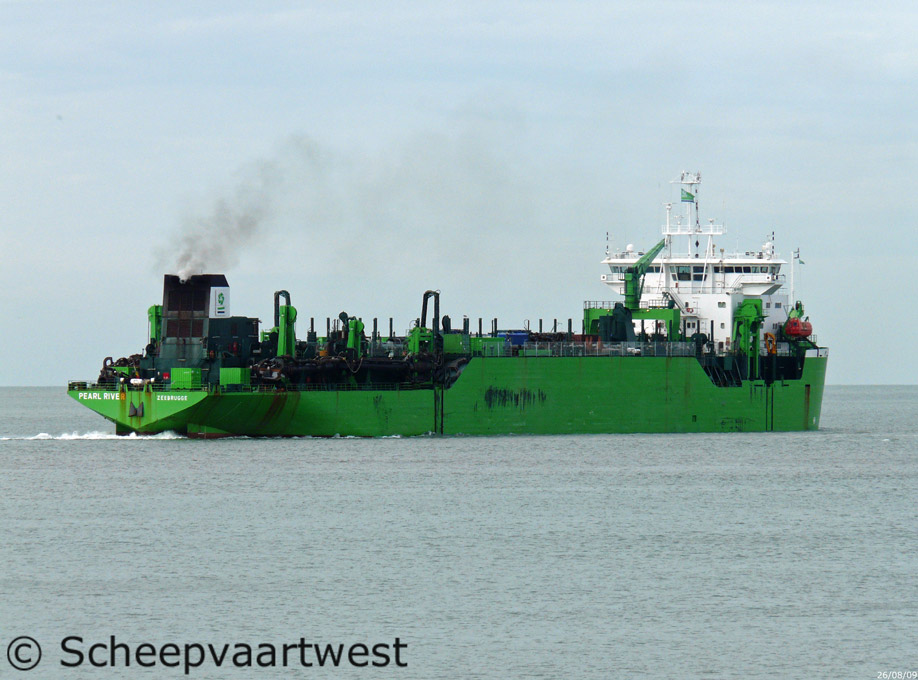

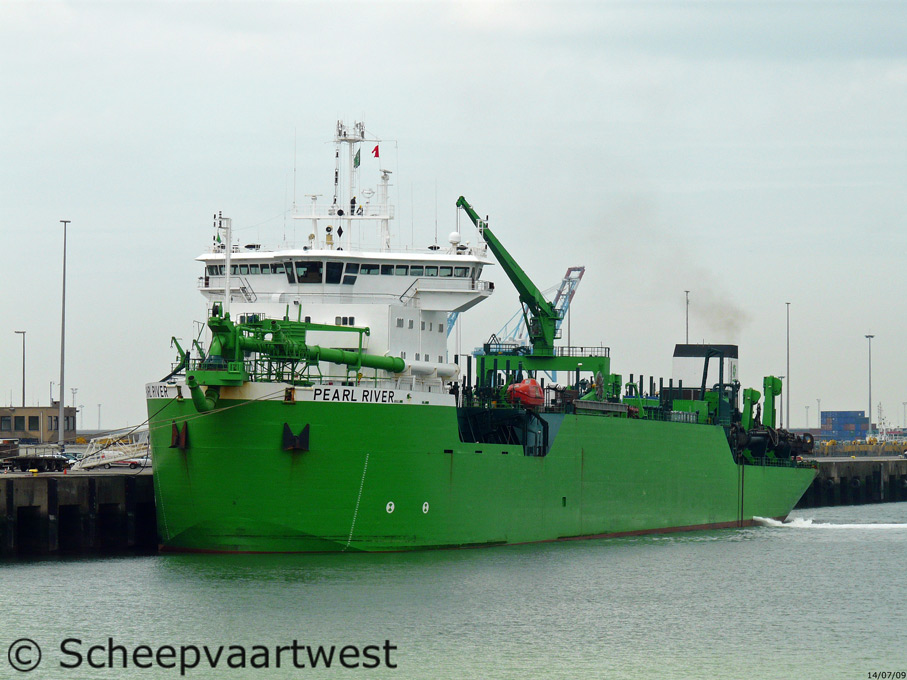

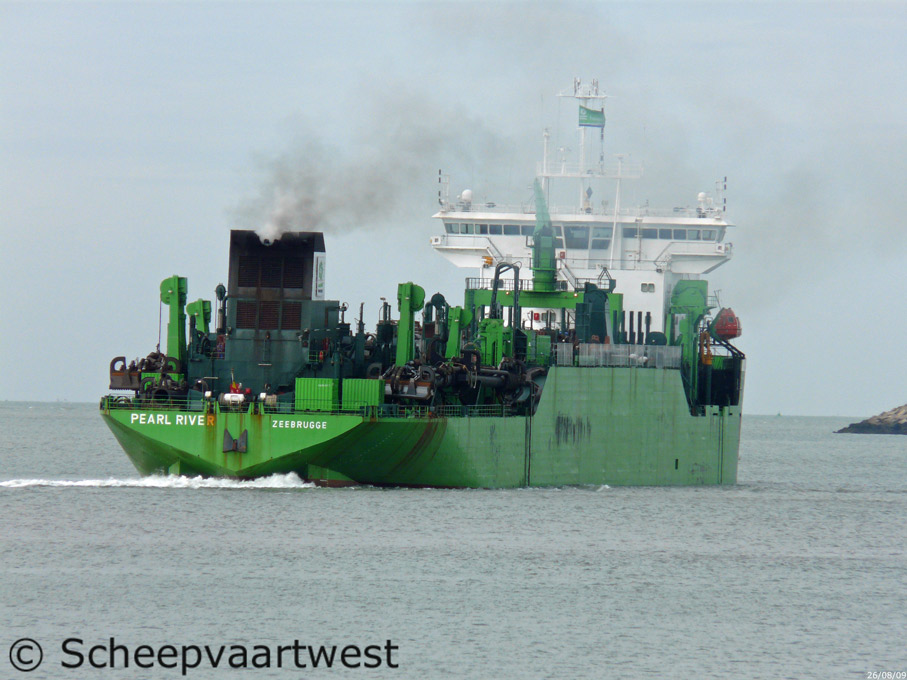

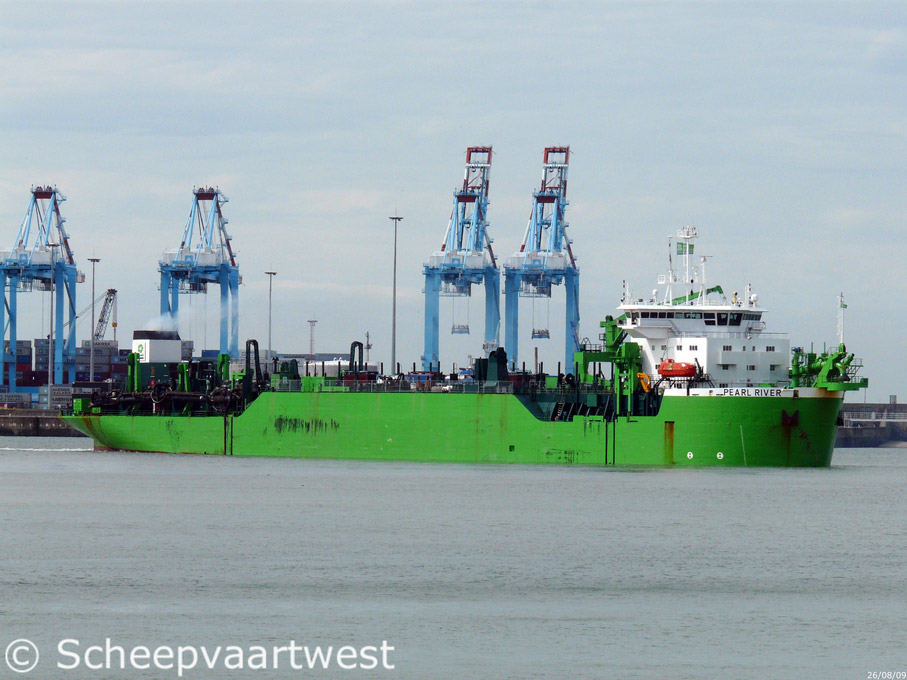

Pearl River 13   Pearl River 16   Pearl River 17   Pearl River 05
26/08/09   26/08/09   26/08/09   14/07/09

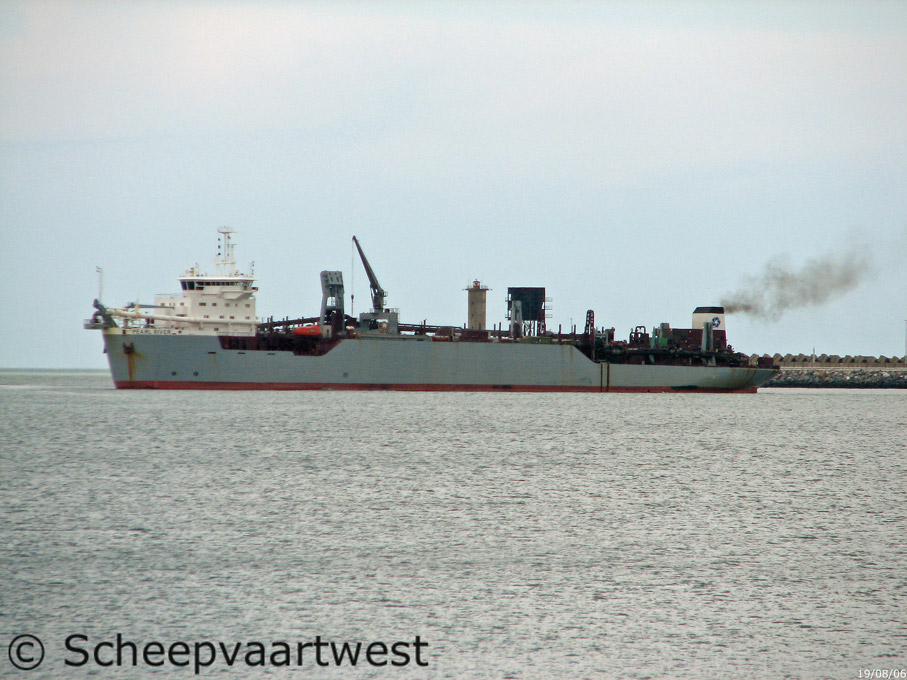

Pearl River 01
19/08/06



Name

PEARL RIVER

Type

Trailing suction hopper dredger

IMO-number

9051014

Call sign

ORWP

Flag

Belgium

Previous flags

10.12.1994 Belgium

22.06.1995 Malta

06.12.2004 Cyprus

29.11.2005 Hong Kong (China)

Port of registry

Zeebrugge

GT

20.881 t

DWT

Summer: 17.947 t

NT

6.267 t

Length

182,22 m overall

173,66 m between perpendiculars

Breadth

28,06 m over all

Max. draught loaded

10,77 m

Freeboard

Summer: 3.432 mm

Depth

11,90 m moulded

Speed

15,5 knots

Built

1994

Date of completion

27.09.1994

Builder

IHC Holland NV Engineering
Kinderdijk
The Netherlands

Yard number

1206

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

2

Main engine

2x Sulzer - 4 stroke 12 cylinder 400 x 560 mm internal combustion engine - 17.280 kW / 23.478 hp at 510 rpm

Built: 1993

Builder: Zgoda Swietoch, Lowice - Poland

Electrical propulsion gen.

2x 2.800 kW

Power

Total installed: 19.061 kW

Sb (dredging): 3.000 kW

Ps (dredging): 3.000 kW

Propelling system

2x Screw propeller controllable pitch at 306 rpm

Boilers

1x CHM 60,00 m² - 13,0 bar
2x CHR 164,00 m² - 13,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

2x 3.500 kVA

Generators

2x Diesel generatorsets each 1.067 kVA - 853,60 kW - 1.210 hp

Emergency generator

1x diesel generatorset 270 kW

Bow thruster

2x 750 kW

Power shore delivery

8.400 - 12.160 kW

Hopper capacity

24.146 m³

Loading capacity

35.025 t

Suction pipes

2x 1.200 mm diameter

Discharge pipe

1.000 mm diameter

Dredging depth normal

30,00 m

Dredging depth extended

60,00 m - 120,00 m

Lifting equipment

Electro-hydraulic gantry crane - SWL 32 t

Fuel capacity

2.531 m³

Accommodation

30 persons

Group

DEME N.V.
Dredging Environmental & Marine Engineering
Scheldedijk 30
Haven 1025
2070 Zwijndrecht

Belgium

Manager

Dredging International
Zwijndrecht
Belgium

Operator

Baggerwerken Decloedt & Zoon N.V.
Slijkensesteenweg 2
8400 Oostende
Belgium

Owner

Tideway B.V.
Topaasstraat 64
4817 HW Breda
The Netherlands

History

Lengthened by Pan-United Shipyard Pte. Ltd. Singapore in 2002

Note

This hopper dredger can be equipped with the D.R.A.C.U.L.A. System
