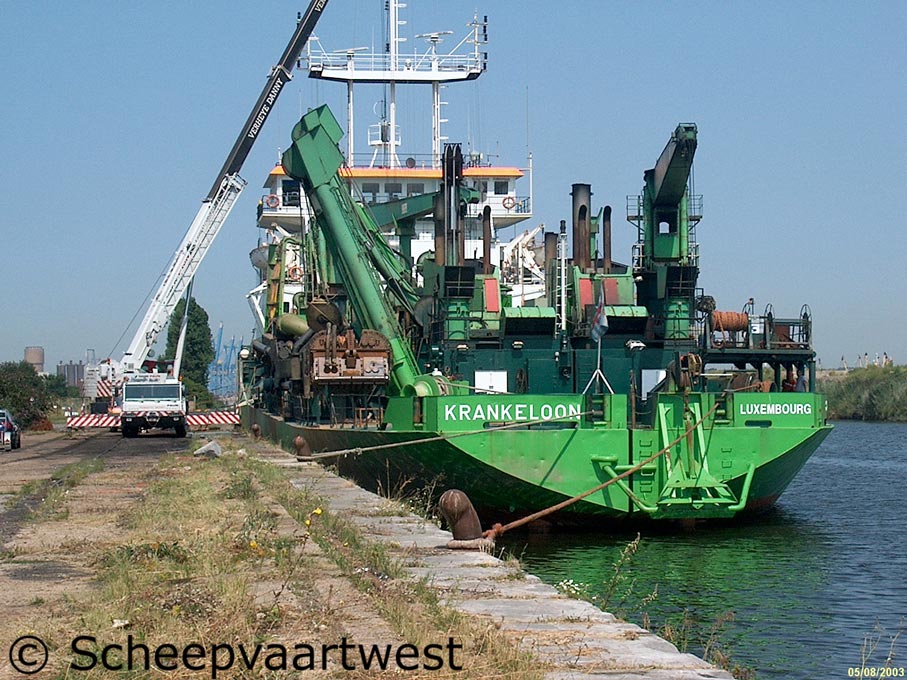

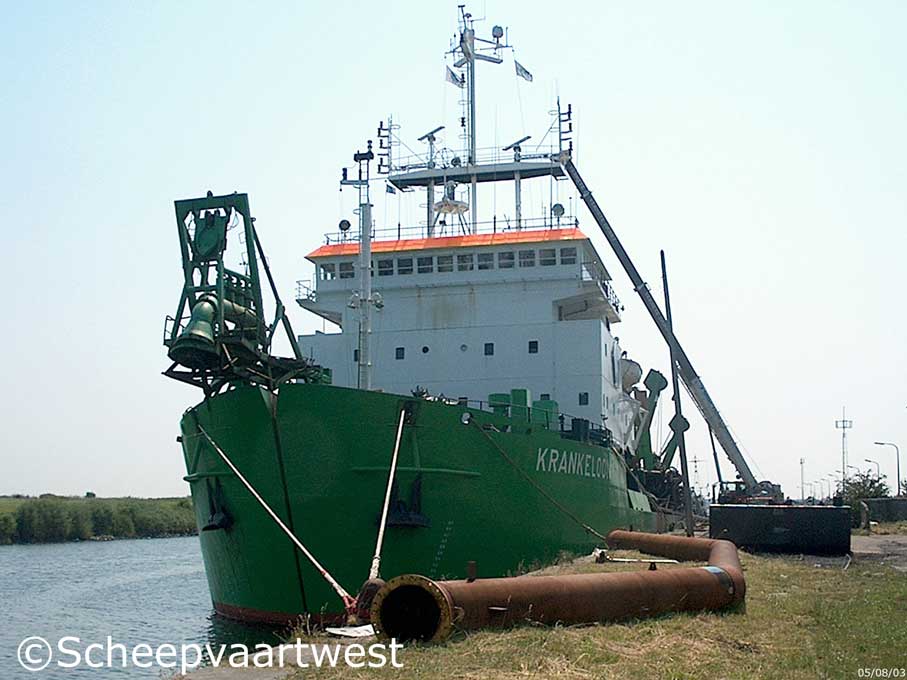

| Zeebrugge 05 August 2003 |
 |
| Zeebrugge 05/08/03 |
|
Name |
KRANKELOON |
|
Type |
Split trailing suction hopper dredger |
|
IMO-number |
7817593 |
|
Call sign |
ORTJ |
|
Flag |
Belgium |
|
Previous flag |
Grand Duchy of Luxembourg |
|
Port of registry |
Antwerpen |
|
Previous port of registry |
Luxembourg |
|
GT |
3.678 t |
|
DWT |
5.200 t |
|
NT |
1.130 t |
|
Length |
94,19 m overall |
|
Breadth |
17,36 m |
|
Draught |
5,63 m Max.: 6,49 m |
|
Depth |
7,31 m moulded |
|
Speed |
Loaded: 12,5 knots |
|
Built |
1980 Rebuild: 2006 |
|
Launch date |
30.06.1980 |
|
Date of completion |
08.01.1981 |
|
Builder |
Beliard Murdoch N.V. Belgium |
|
Yard number |
0232 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
2x Bolnes - 2 stroke 16 cylinder 190 x 350 mm internal combustion engine - each 2.400 hp / 1.767 kW totalling 3.532 kW / 4.800 hp at 600 rpm power Built: 1979 Builder: Boles, Krimpen - The Netherlands |
|
Electrical propulsion gen. |
1x 1.140 kW |
|
Propellers |
2x Screw propeller solid at 210 rpm |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V |
|
Generators |
2x diesel generatorsets each 360 kVA - 288 kW - 510 hp |
|
Bow thruster |
1x Electrically driven bow thruster is fitted for manoeuvring - 900 hp |
|
Total installed power |
6.570 kW |
|
On pumps trailing |
883 kW |
|
Shore delivery |
1.765 kW |
|
Hopper capacity |
2.702 m³ |
|
Loading capacity |
5.455 t |
|
Suction pipes |
1x 700 mm port side |
|
Discharge pipe |
1x 650 mm |
|
Dredging depth |
Max.: 35,00 m |
|
Underwater sand pump |
1.200 hp electric motor |
|
Lifting equipment |
2x Cranes - SWL 3,0 t each 1x Crane - SWL 10,0 t |
|
Fuel capacity |
423 m³ |
|
Accommodation |
Quarters for a crew of 18 are provided |
|
Owner |
N.V. Baggerwerken Decloedt & Zn |
|
Group |
DEME - Dredging, Environmental & Marine Engineering |
