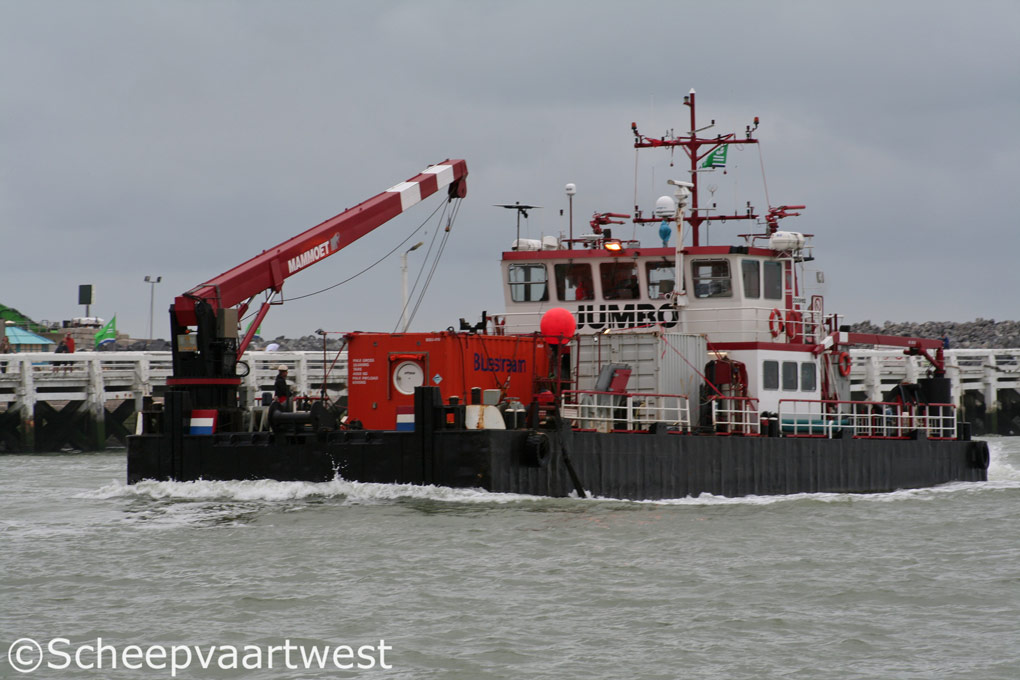

Jumbo 01
Oostende, Belgium 26 July 2011

Jumbo 02
Oostende 26/07/11


Name

JUMBO

Type

Multi purpose vessel - Jumbo

IMO-number

8951906

ENI-number

2006982

Call sign

PFFL

Flag

The Netherlands

Port of registry

Lelystad

GT

232 t

NT

69 t

Length

31,80 m overall

30,27 m registered

Breadth

9,50 m overall

14,60 m incl. side pontoons

Draught

Max.: 2,30 m

Min.: 1,80 m

Height

3,00 m

View level height

4,00 m

Depth

2,90 m

Speed

7,0 knots

Built

1971

Ship converted: 09.1990

Launch date

09.1970

Builder

Ceuvel Volharding
Amsterdam
The Netherlands

Hull material

Shipbuilding steel (standard)

Watertight bulkheads

3

Continuous decks

1

Main engine

1x Cummins KTA 19 G - 4 stroke 6 cylinder 159 x 159 mm diesel engine - 371 kW / 550 hp at 1.800 rpm

Transmission: Main propulsion acts through gear on the propellershaft

Starter type: Electrical starter

Year of manufacture: 1991

Manufacturer: Cummins Engine Company, Inc.
Columbus
United States of America

Propeller

1x Rudder propeller – aft at 452 rpm

Boiler

1x Water heater, oil fired – 1,0 bar

Year of manufacture: 1990

Electric installations

1x Plant 380/220 V - 250 kVA

1x Plant 380/220 V - 250 kVA

1x Plant 24/220 V - 1 kW

1x Plant 380 V - 38 kVA

Generators

2x Main diesel generatorsets each 250 kVA - 220/380 V

1x Harbour/auxiliary diesel generatorset 25 kVA

1x Generator 1 kW

Bow thruster

1x Bow thruster SNIJDER HASSELT- 150 hp, forward

Free decks pace

120 m²

Hydraulic crane

1x Heila HMR 150/15F marine crane

Capacity:

15 t @ 4,50 m

12,5 t @ 11,00 m

9 t @ 15,00m

Abaft:

Hydraulic crane: 1 t @ 7,00 m

Spud piles

2x spudcans of 12,00 m length each, diameter 0,60 m. The spudcan at the back can be turned over on deck

Control from bridge and deck

Ballast pump

BBA 300 m³/h type B 156 serie B.L.

Salvage pump

Mobile pumps – capacity upto 1.500 m³/h

Anchor winches

1x Central aft anchor mooring winch – 4 drums with 15 t rope capacity

2x Forward anchor mooring winches – 5 t rope capacity

Control from bridge and deck

Fire-extinguish installation

Fire extinguish-pump 360m³/h - 10,0 bar.

2x Water / foammonitors 300 l/min each - reach 72,00 m

Fire-hose connection on deck to be operated by hand

3.000 l foam-liquid

4x compressed air-masks

Accommodation

2x Cabins 1 person

1x Cabin 2 persons

1x Cabin 4 persons

Shower and toilet

Owner

Mammoet Maritime B.V.
Karel Doormanweg 47, Haven 580
3115 JD Schiedam
The Netherlands

Special annotations

Mooring post forward + aft
