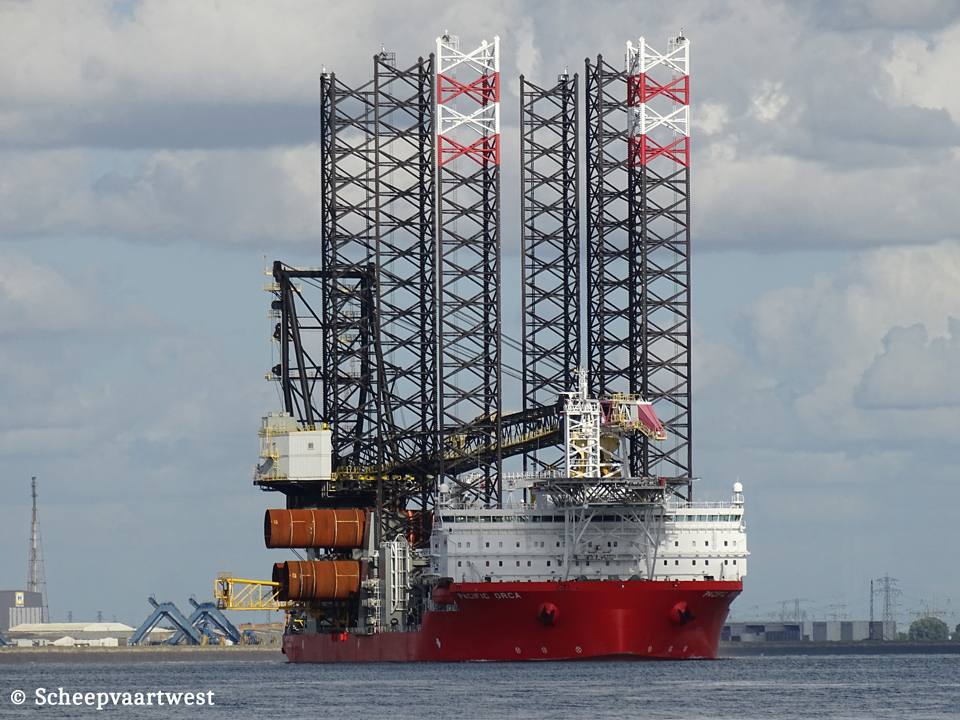

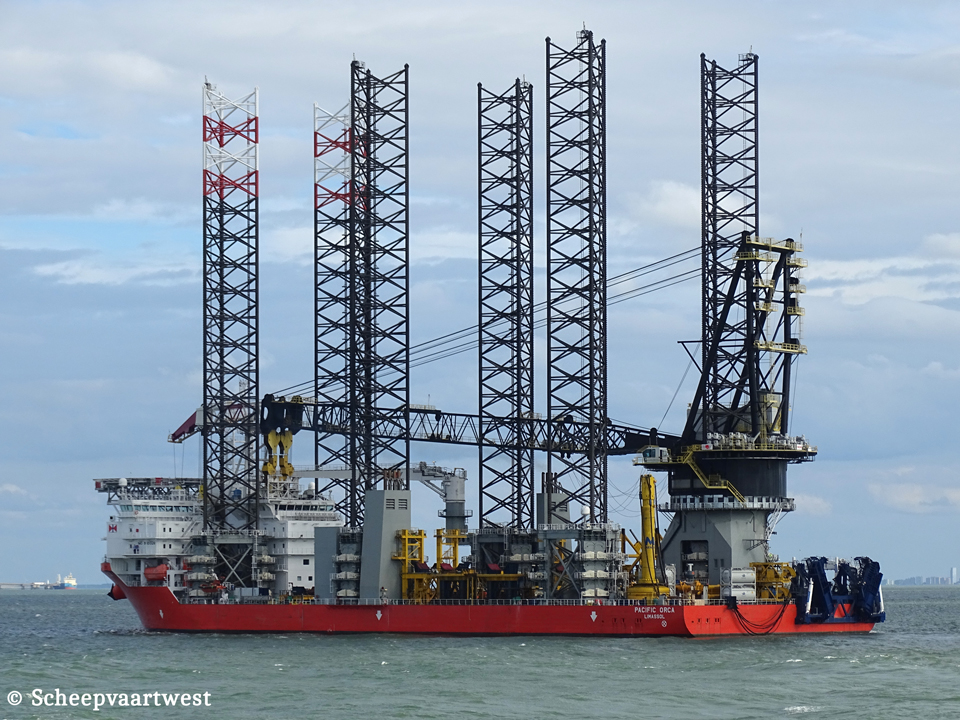

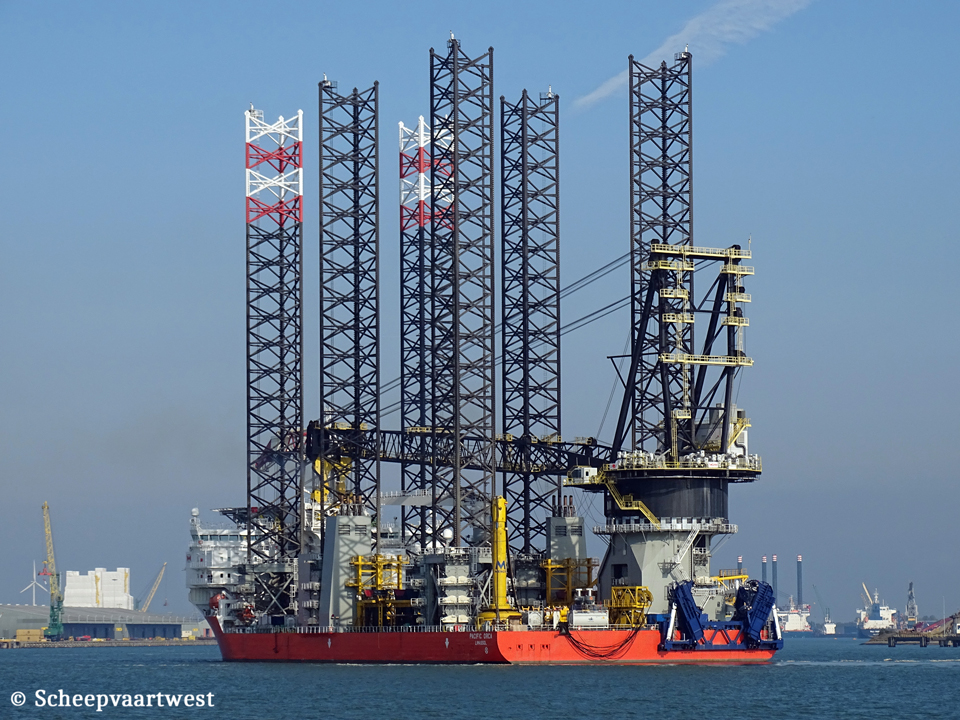

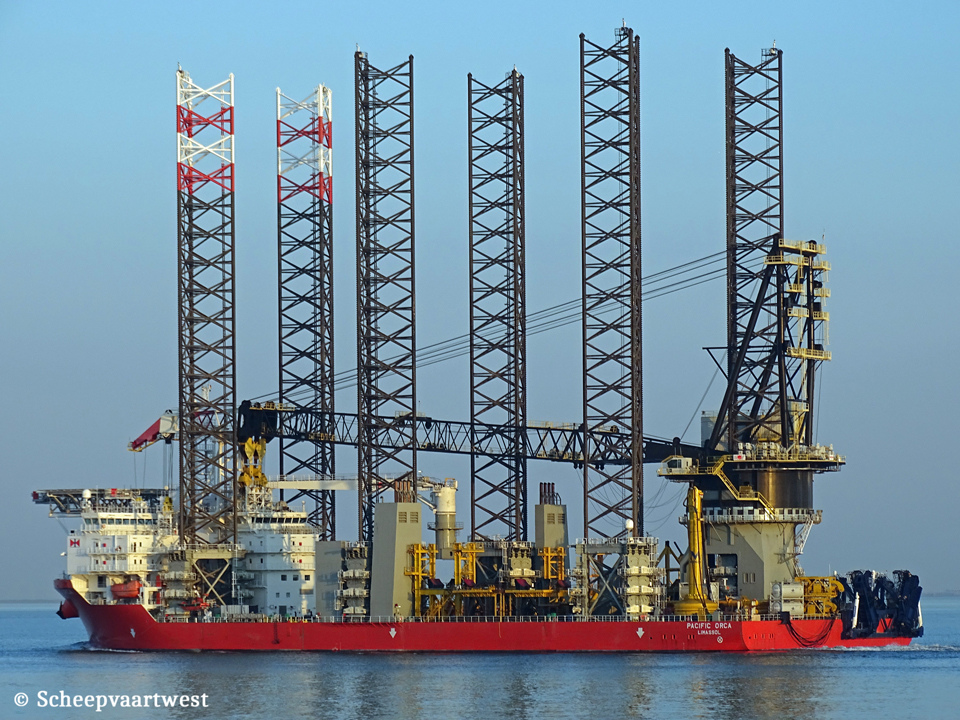

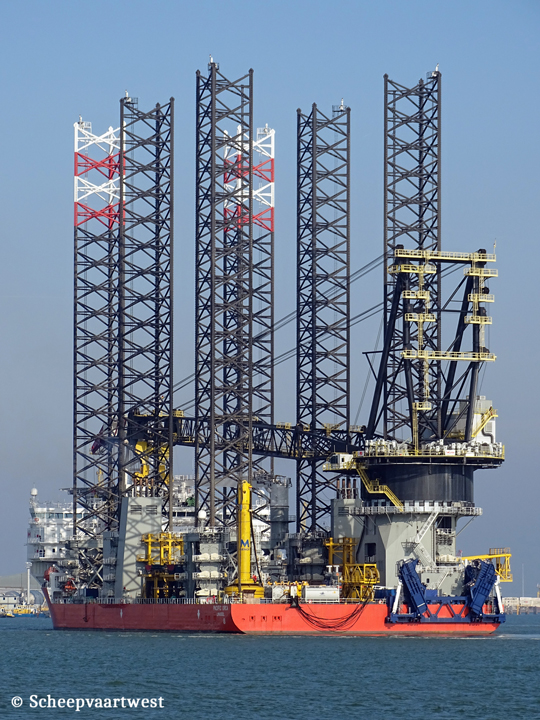

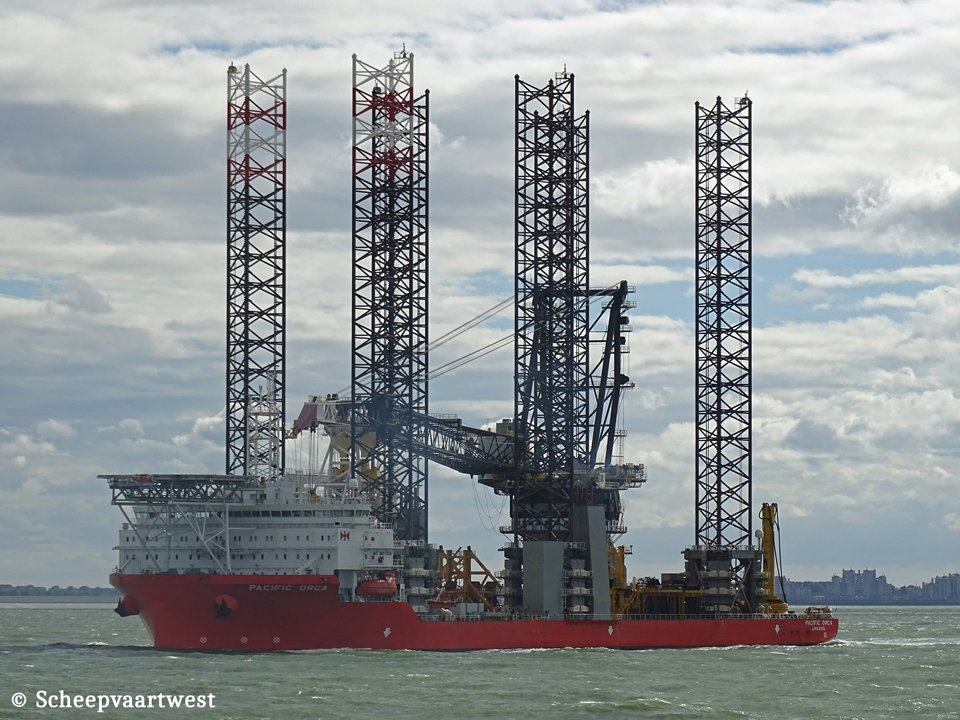

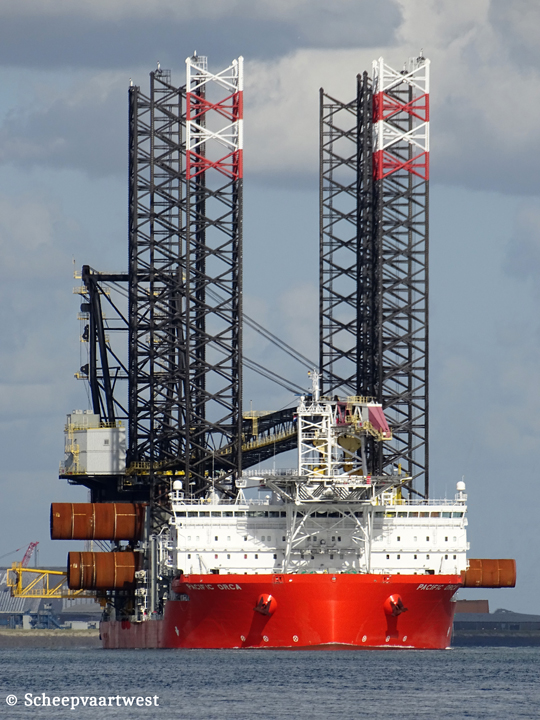

Pacific Orca - IMO 9601326

Name

PACIFIC ORCA

Type

Self-elevating and self-propelled vessel

Wind turbine installation and & crane operation vessel

IMO-number

9601326

Call sign

5BRE3

Flag

Cyprus

Port of registry

Limassol

GT

24.586 t

DWT

13.104,8 t

NT

7.376 t

Length

161,30 m overall

155,60 m between perpendiculars

Breadth

49,03 m extreme

Draught

Summer: 6,00 m

Depth

10,40 m to main deck

Speed

13,9 knots

Built

2012

Keel laid

07/11/2011

Launch date

12/02/2012

Date of completion

25/07/2012

Builder

Samsung Heavy Industries Co., Ltd.

Geoje Shipyard

South Korea

Yard number

H1940

Hull material

Steel

Propulsion engine

4x Doosan/MAN-B&W 9L27/38 - 9 cylinder combustion engines each 3.060 kW

Propulsion

4x ABB Compact Azipods - 3,4 MW

Generators

8x MAN 9L27/38 main diesel generatorsets 3.024 kW at 720 rpm

Emergency & harbour gen

1x Cummins QSK19DM diesel generatorset

Thruster

Stern: 4x 3,4 MW Compact Azipod

Bow: 2x 2,2 MW retractable + 2x 2,2 MW tunnel

Cargo area

Main deck area: 4.300 m²

Deck loading: 15,0 t/m²

Tank capacities

Marine gas oil: 4.200 m³

Lube oil: 32 m³

Fresh water - potable: 1.500 m³

Water ballast, 12.000 m³ (approx.)

Sewage (black + grey): 630 m³

Anchor equipment

Length: 713,60 m

Diameter: 87 mm

Main crane

• Make: NOV Amclyde

• Type: Rope luffing, “work-around-leg”

• Main hoists: 2 x 600 t side by side for 1.200 t in tandem

• Load: 1.200 t @ 18 - 31 m - 600 t @ 50 m
  Max load radius: 91 m

• Aux hoist: 500 t @ 20 - 60 m

• Max load radius: 107 m

• Whip hoist: 50 t @ 23 - 113 m, approved for man riding

• Tuggers: 7x 5 t SWL

• Max. wind speed: 20 m/s

Auxiliary crane

• Make: NOV Amclyde

• Type: Hydraulic

• Main hoist: 35 t @ 6,5 to 35 m

• Aux hoist: 25 t @ 6,5 to 40 m approved for man-riding

Knuckle-boom crane

• Make: NOV Amclyde

• Type: Hydraulic with telescopic jib

• Hoist: 2 t @ 25 m, 4 t @ 14 m

• Man-riding radius: 30 m by operating telescopic jib

Legs & jacking system

Number of legs: 6 Sets of 3-Chord truss type

Jacking system: High speed rack & Pinion

Speed: VFDs 0,1 - 2,4 m/min

Operating conditions for jacking

Service Restrictions when Jacking:

Wind Speed: 20 m/s

Significant wave height: 2,50 m

Leg length: 105,00 m

Maximum leg protrusion: 80,00 m below the hull

Helicopter landing deck

Diameter: 22,00 m @ 12,8 t

Accommodation

Cabins:

• 111 Single berth cabins

• Recreation facilities:

• Cafeteria with seating for 70 personnel

• 2x Day rooms

• Fitness centre

2x TV lounges

Offices:

• Operations office

• 2x Conference rooms

• 4x Multi-use offices

Manager

Swire Blue Ocean A/S

Arne Jacobsens Allé 7

2300 København

Denmark

Registered owner

Swire Pacific Offshore (Cyprus) Ltd.

Renamed

01/2021 Wind Orka

Denmark, København - Call sign: OZSB2

Owner: Wind Orca Ltd.

Manager: Cadeler A/S, Copenhagen - Denmark

Latest data adjustment

03 March 2023
