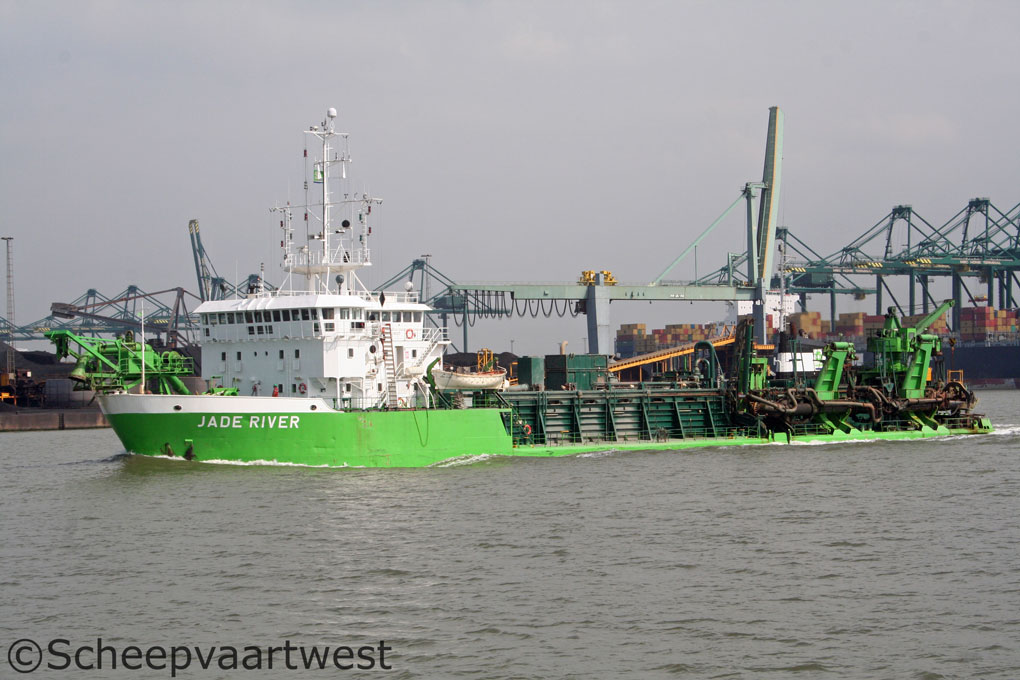

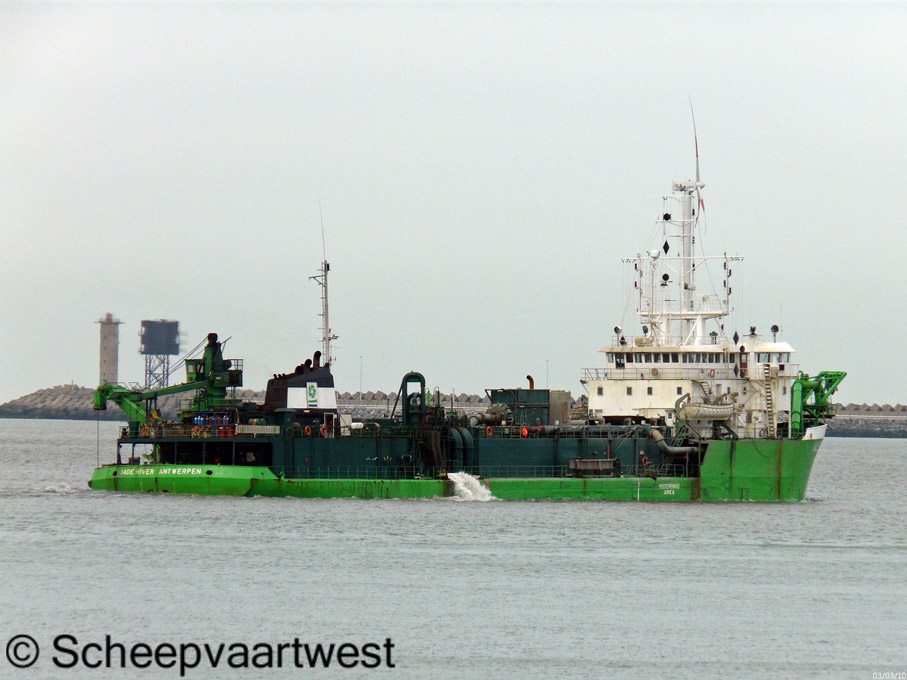

| Antwerpen 12 July 2008 |
 |
 |
 |
 |
 |
||||

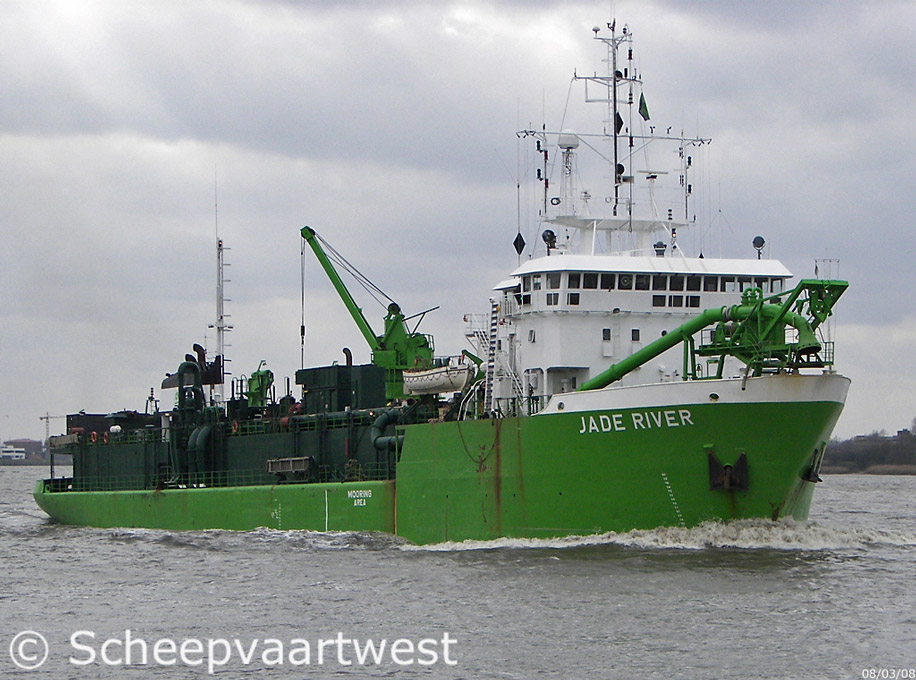

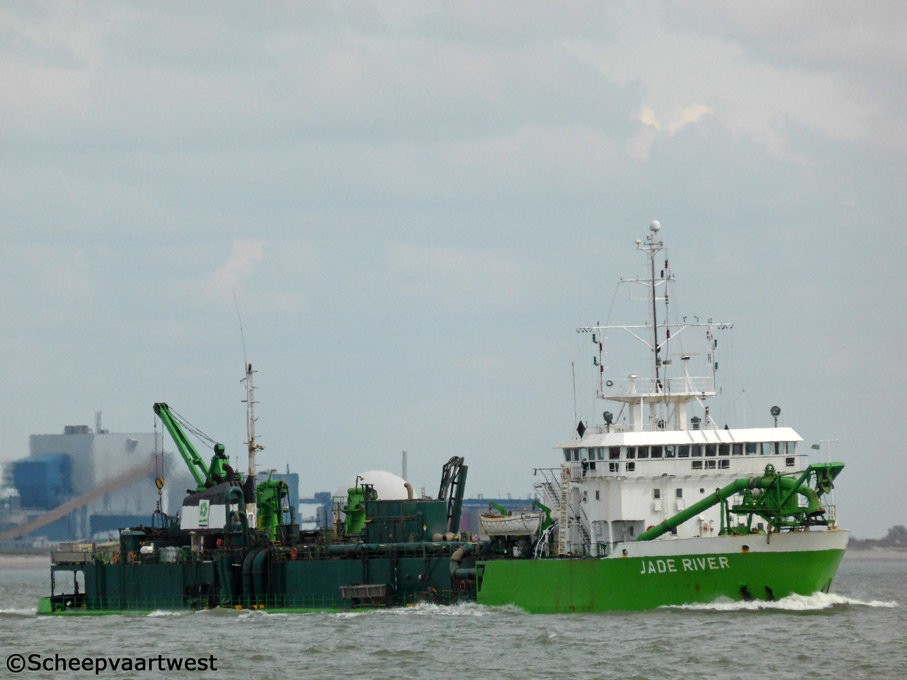

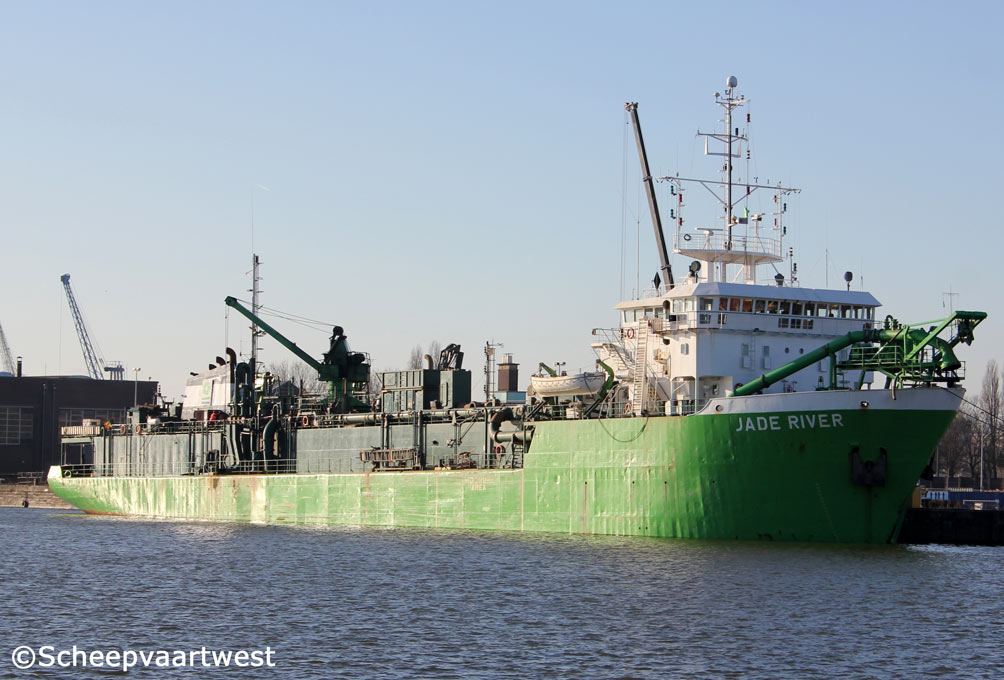

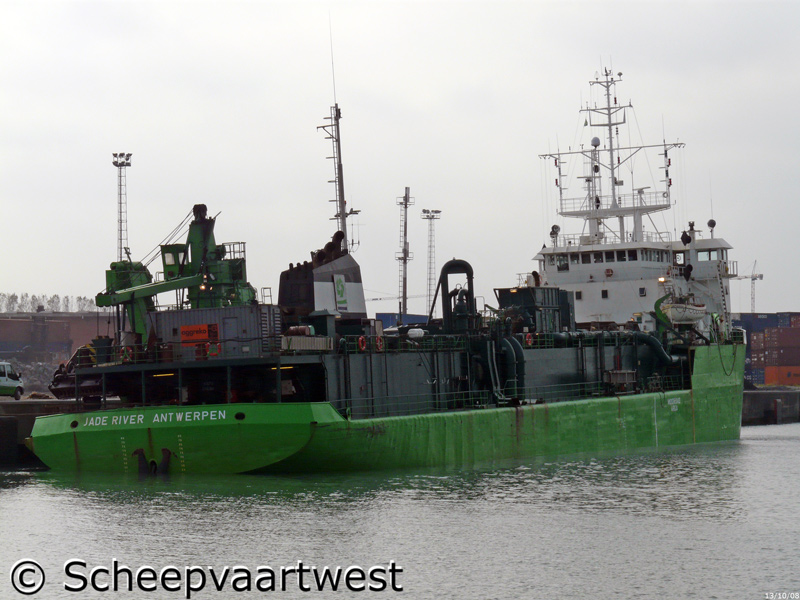

| Antwerpen 12/07/08 | Zeebrugge 13/10/08 | Zebrugge03/03/10 | Antwerpen 10/01/14 | Westerschelde 07/04/14 | ||||
 |
 |
 |
||

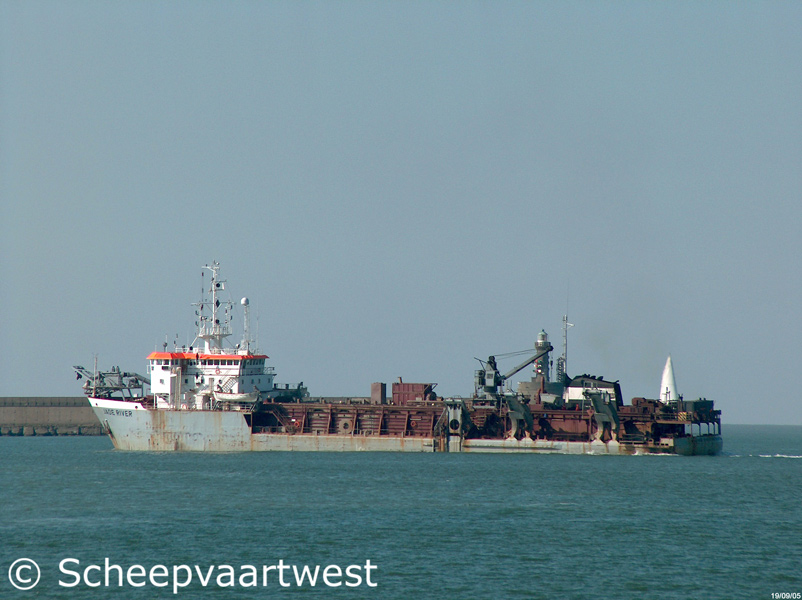

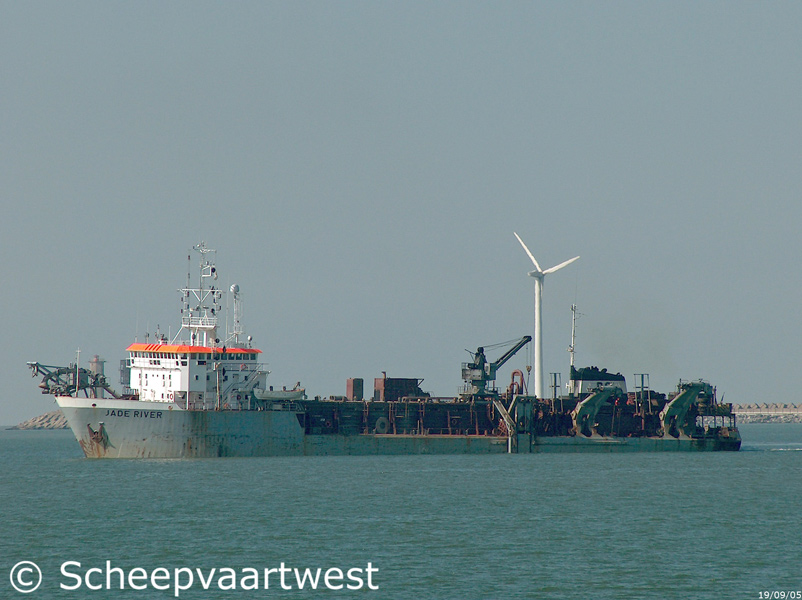

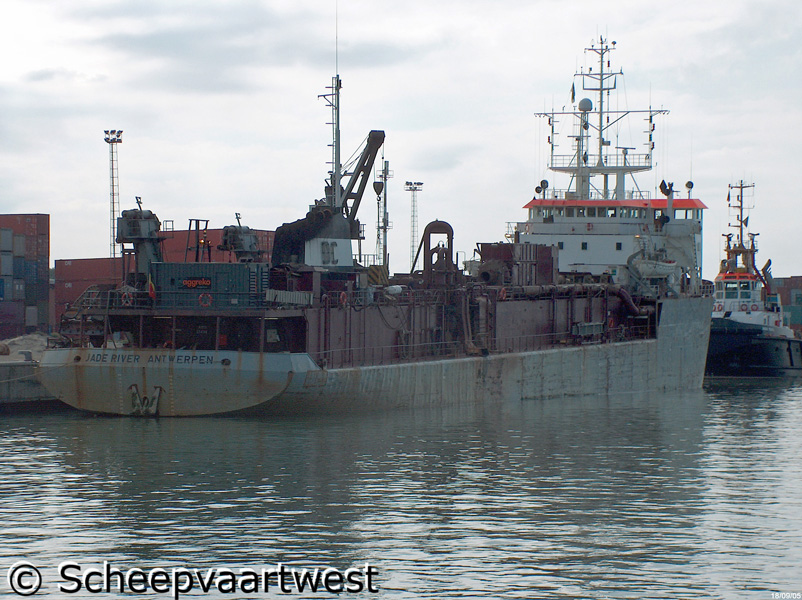

| Zeebrugge 18/09/05 | Zeebruigge 19/09/05 | Zeebrugge 19/09/05 | ||
|
Name |
JADE RIVER |
|
Previous name |
Originally built under the name 'Schelde II' in 1979 Renamed 'Jade River' in 1994 |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
7624037 |
|
Call sign |
ORSA |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
4.284 t |
|
DWT |
5.675 t |
|
NT |
2.169 t |
|
Length |
98,50 m overall |
|
Breadth |
16,42 m overall |
|
Draught |
Summer: 6,44 m Max.: 7,33 m |
|
Freeboard |
Summer: 1.770 mm |
|
Depth |
8,21 m moulded |
|
Speed |
Max. loaded: 11,9 knots |
|
Built |
1978 |
|
Launch date |
01.02.1978 |
|
Date of completion |
02.1979 |
|
Construction Year |
1978 / 1994 |
|
Builder |
Beliard Murdoch Crichton |
|
Yard number |
0231 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
2 |
|
Main engine |
2x MWM - 4 stroke 8 cylinder 360 x 450 mm diesel engies - 3.532 kW / 4.800 hp at 500 rpm Built: 1977 Place of built: Mannhiem - Germany |
|
Number of screws |
2x Screw propeller solid at 200 rpm |
|
Power |
Total installed: (with D.R.A.C.U.L.A) 8.556 kW |
|
Electrical installation |
Power Voltage: 380 Volt - 50 Hz |
|
Generators |
4x Diesel generatorsets each 400 kVA - 320 kW - 840 hp |
|
Hopper capacity |
Coaming: 3.281 m³ Overflow: 2.582 m³ |
|
Loading capacity |
5.643 t |
|
Suction pipe |
1x 900 mm |
|
Discharge pipe |
800 mm |
|
Dredging depth |
Normal: 28,00 m Extended: 30,00 m |
|
Power on Pumps |
SB (dredging): 1.765 kW |
|
Crew |
15 |
|
Manager |
DEME - Dredging, Environmental & Marine Engineering |
|
Operator |
DEME - Dredging, Environmental & Marine Engineering |
|
Owner |
N.V. Baggerwerken Decloedt en Zoon |
|
Unsubscribed from Belgian Register |
07 July 2014 |
|
Renamed |
2015 Al-Yarmuk - Bahrain - Call sign: A9D3330 United dredging Company |
|
Latest data adjustment |
21 March 2016 |
