| Westerschelde 27 July 2019 |
|
Name |

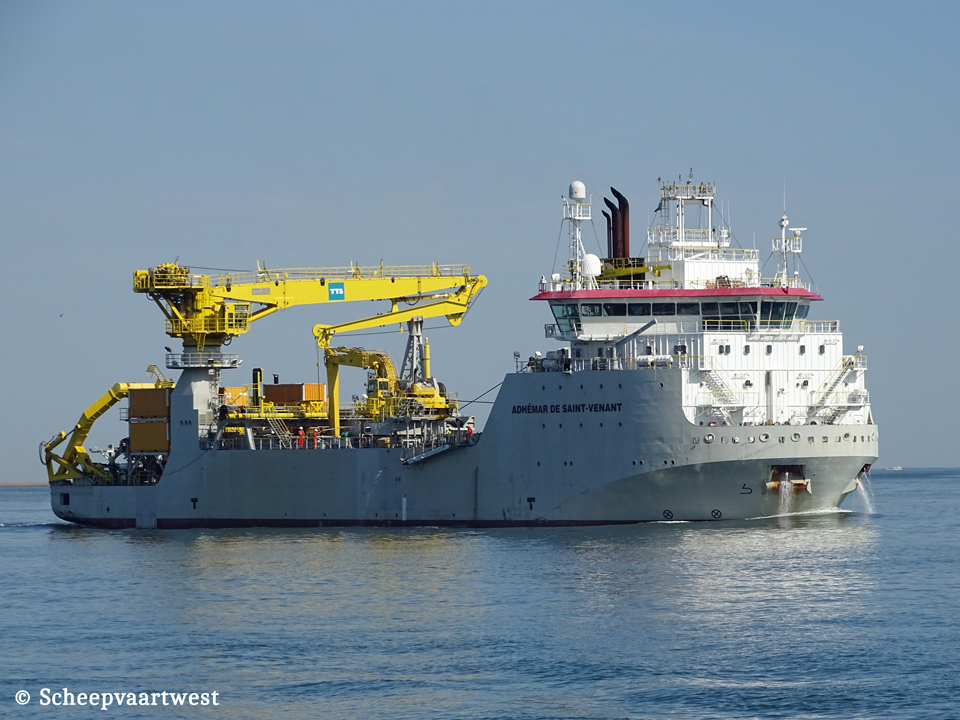

ADHÉMAR DE SAINT-VENANT |
|
Type |
DP2 Trenching and offshore support vessel subsea rock installation vessel Former: Cable laying vessel |
|
IMO-number |
9778703 |
|
Call sign |
LXUD |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxembourg City |
|
Previous flags |
Summer: 6,50 m |
|
GT |
7.531 t |
|
DWT |
5.980 t |
|
NT |
2.259 t |
|
Length |
95,00 m overall 83,30 m between perpendiculars |
|
Breadth |
22,00 m |
|
Draught |
6,50 m loaded |
|
Freeboard |
709 mm |
|
Speed |
Max: 13,00 m Service: 11,5 knots |
|
Built |
2017 |
|
Date of completion |
26/06/2017 |
|
Builder |
Avic Weihai Shipyard Co.,Ltd. China |
|
Yard number |
OE6-1 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
4x ABC 8DZC - 4 stroke 8 cylinder 156 x 310 mm combustion engines total 6.008 kW / 8.168 hp at 1.000 rpm Builder: Anglo Belgian Corporation, Gent - Belgium |
|
Propelling type |
Diesel/Electrical |
|
Propelling system |
2x Azimuth thruster solid - aft at 195,0 rpm |
|
Boilers |
1x CHO BV 0289LEI16 19,20 m² - 6,0 bar |
|
Generators |
4x Diesel generatorsets 2.125 kVA - 1.700 kW - 2.404 hp |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 352 hp |
|
Bow thruster |
2x Each 1.250 kW |
|
Rock installation equipment |
Rock carrying capacity: 5.100 t Max fall pipe depth: 600,00 m Inclined fall pipe diam.: 1.000 / 1.800 mm Inclined fall pipe length: 45,00 / 25,00 m |
|
Tank capacities |
Fuel: 687,85 m³ |
|
Lifting equipment |
1x crane - SWL 2,5 t |
|
Cargo gear |
1x Offshore crane - SWL 40,0 t |
|
Person capacity |
60 |
|
Manager |
Dredging & Maritime Management S.A. 34-36 Parc d'Activites 8308 Capellen G.D. Luxembourg |
|
Operator |
Jan De Nul NV Tragel 60, Hofstade 9308 Aalst Belgium |
|
Registered owner |
Willem S.A. Luxembourg City G.D. Luxembourg |
|
Latest data adjustment |
20 January 2023 |
