Filippo Brunelleschi

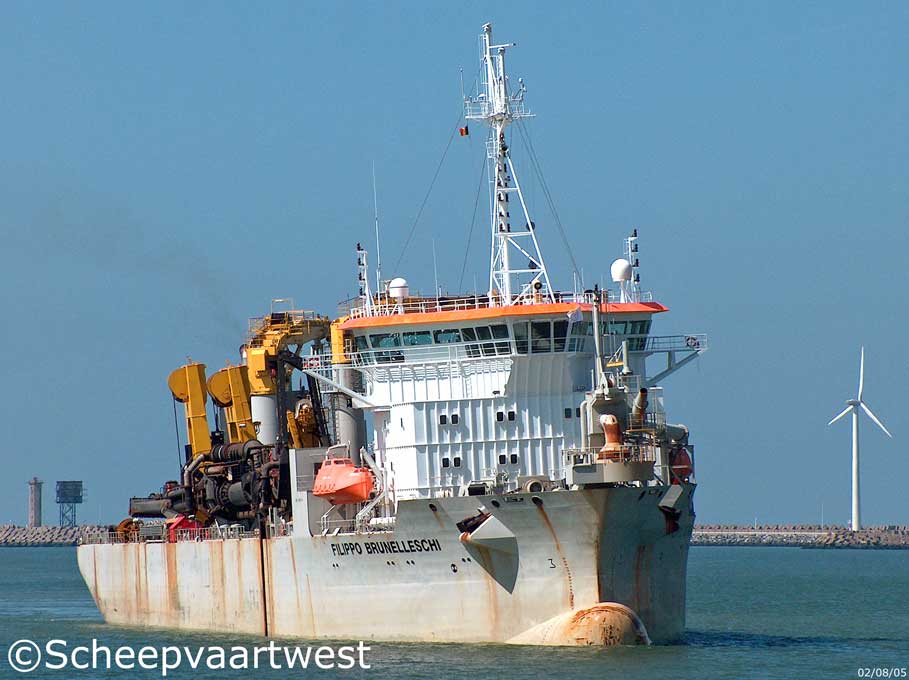

Zeebrugge 02 August 2005



Name

FILIPPO BRUNELLESCHI

Type

Trailing suction hopper dredger

IMO-number

9262778

Call sign

EBSQ

Flag

Spain

Port of registry

Santa Cruz De Tenerife

GT

13.001 t

DWT

18.590 t

NT

3.900 t

Length

142,46 m overall
126,05 between perpendiculars

Breadth

27,50 m

Draught

Loaded: 9,0 m

Unloaded: 3,80 m

Freeboard

1.284 mm

Depth

13,00 m

Speed

15,5 knots

Built

2003

Date of completion

30.10.2003

Builder

IZAR - Construcciones Navales S.A.
Astilleros de Sestao
Spain

Yard number

324

Hull material

Steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

2

Main engine

2x MAN B&W - 4 Stroke 12 cylinder 320 x 400 mm internal combustion engine - 11.520 kW / 15.652 hp at 750 rpm

Built: 2002

Builder: MAN B&W Diesel AG, Augsburg - Germany

Electrical propulsion gen.

2x 5.400 kW - 6.600 Volt

Number of screws

2x Screw propeller controllable pitch at 148 rpm

Boilers

1x CHO Aalborg 57,15 m² - 10,0 bar
2x CHR Aalborg 180,00 m² - 10,0 bar

Electrical installation

Power voltage: 6600 V

Lighting voltage:220 V

Frequency: 60 Hz

Generators

1x Diesel generatorset 1.700 kVA - 1.360 kW - 1.935 hp

Emergency generators

1x Diesel generatorset 213 kVA - 170 kW - 254 hp

Total installed engine power

12.790 kW

Dredging depth

37,50 / 57,00/ 76,50 m

Normal: 32,50 m

Extended: 71,50 m

Number of holds

1

Total capacity of holds

11.300 m³

Suction pipe

1.200 mm diameter

Discharge pipe

900 mm diameter

Pump

3.400 kW

Pumping ashore: 7.500 kW

Fuel Capacity

1.193,7 m³

Crew

18

Complement

34

Office Belgium

Ondernemingen Jan De Nul N.V.
Tragel 60
B-9308 Hofstade-Aalst
Belgium

Owner

Jan de Nul
Tragel 60
B-9308 Hofstade-Aalst
Belgium

Registration owner

Codralux SA
Rue Du Cimetiere 12
Steinfort
G.D. Luxembourg
