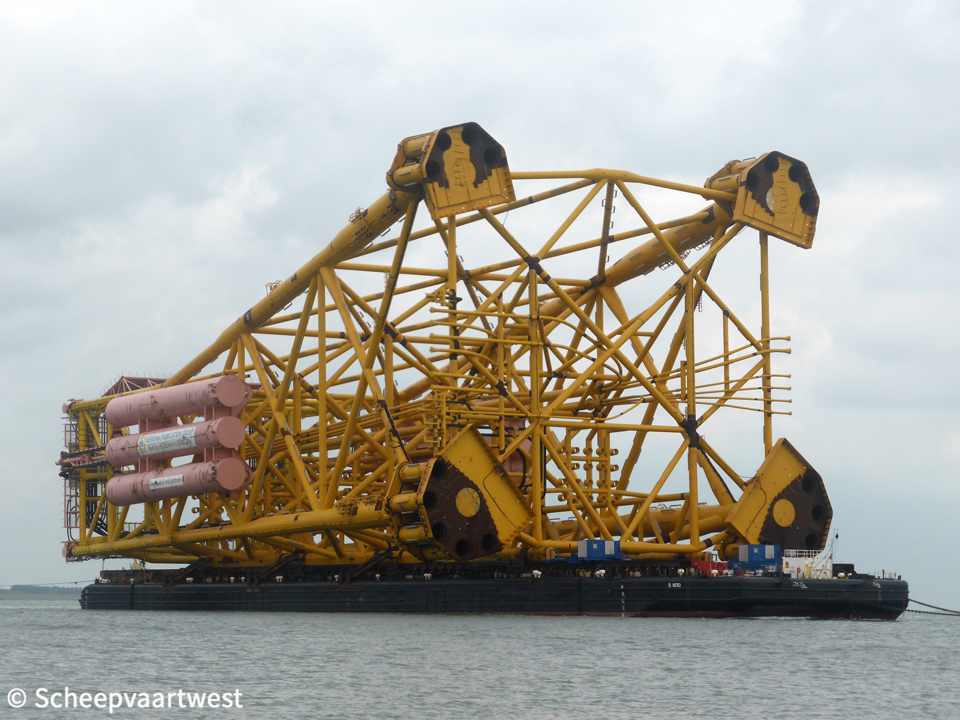

Saipem S 600 01

Westerschelde 19 June 2015

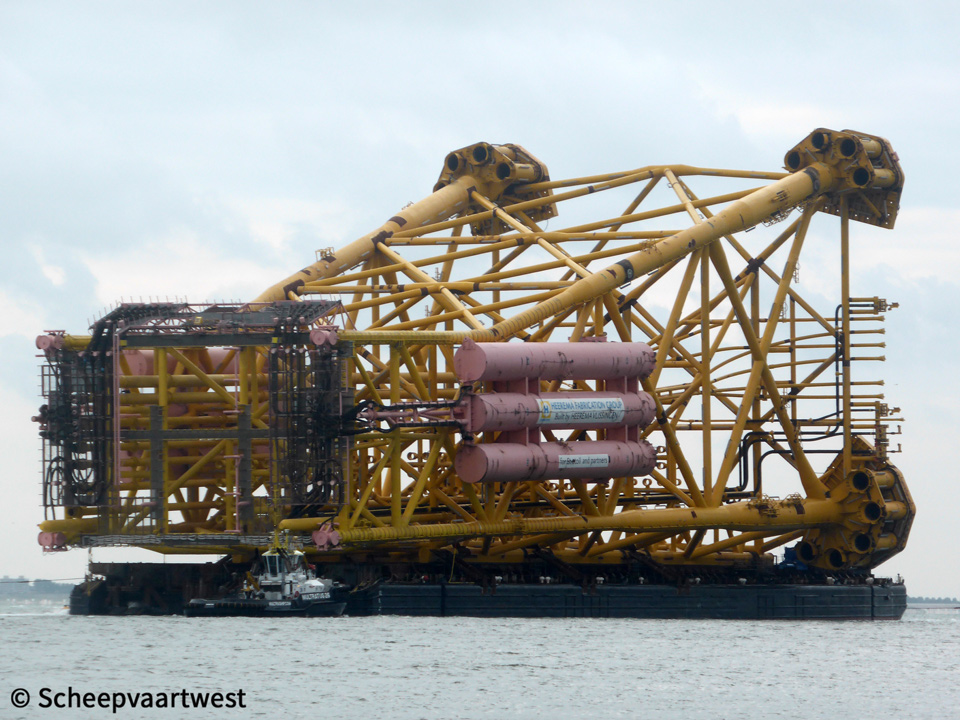

Saipem S 600 02
Westerschelde 19/06/15


Name

SAIPEM S 600

Type

Launching/cargo barge

Flag

Bahamas

Port of registry

Nassau

GT

27.484 t

NT

8.245 t

Suez: 32.130 t

Lightweight

11.010 t excl. equipment

Max. loading capacity

60.760 t

Displacement

71.800 t

Max. launch weight

30.000 t

Length

183,00 m

Breadth

47,24 m

Draught

Summer: 8,56 m

Depth

11,58 m

Builder

MHI Nagasaki Shipyard & Engine Works

Nagasaki

Japan

Hull material

Steel

Ballasting

From remote control panel

Pumps: 2x ballast pumps each with a capacity of 1.000 m³/h

A diesel engine of 65 bhp by 1.800 rpm drives the AC generator, the compressor and the fire/bilge pump with a capacity of 60 m³/h

Generator: AC generator - 20 kW, 110 V, 3 phases, 60 Hz

Air compressor

Capacity 1 m³/h., 7 bars (for remote control)

Mooring

Anchor:

Stockless bow anchor, weight 7.800 kg

Anchor winch:

60/16 tons by 9/28 m/min. fitted with a rope of 50 mm diameter x 457 m (for engine, see ballasting)

Bridle chain retrieving winch:

Capacity 18 tons at 3 m/min. with a 21,5 mm diameter wire, 50 m long and driven by a 20 hp x 1.200 rpm diesel engine

Fittings:

14 bollard sets 50 tons capacity and 10 Panama chocks

Towing arrangement

2x 78 mm diameter x 27,5 m U3 studlink chains joined by a triplate to a pennant wire of 76 mm diameter and 25 m length

All towing gear rated at 150 tons bollard pull

Emergency towing lines: 2x wire ropes of 70 mm diameter x 160 m with hard eyes and at the end a polypropylene line 305 mm circumference x 50 m with a buoy of 1 m diameter

Towing brackets

Five of 150 tons each at bow, smit towing brackets incl. fairleads

Two of 50 tons each at stern, smit towing brackets

Max. upperdeck load

Uniform deck loading of 15 t/m² on 15 m wide stroke in centre of barge and 20 t/m² on other area.

Max. concentrated load of 200 tons on transverse deck frame at mid span and 500 tons on the cross points of transverse deck frames and longitudinal bulk heads

Skid beams

Max. length: 145 m each

Width: 2,40 m Height above barge deck: 2,52 m

Weight: 4,9 tons/m each

Tank capacities

Water ballast tanks: 86.385 m³

Voids: 1.993 m³

Fuel oil tank: 8 m³

Cooling fresh water tank: 128 m³

Headquarter

Saipem

Via Martiri di Cefalonia, 67

20097 San Donato Milanese (MI)

Italy

Latest data adjustment

27 May 2020
