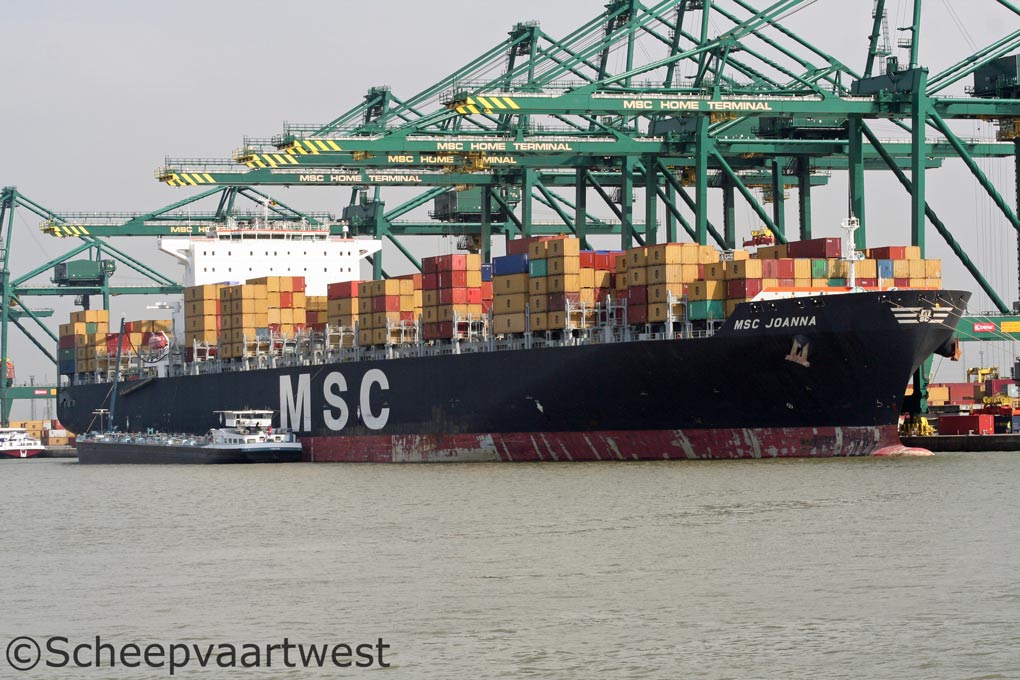

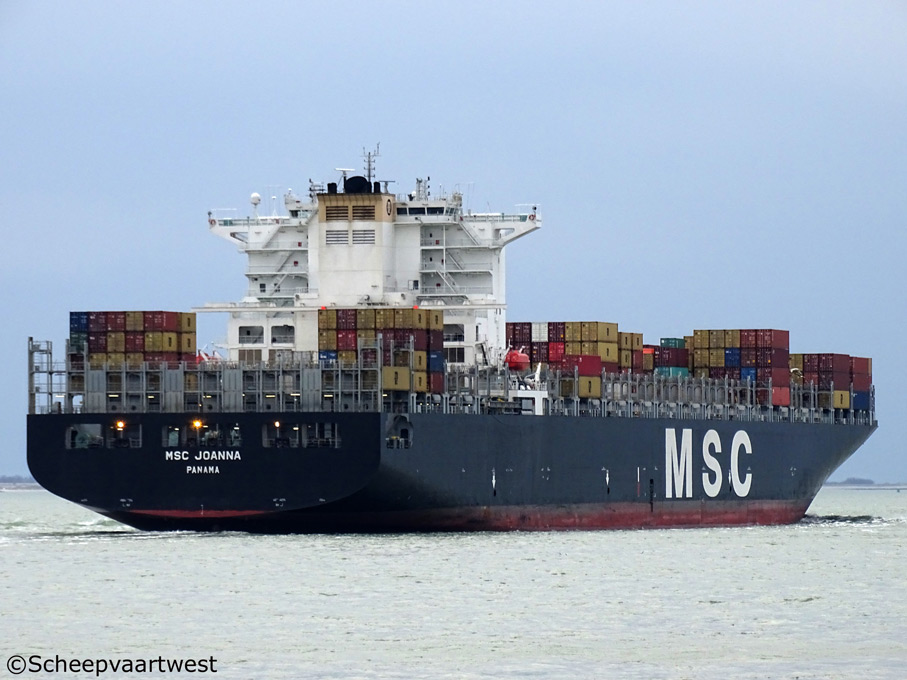

MSC Joanna - IMO 9304435

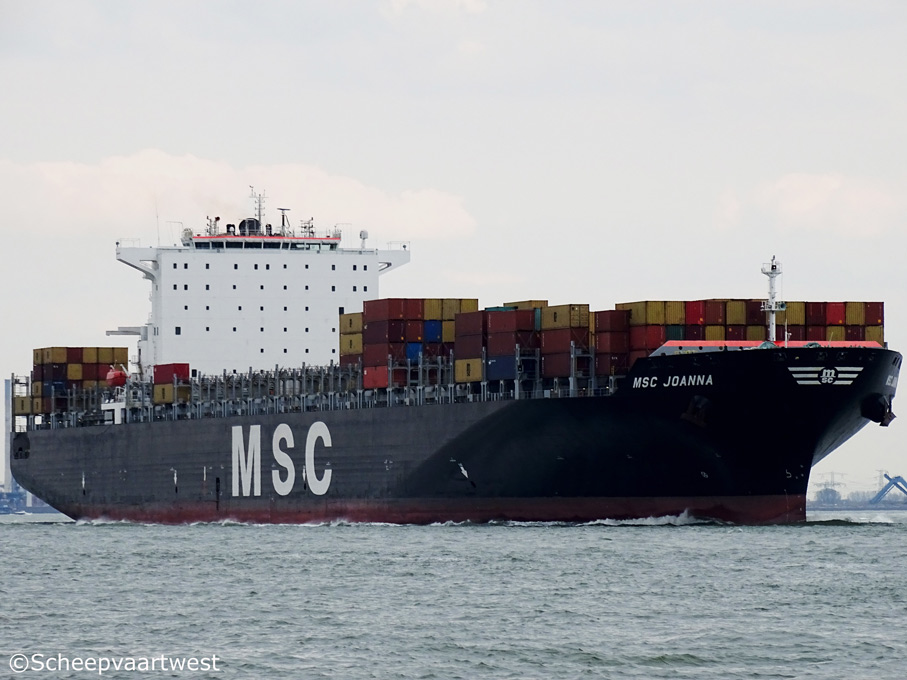

Westerschelde 09 April 2016

Name

MSC JOANNA

Type

Cellular containership

IMO-number

9304435

Call sign

3EHF2

Flag

Republic of Panama

Port of registry

Panama City

GT

107.849 t

DWT

117.333 t

NT

61.479 t

Number of 20ft containers

9.178

Containers capacity 14t

6.500

Reefer capacity

700

Length

336,67 m overall

323,24 m registered

Breadth

45,60 m registered

Draught

15,50 m

Forecastle

160,99 m

Bridge

150,59 m

Poop

10,39 m

Freeboard

4.738 mm

Depth

27,20 m moulded

Speed

25,20 knots

Built

2006

Keel laid

22.05.2006

Launch date

27.07.2006

Date of completion

16.10.2006

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1547

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 68.520 kW at 104,0 rpm

Year of manufacture: 2006

Manufacturer: Doosan Engine Co., Ltd.
69-3, Sinchon-dong
Changwon , Gyeongnam 642-370
Republic of Korea

Propeller

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 55,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 1.182,0 m²

Year of manufacture: 2006

Manufacturer: Aalborg Industries Ltd.
86 Guangzhou Road North Jiaozhou
266300 Qingdao , Shandong
People's Republic of China

Electric installations

1x Plant 6.600/450 V - 3.437,5 kVA

1x Plant 6.600/450 V - 3.437,5 kVA

1x Plant 6.600/450 V - 3.437,5 kVA

1x Plant 6.600/450 V - 3.437,5 kVA

1x Plant 450 V - 625 kVA

Diesel generators

4x MAN-B&W 6L32/40 main diesel generatorsets each 3.437,5 kVA / 2.750 kW

Emergency generator

1x Diesel generatorset 625 kVA

Compressed air receivers

2x Receivers each 14.500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 250 litres - 8,30 bar

Bow thruster

1x Transverse thruster - 3.000 kW, forward

Anchor equipment

3x Anchors weight each 20.000 kg

Chain length: 770,00 m

Cargo gear

Gearless

Crew size

34

Manager

MSC Mediterranean Shipping Company S.r.l.
Via Francesco Ciampa, 29
80063 Piano di Sorrento (NA)
Italy

Operator

MSC - Mediterranean Shipping Company

Owner

Compania Naviera Joanna S.A.
St. James Chambers 64A
Douglas
United Kingdom

Latest data adjustment

18 May 2016
