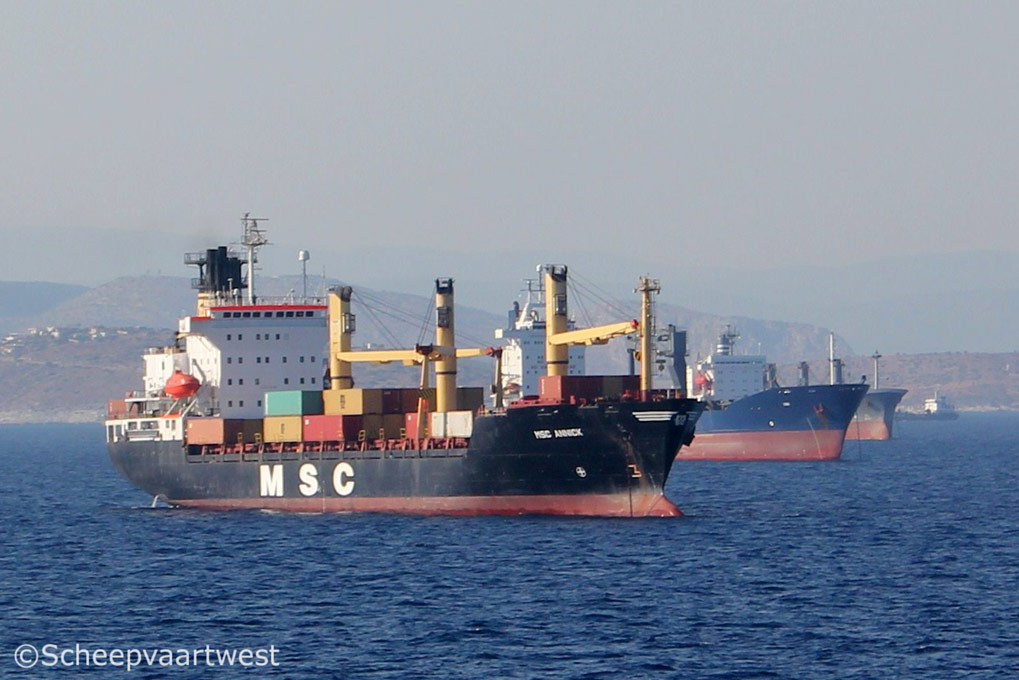

| Saronic Gulf - Greece 27 August 2012 |
|
Name |
MSC ANNICK |
|
Previous names |
Jurong Express Columbus Ohio Tiger Wave Contship Asia NDS Benguela Contship Asia Promoter N |
|
Type |
Cellular containership |
|
IMO-number |
8609589 |
|
Call sign |
H3TH |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
13.315 t |
|
DWT |
16.768 t |
|
NT |
6.802 t |
|
Number of 20ft containers |
790 |
|
Container capacity 14t |
673 |
|
Reefer containers |
55 |
|
Length |
158,91 m overall 146,85 m registered |
|
Breadth |
23,05 m registered |
|
Draught |
10,09 m |
|
Forecastle |
26,90 m |
|
Poop |
28,70 m |
|
Depth |
13,40 m moulded |
|
Speed |
16,0 knots |
|
Built |
1988 |
|
Keel laid |
04.03.1987 |
|
Launch date |
1987 |
|
Date of completion |
25.02.1988 |
|
Builder |
VEB Schiffswerft "Neptun" Rostock |
|
Yard number |
207 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN K5SZ70/125BL - 2 stroke 5 cylinder 700 x 1.250 mm diesel engine - 7.600 kW at 130,0 rpm Year of manufacture: 1987 Manufacturer: VEB Dieselmotorenwerk Rostock |
|
Propellers |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating Surface: 41,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating Surface: 150,0 m² Year of manufacture: 1987 Manufacturer: Dampfkesselbau Dresden-Übigau GmbH |
|
Electric installation |
1x Plant 400/220 V - 510 kVA 2x Plants each 400/220 V - 855 kVA 1x Plant 400 V - 1.250 kVA |
|
Shaft generator |
1x 1.250 kVA / 1.000 KW |
|
Generators |
2x Main diesel generatorsets each 855 kVA / 684 kW 1x Diesel generatorset 510 kVA / 408 kW |
|
Compressed air receivers |
2x Receivers each 2.500 litres - 30,0 bar 1x Receiver 100 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster, forward |
|
Cargo capacity |
Grain: 22.284 m³ Bales: 20.975 m³ |
|
Ballast water |
5.783 m³ |
|
Anchor equipment |
3x Anchors weight each 6.450 kg Chain length: 605,00 m |
|
Lifting equipment |
3x Cranes - SWL 40,0 t each |
|
Crew size |
33 |
|
Manager |
MSC Shipmanagement Ltd. |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Compania Naviera Annick S.A. |
