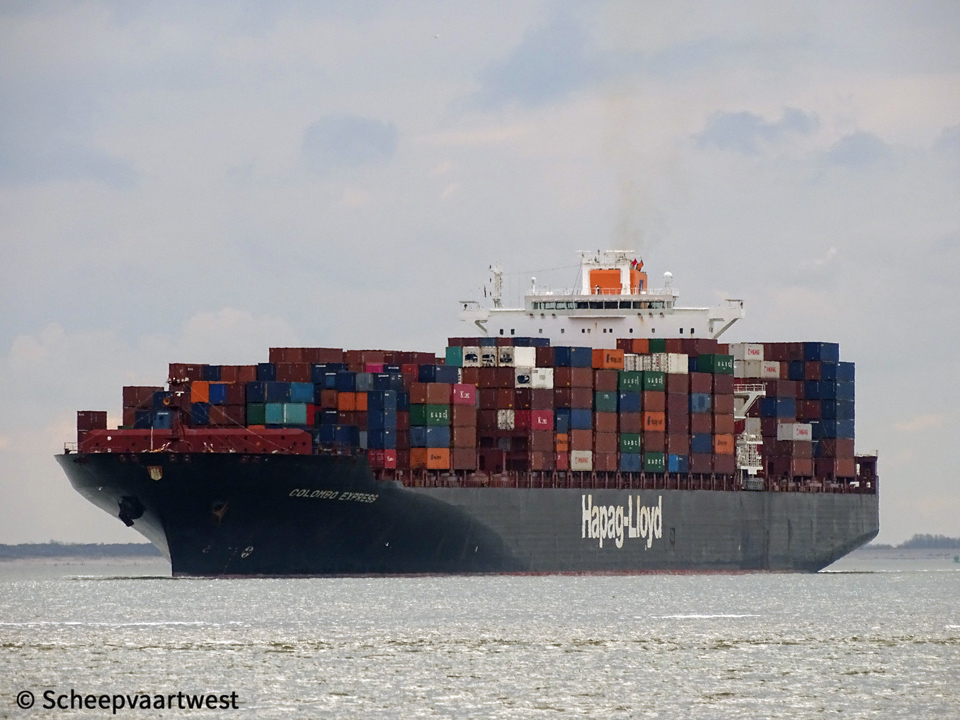

Colombo Express 01

Westerschelde 31 Mars 2018



Name

COLOMBO EXPRESS

Type

Cellular containership

IMO-number

9295244

Call sign

DIHC

Flag

Germany

Port of registry

Hamburg

GT

93.750 t

DWT

Summer: 103.800 t

NT

37.699 t

Number of 20ft containers

8.749

Container capacity 14t

6.310

Reefer capacity

730

Length

335,47 m overall

319,00 m between perpendiculars

Breadth

42,94 m extreme

42,80 m moulded

Draught

Max: 14,61 m

Depth

24,50 m

Speed

Max: 25,2 knots

Built

2005

Keel laid

01/11/2004

Launch date

14/01/2005

Date of completion

30/03/2005

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

H1595

Hull material

Steel

Main engine

1x MAN-B&W 12K98 ME - 12 cylinder combustion engine 68.640 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, composite

Shaft generator

4.000 kW

Generators

2x Daihatsu 8DK-36 main diesel generatorsets each 4.267 kW

1x Daihatsu 8DK-28 main diesel generatorset 2.454 kW

1x Daihatsu 6DK-28 main diesel generatorset 1.867 kW

Emergency generator

1x Cummins KTA 19-D diesel generatorset

Bow thruster

2.500 kW

Tank capacities

Ballast: 28.063,8 m³

Anchor equipment

Length: 742,50 m

Diameter: 107 mm

Manager

Hapag-Lloyd Aktiengesellschaft

Hamburg
Germany

Registered owner

Hapag-Lloyd Aktiengesellschaft

Latest data adjustment

04 December 2019
