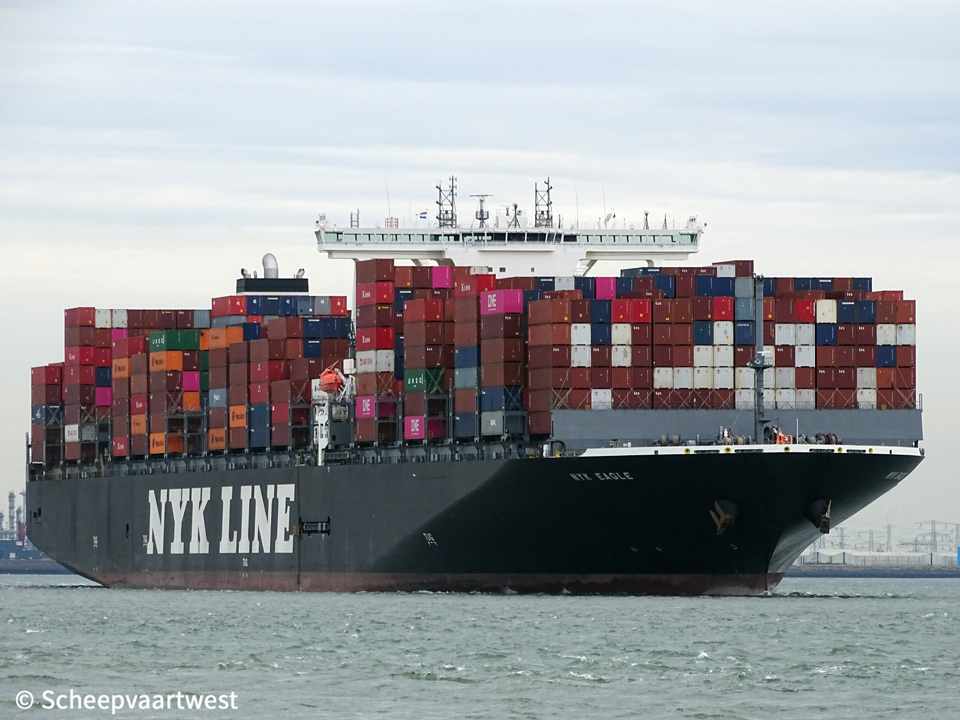

NYK Eagle 01

Westerschelde 01 November 2018



Name

NYK EAGLE

Type

Cellular containership

IMO-number

9741396

Call sign

3EMG9

Flag

Republic of Panama

Port of registry

Panama City

GT

145.251 t registered

DWT

139.335 t

NT

84.742 t registered

Number of 20ft containers

14.026

Length

364,15 m overall

Breadth

50,60 m moulded

Draught

Max: 15,79 m

Moulded L x B x D

349,20 x 50 60 x 23,04 m

Registered L x B x D

353,19 x 50 60 x 23,04 m

Freeboard

Summer: 7.301 mm

Depth

23,04 m moulded

Speed

Max: 25,1 knots

Built

2016

Keel laid

28/09/2015

Launch date

22/04/2016

Date of completion

02/09/2016

Builder

Japan Marine United Corporation, Kure Shipyard

Japan

Yard number

5063

Hull material

Steel

Main engine

1x Wärtsilä 9X82 - 2 stroke 9 cylinder 820 x 3.375 mm combustion engine 28.310 kW at 65,3 rpm

Manufacturer: Diesel United, Ltd. Aioi Machinery Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 5,70 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

5x Generatorsets total 16.327 kVA

Bow thruster

3.600 kW

Tank capacities

Fuel oil: 10.515,83 m³

Fresh water: 599,34 m³

Manager

NYK Shipmanagement Pte Ltd.

Operator

NYK Line

Renamed

2019 One Eagle

Japan, Tokyo - Call sign: 7KEK

Owner: Edo Ship Holding LLC

Manager: NYK Shipmanagement Pte Ltd.

Latest data adjustment

24 November 2019
