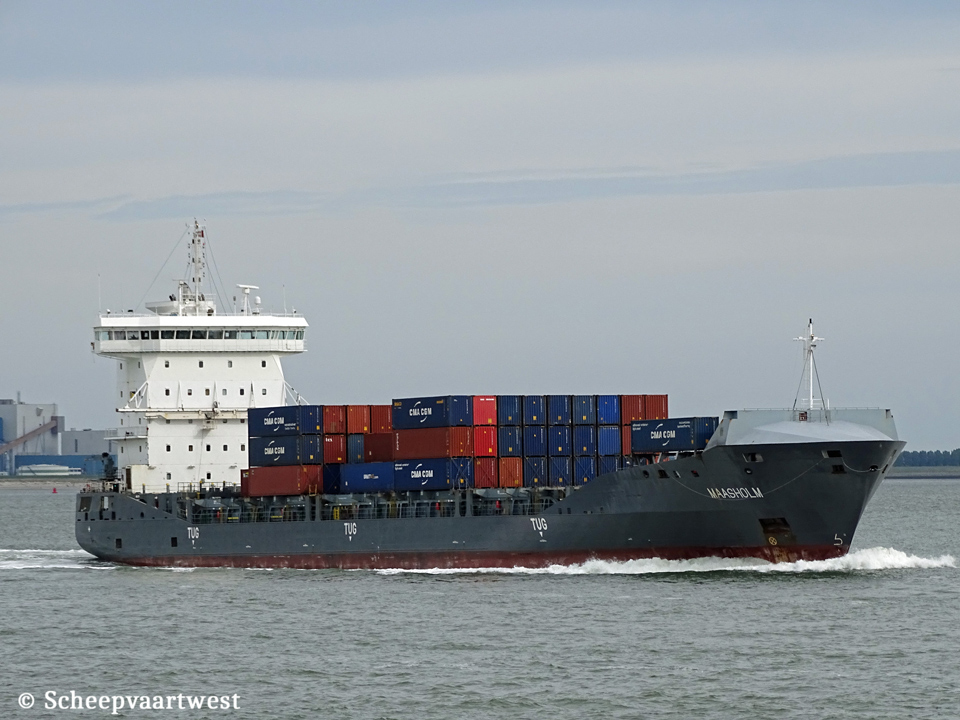

Westerschelde 16 September 2018 |
 |

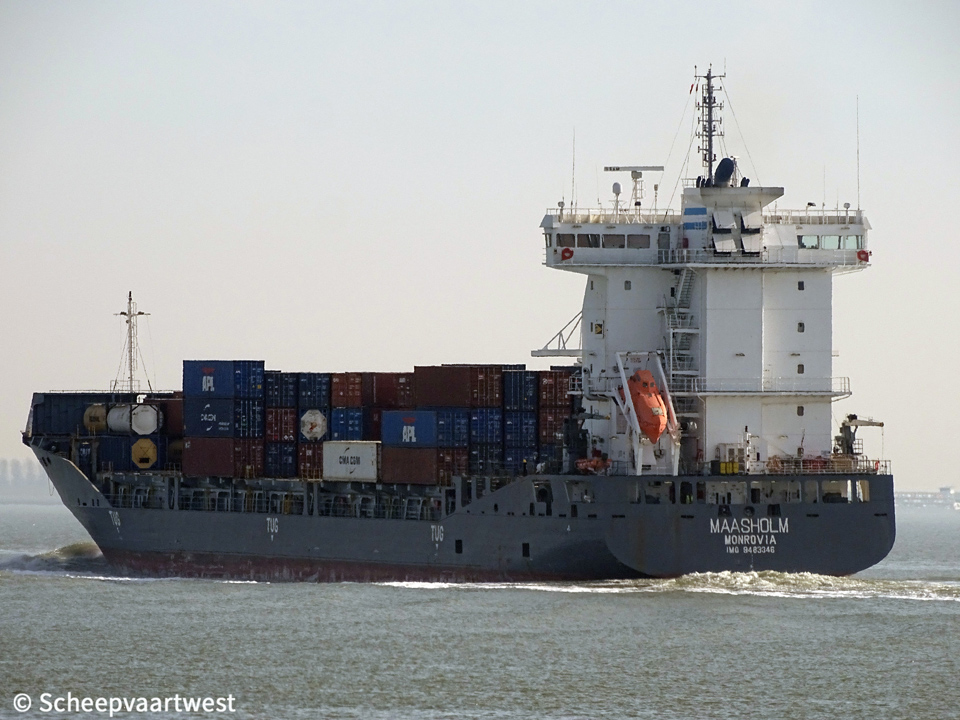

| Westerschelde 17/02/19 |
|
Name |
MAASHOLM |
|
Type |
Fully celled container vessel gearless |
|
IMO-number |
9483346 |
|
Call sign |
D5AI2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
10.585 t |
|
DWT |
Summer: 13.031 |
|
NT |
5.372 t |
|
Number of 20ft containers |
In holds: 322 units - 4 tiers On Deck: 714 units - 8 tiers Total: 1036 units |
|
Container capacity 14t |
740 |
|
Reefer plugs |
250 whereof 114 in Hold and 136 on Deck (all 40´) - 7 KW, 450 Volt, 60 Hz |
|
Length |
151,73 m overall 142,42 m between perpendiculars |
|
Breadth |
23,40 m |
|
Draught |
Max: 8,00 m |
|
Freeboard |
1.510 m |
|
Depth |
9,51 m |
|
Speed |
Max: 18,5 knots Eco: 17,0 knots |
|
Built |
2012 |
|
Date of completion |
28/06/2012 |
|
Builder |
Jiangdong Shipyard Of China Changjiang Shipping Group Wuhu China |
|
Yard number |
JD1000TEU-11 |
|
Hull material |
Steel |
|
Hull type |
Single hull, double bottom |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L46/60B - 4 stroke single acting 8 cylinder 480 x 600 mm combustion engine 9.600 kW / 13.052 hp at 500 rpm Builder: MAN Diesel SE, Augsburg - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 120 rpm |
|
Boilers |
1x CHM Mission OC 126,00 m² - 7,0 bar |
|
Shaft generator |
1x 2.125 kVA - 1.700 kW |
|
Generators |
3x MAN Lindenberg D2842LE 301 main diesel generatorsets each 625 kVA - 500 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 394 kVA - 315 kW - 550 hp |
|
Bow thruster |
1x Tunnel thruster 800 kW/ 1.088 bhp, forward |
|
Number of holds |
3 Hold 1: Divided by a crosswise beam in middle of hold 1x access 12,48 x 15,72 m 1x access 12,48 x 20,66 m Hold 2: No Beam 1x access 28,86 x 20,66 m Hold 3: divided by a crosswise beam in middle of hold 1x access 12,48 x 15,72 m 1x access 12,48 x 20,66 m |
|
Number of hatches |
3 |
|
Hatch type |
Hydraulic operated flap covers |
|
Tank capacities |
HFO abt: 976,4 m³ MGO abt: 128 m³ Luboil storage abt: 37,1 m³ Fresh water abt: 149,9 m³ Ballast water: 5.500 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Brise Schiffahrts GmbH Schaarsteinwegsbrücke 2 D - 20459 Hamburg Germany |
|
Operator |
Brise Schiffahrts GmbH |
|
Registered owner |
MS 'MAASHOLM' Schifffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
2020 Einstein Cyprus, Limassol - Call sign: 5BQC5 Reg. owner: Reederei Rambow GmbH & Co.KG MS 'Einstein' |
|
Latest data adjustment |
28 February 2021 |
