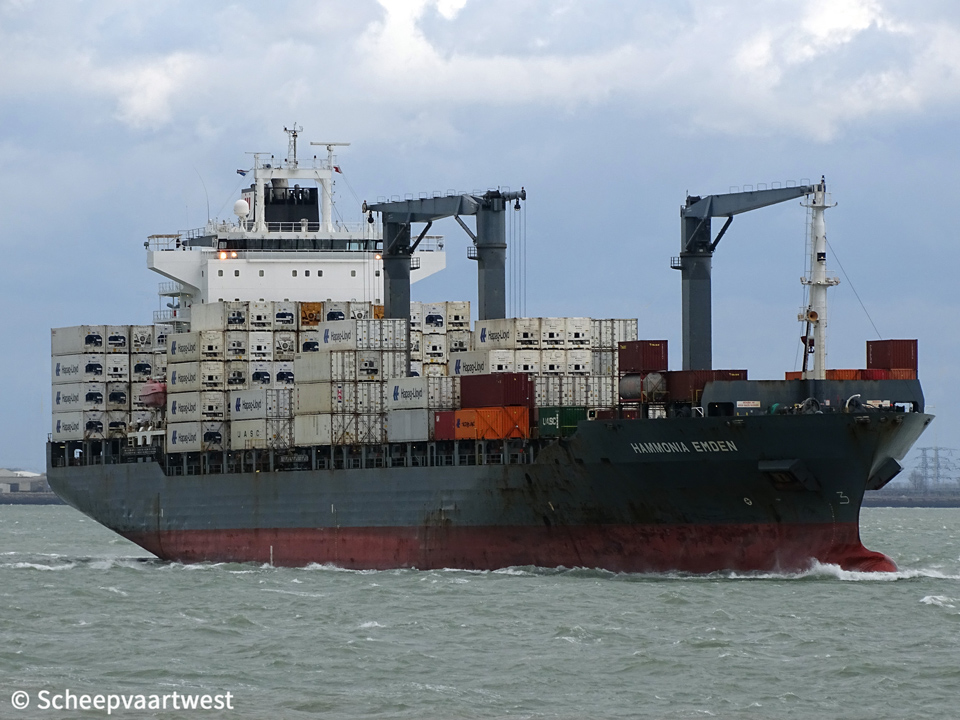

Hammonia Emden 02

Westerschelde 20 February 2020

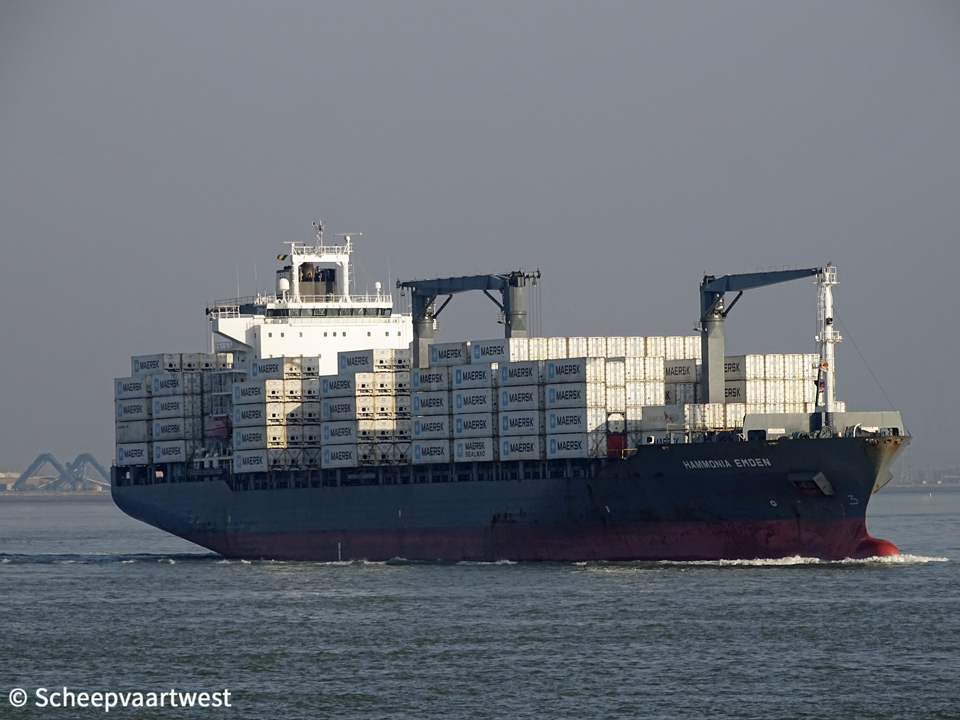

Hammonia Emden 01
Westerschelde 16/02/19













Name

HAMMONIA EMDEN

Previous names

2005 Build as:Hammonia Emden

2006 - 2011 Libra Ipanema

2011 - 2014 Emirates Nile

2014 - 2020 Hammonia Emden

Type

Cellular containership

IMO-number

9326823

Call sign

A8IF3

Flag

Liberia

Port of registry

Monrovia

GT

26.836 t registered

DWT

Summer: 34.248,2 t

NT

12.743 t registered

Number of 20ft containers

2.556

Number of 40ft containers

1.240

Container capacity 14t

1.850

Reefer capacity

600

Length

210,07 m overall

Breadth

30,23 m extreme

Moulded L x B x D

199,00 x 30,20 x 16,70 m

Registered L x B x D

200,55 x 30,20 x 16,70 m

Freeboard

Summer: 5.240 mm

Draught

Summer: 11,52 m

Depth

16,70 m moulded

Speed

Max: 21,1 knots

Eco: 11,0 knots

Built

2006

Keel laid

03/06/2005

Launch date

31/10/2005

Date of completion

06/01/2006

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1755

Hull material

Steel

Main engine

1x Wärtsilä 7RTA72U-B - 2 stroke single acting 7 cylinder 720 x 2.500 mm combustion engine 21.560 kW at 99,0 rpm

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 675 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler- 8,0 bar

Evaporation: 5,00 t/h

Manufacturer: Kangrim Industries Co., Ltd.- South Korea

Generators

4x MAN-B&W 8L28/32H main diesel generatorsets each 1.693 kW

Bow thruster

1.000 kW

Tank capacities

Fuel oil: 4.344,10 m³

Fresh water: 265,40 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Deck cranes - SWL 40,0 t each

Manager

Hammonia Reederei GmbH & Co. KG

22763 Hamburg

Germany

Operator

XT Group

Registered owner

Queen Red Holdings Ltd.

Renamed

06/2020 Emden

Latest data adjustment

16 July 2020
