Westerschelde 25 June 2015 |
|
Name |

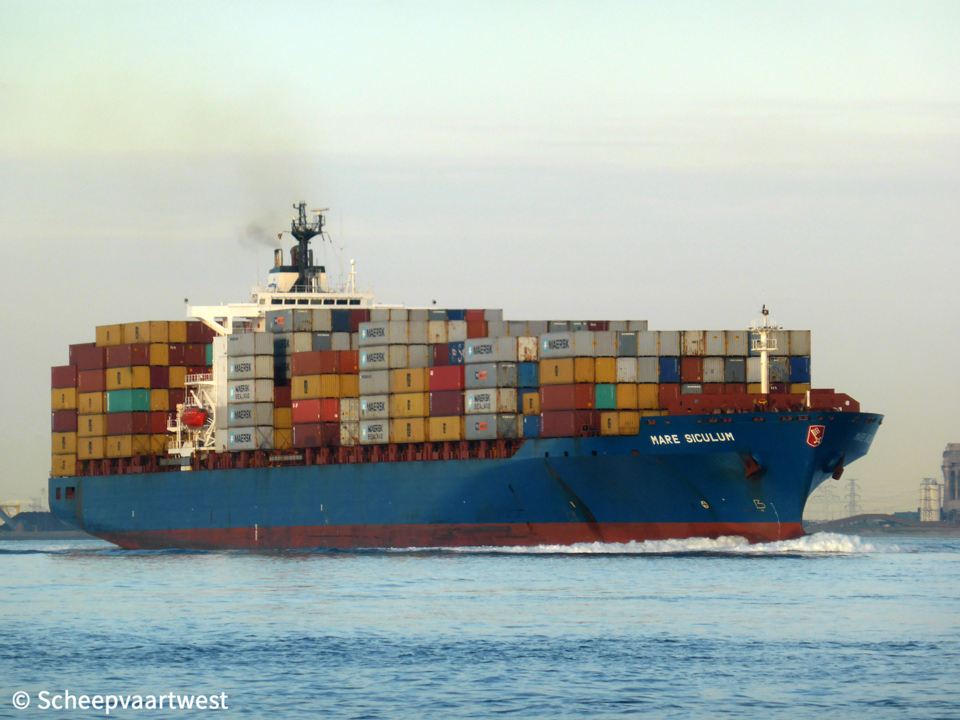

MARE SICULUM |
|
Previous names |
1998 - 12/1998 Mare Siculum 12/1998 - 06/2004 Weser Bridge 06/2004 - 11/2005 P&O Nedlloyd Tiger 11/2005 - 03/2006 Maersk Tiger 03/2006 - 11/2007 Mumbai Exoress 11/2007 - 05/2009 Maersk Dulles 05/2009 - 12/2013 Alvsborg Bridge |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9169134 |
|
Call sign |
V2AH1 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
40.306 t |
|
DWT |
Summer: 52.357 t |
|
NT |
24.819 t |
|
Number of 20ft containers |
In hold: 1.652 On deck: 2.386 Total: 4.038 |
|
Container capacity 14t |
2.863 |
|
Reefer capacity |
405 |
|
Length |
260,66 m overall 248,05 m registered |
|
Breadth |
32,25 m registered |
|
Draught |
Max: 12,50 m |
|
Depth |
19,30 m moulded |
|
Speed |
Max: 22,5 knots |
|
Built |
1998 |
|
Keel laid |
20/05/1998 |
|
Launch date |
12/09/1998 |
|
Date of completion |
04/12/1998 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1102 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom type double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 9RTA84C - 2 stroke 9 cylinder combustion 840 x 2.400 mm engine 36.450 kW at 102,0 rpm propulsion acts directly on the propellershaft Starter type: Compressed air direct Build: 1998 Manufacturer: Hyundai Engine & Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 7,8 bar Heating surface: 35,0 m² Heating surface: 277,0 m² Build: 1998 Manufacturer: KangRim Industries Co., Ltd. (1st Factory) |
|
Electric installations |
1x Plant 440/220 V - 1.957 kVA 1x Plant 440/220 V - 1.957 kVA 1x Plant 440/220 V - 1.957 kVA 1x Plant 440 V - 188 kVA |
|
Generators |
3x Main diesel generatorset each 1.566 kW / 1.957 kVA |
|
Emergency generator |
1x Diesel generatorset 188 kVA |
|
Compressed air receivers |
2x Receivers each 8.900 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster Brunvoll 1.500 kW, forward |
|
Number of holds |
7 |
|
Tank capacities |
Water ballast: 11.331 m³ Fuel: 5.907 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Chain length: 687,50 m |
|
Manager |
Hansa Mare Reederei GmbH & Co., KG Am Wall 58-60 28195 Bremen Germany |
|
Owner |
MS "Mare Siculum" Schiffahrtsges. mbH & Co. KG Am Wall 58-60 28195 Bremen Germany |
|
Renamed |
01/2017 - 02/2017 Mare Siculum I |
|
Scrapped |
03/2017 as Anita Alang Shipbreaking Yards - India |
|
Latest data adjustment |
24 July 2019 |
