Westerschelde 23 April 2019 |
 |
 |
 |
||
| Westerschelde 28/02/20 | Westerschelde 28/02/20 | Westerschelde 03/07/18 | ||
|
Name |

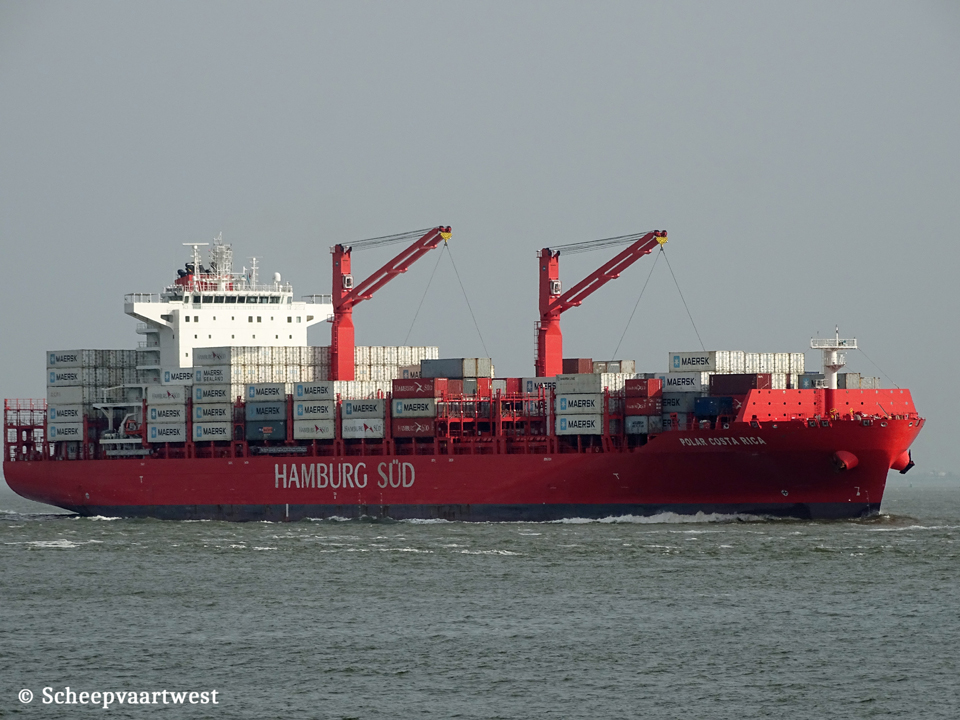

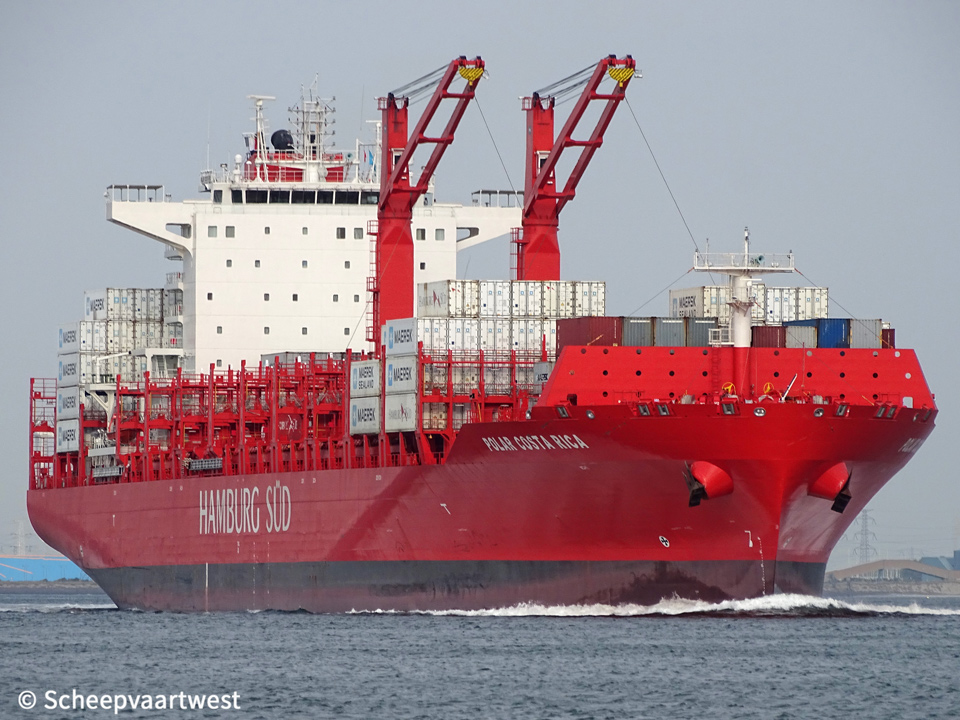

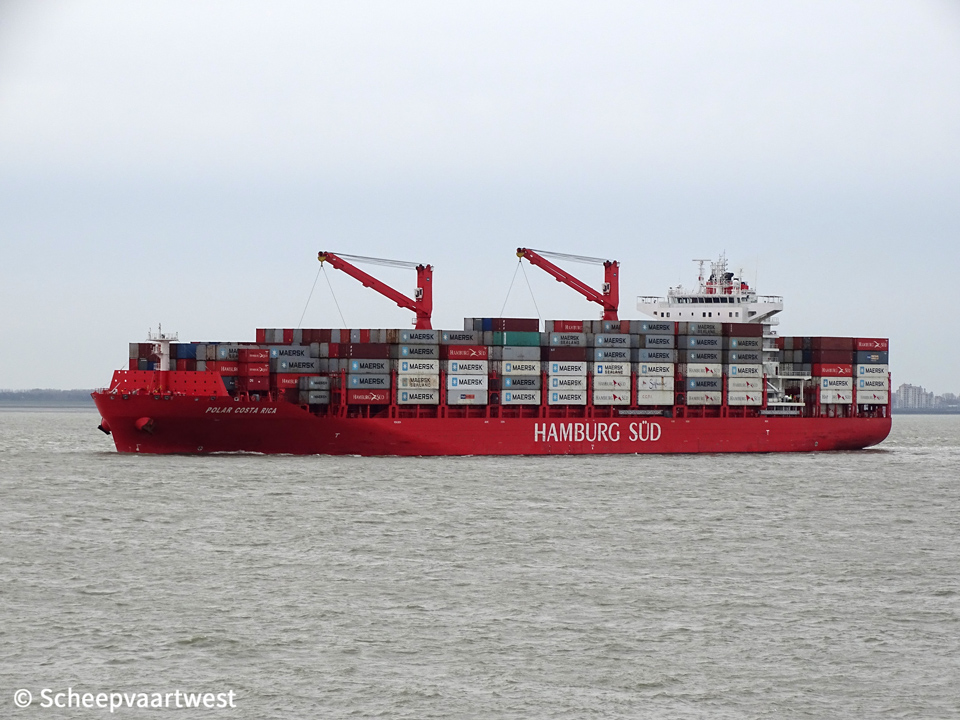

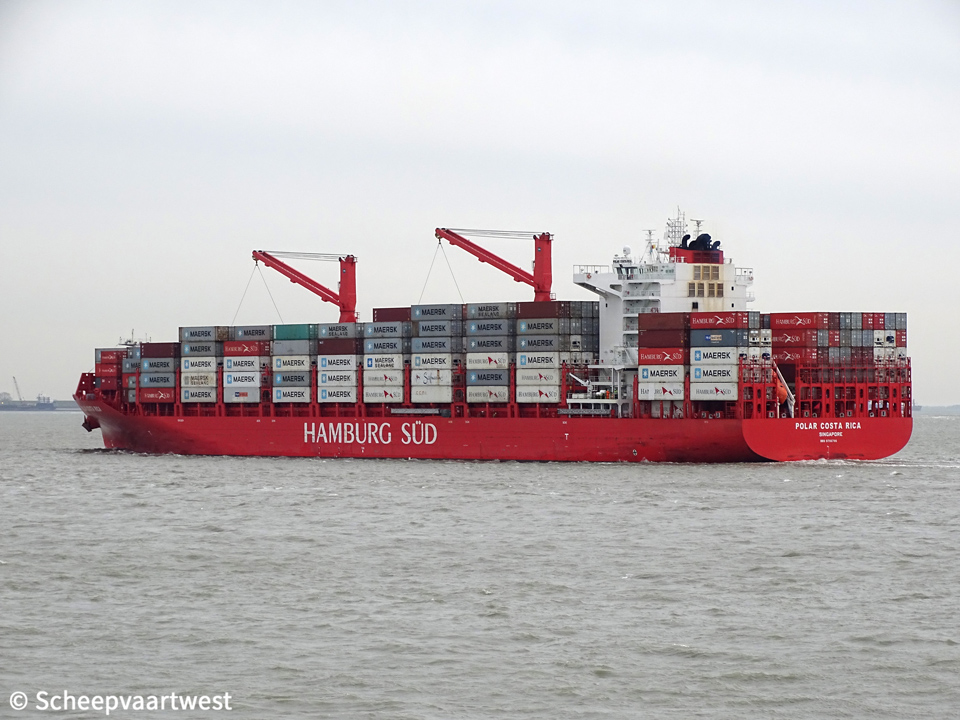

POLAR COSTA RICA |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9786786 |
|
Call sign |
9V9325 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
12/2017 - 04/2018 Republic of Liberia, Monrovia - Call sign: D5OZ3 |
|
GT |
43.328 t registered Suez: 45.663,24 t |
|
DWT |
52.119,8 t |
|
NT |
17.495 t registered Panama: 36.023 t Suez: 40.184,6 t |
|
Displacement |
69.815,1 t |
|
Number of 20ft containers |
3.884 |
|
Reefer capacity |
870 |
|
Length |
230,00 m overall 220,80 m between perpendiculars |
|
Breadth |
37,30 m moulded |
|
Draught |
Max: 12,50 m |
|
Freeboard |
7.139 mm |
|
Depth |
19,60 m moulded |
|
Speed |
18,0 knots |
|
Built |
2017 |
|
Keel laid |
24/12/2015 |
|
Launch date |
17/07/2017 |
|
Delivery date |
06/10/2017 |
|
Builder |
Jiangsu New Yangzi Shipbuilding Co., Ltd. Jingjiang Park Of Jiangyin Economic Development Zone Of Jiangsu Province, 214532 China |
|
Yard number |
YZJ2015-1203 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Watertight bulkheads |
8 |
|
Main engine |
1x MAN-B&W/HHI 6S70ME-C8.5 - 6 cylinder 700 x 2.800 mm combustion engine 19.620 kW at 91,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
1x Composite boiler - 9,0 bar 1x Unfired exhaust gas boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
1x Daihatsu 6DE33 main diesel generatorset 3.080 kW 3x Daihatsu 8DE33 main diesel generatorsets each 4.520 kW Manufacturer: HHI Electro Electric System |
|
Bow thrusters |
1x 1.500 kW, forward 1x 1.500 kW, aft |
|
Number of holds |
5 |
|
Hold Capacity |
77.177,05 m³ |
|
Number of tanks |
Ballast: 26 Fuel oil: 14 Lubricating oil: 8 Waste water: 5 Sludge: 5 Diesel oil: 4 Fresh water: 4 Chain: 2 Sewage: 1 |
|
Tank capacities 100% |
Diesel oil: 434,68 m³ Fresh water: 469;12 m³ Fuel Oil: 4.830,64 m³ Lube Oil: 297,46 m³ Tank Ballast: 20.288,23 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 6,3 t Manufacturer: Jiangyin Jianghai Mechnical Manufacture Co.,Ltd. 1x Hose crane - SWL 4,0 t Manufacturer: Taizhou Kaixin Shipping Machine Co., Ltd. 1x Monorail Provision crane - SWL 6,2 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
2x Deck cranes - SWL 44,0 t each Manufacturer: TTS Bohai Machinery Dalian Co., Ltd. |
|
Manager |
Columbus Shipmanagement GmbH Willy-Brandt-Str. 59-61 Hamburg, 20457 Germany |
|
Operator |
Hamburg Süd Hamburg Südamerikanische Dampfschifffahrts-Gesellschaft A/S & Co KG Willy-Brandt-Straße 59-65 20457 Hamburg Germany |
|
Registered owner |
A.P. Moller Singapore Pte. Ltd. 200 Cantonment Road #10-00 Southpoint Singapore, 089763 Republic of Singapore |
|
Previous owners |
Reederei Monte GmbH & Co KG |
|
Latest data adjustment |
11 April 2022 |
