Ital Ordine 01

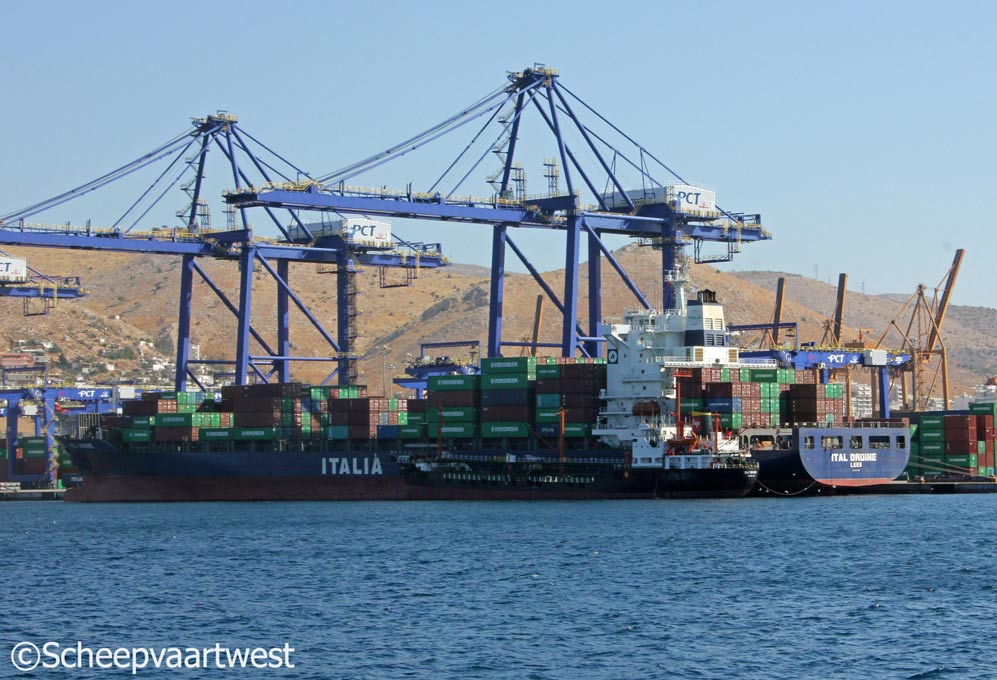

Perama - Greece 03 September 2012



Name

ITAL ORDINE

Previous names

Frisia Göteborg

Type

Cellular containership

IMO-number

9337250

Call sign

DMYL

Flag

Germany

Previous flags

Liberia

Port of registry

Leer

GT

27.779 t

DWT

39.345 t

NT

14.769 t

Number of 20ft containers

2.824

Container capacity 14t

2.030

Reefer capacity

586

Length

222,15 m overall

212,18 m registered

Breadth

30,00 m registered

Draught

12,00 m

Forecastle

27,35 m

Freeboard

4.837 mm

Depth

16,80 m moulded

Speed

23,0 knots

Built

2006

Keel laid

14.07.2006

Launch date

27.09.2006

Date of completion

17.11.2006

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381, Bangeo-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

0448

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 7K80MC-C - 2 stroke 7 cylinder diesel 800 x 2.300 mm engine - 25.279 kW at 104,0 rpm

Year of manufacture: 2006

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 28,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 695,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installation

4x Plants each 450/230 V - 2.187,5 kVA

1x Plant 450 V - 187,5 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 8L28/32H main diesel generatorsets each 2.187,5 kVA

Emergency generator

1x Diesel generatorset 187.5 kVA

Compressed air receivers

2x Receivers each 9.000 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 1.100 kW, forward

Anchor equipment

3x Anchors weight each 9.900 kg

Chain length: 660,00 m

Handling gear

Gearless

Crew size

26

Manager

Hartmann Schiffahrts GmbH & Co. KG
Königstr. 23
26789 Leer
Federal Republic of Germany

Registered owner

Container-Schiffahrt GmbH & Co. MS "FRISIA GÖTEBORG" KG
Königstr. 23
26789 Leer
Federal Republic of Germany
