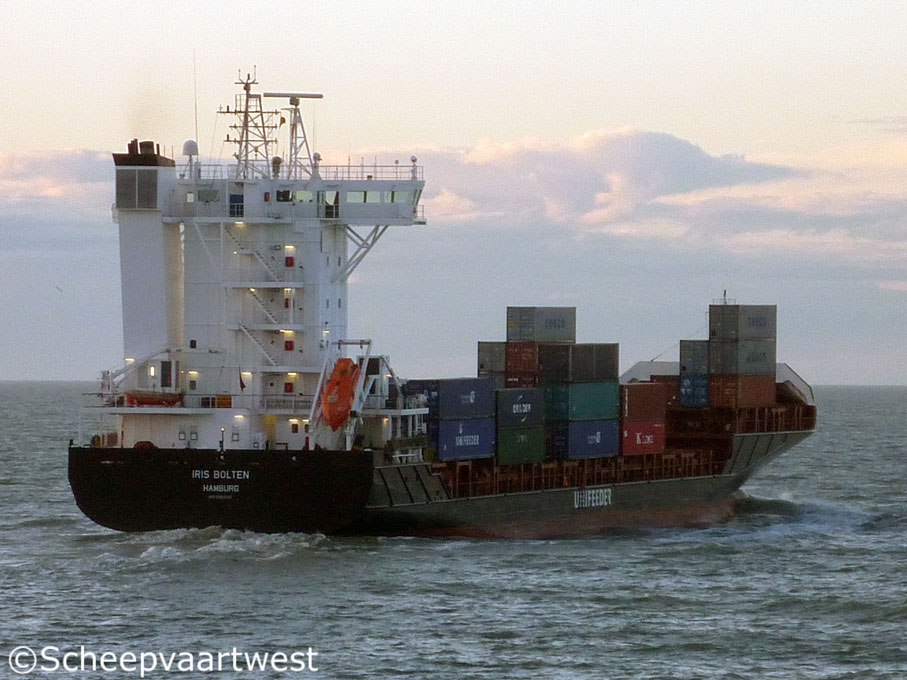

| Westerschelde 19 January 2012 |
 |
 |
 |
 |
|||

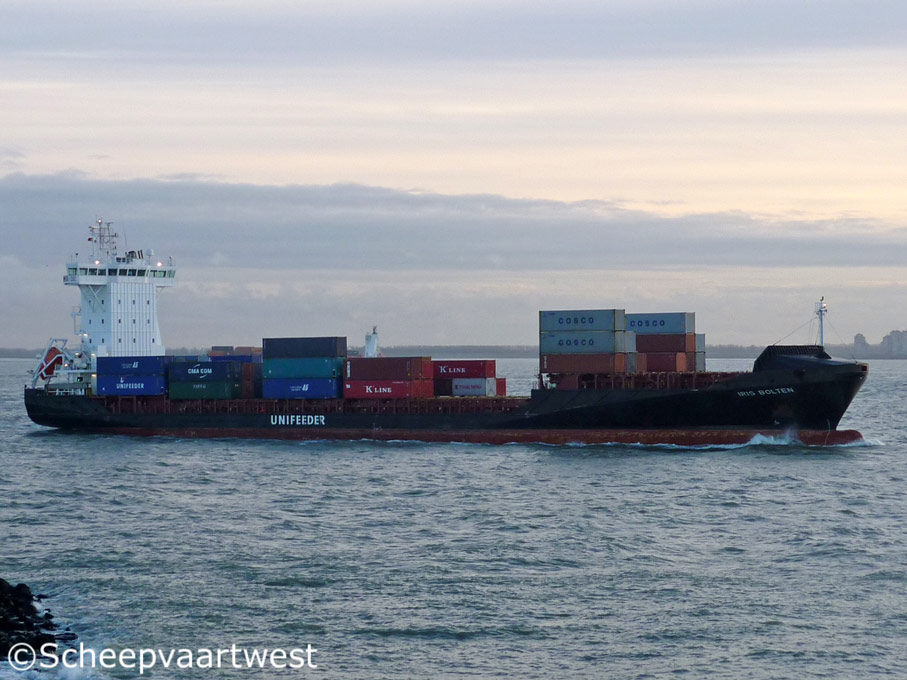

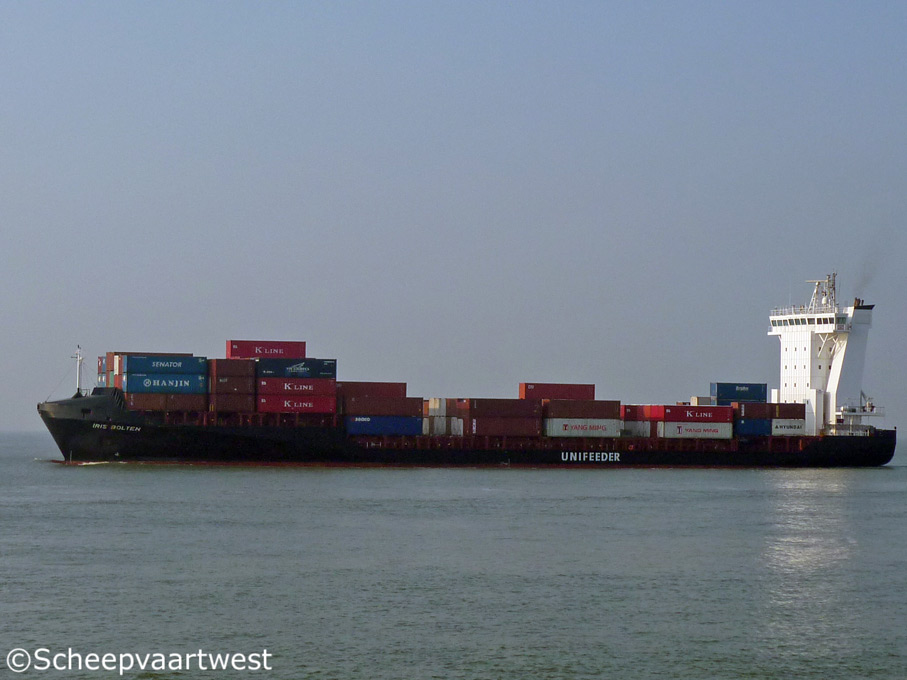

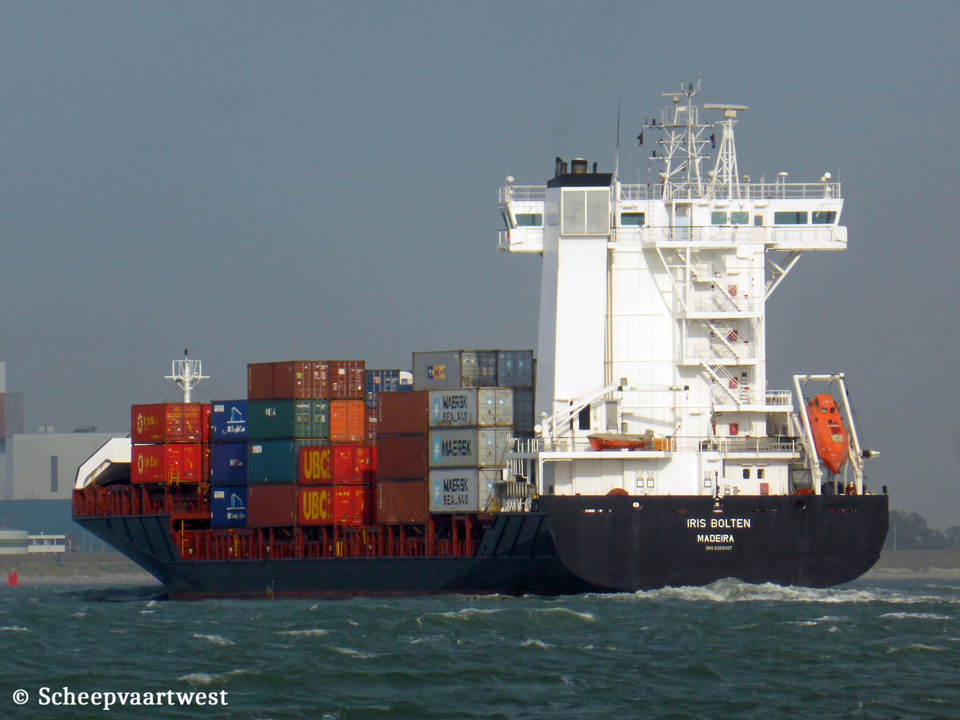

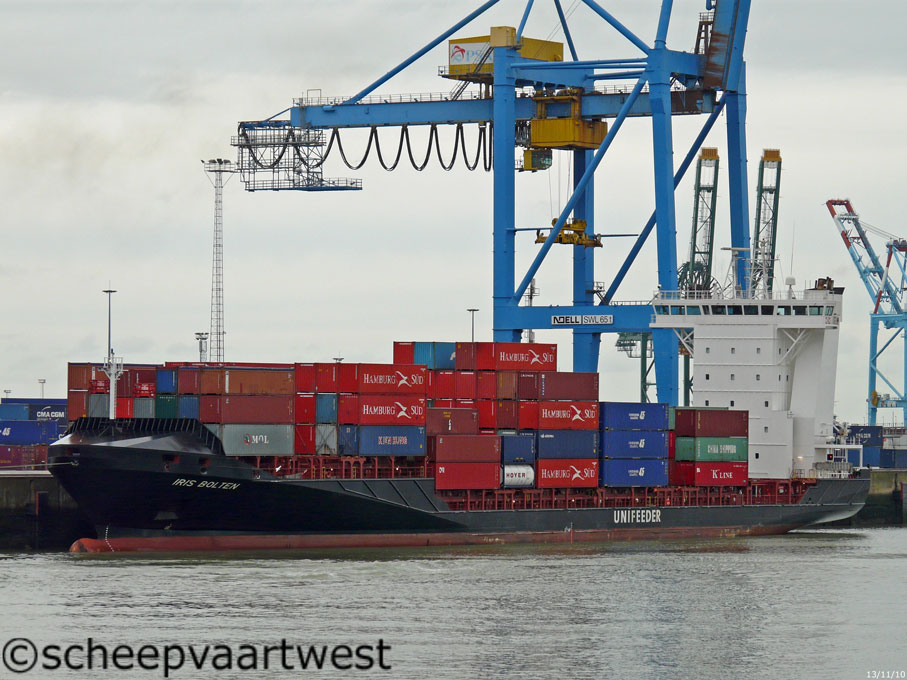

| Westerschelde 19/01/12 | Westerschelde 31/01/12 | Zeebrugge 13/11/10 | Westerschelde 04/07/15 | |||
|
Name |
IRIS BOLTEN |
|
Type |
Gearless cellular container vessel |
|
IMO-number |
9369007 |
|
Call sign |
CQHB |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2008 - 2012 Germany, Hamburg - Call sign: DFND2 2012 - 2014 Cyprus, Limassol- Call sign: 5BCY2 |
|
GT |
8.273 t |
|
DWT |
11.051 t |
|
NT |
4.002 t |
|
Number of 20ft containers |
In hold: 218 On deck: 756 Total: 974 |
|
Container capacity at 14t |
584 |
|
Reefer capacity |
170 |
|
Length |
139,60 m overall 133,65 m registered |
|
Breadth |
22,20 m registered |
|
Draught |
Summer: 7,38 m |
|
Forecastle |
38,50 m |
|
Poop |
10,64 m |
|
Speed |
18,1 knots |
|
Freeboard |
1.856 mm |
|
Depth |
9,50 m moulded |
|
Built |
2008 |
|
Keel laid |
05/09/2007 |
|
Launch date |
08/01/2008 |
|
Date of completion |
17/03/2008 |
|
Builder |
Detlef Hegemann Rolandwerft GmbH & Co. KG Industriestr. 6 27804 Berne Federal Republic of Germany |
|
Yard number |
241 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine Mcr 7.950 kW / 10.808 hp at 500 rpm Year of manufacture: 2008 Manufacturer: Caterpillar Motoren Rostock GmbH Am Seehafen 1 18147 Rostock Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 174 rpm |
|
Boiler |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 15,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 172,0 m² Year of manufacture: 2007 Manufacturer: Aalborg Industries A/S Division Boiler Production Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 450/230 V - 546 kVA 1x Plant 450/ 230 V - 546 kVA 1x Plant 450 V - 1.495 kVA 1x Plant 450 V - 546 kVA 1x Plant 24 V - 105 Ah 1x Plant 24 V - 105 Ah 1x Plant 24 V -135 Ah 1x Plant 24 V - 225 Ah |
|
Shaft generator |
1.200 kW / 1.495 kVA |
|
Generators |
2x Main diesel generatorsets each 437 kW / 546 kVA |
|
Emergency generator |
1x Diesel generatorset 437 kW / 546 kVA |
|
Batteries |
2x Batteries for tart emergency engine each 225 Ah 1x Battery for UPS radio 135 Ah 1x Battery for UPS navigation 105 Ah 1x Battery for automation 105 Ah |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 1.000 kW / 1.360 bhp, forward |
|
Number of holds |
3 Hold 1: 28,91 x 16,06 x 10,76 m Hold 2: 29,61 x 18,70 x 10,76 m Hold 3: 29,61 x 18,70 x 10,76 m |
|
Number of hatches |
3 Hatch 1: 27,88 x 15,90 m Hatch 2: 28,86 x 18,70 m Hatch 3: 28,86 x 18,70 m |
|
Tank capacities |
HFO: 80 m³ Diesel oil: 160 m³ Ballast: 4.547 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m |
|
Cargo gear |
None |
|
Crew size |
12 |
|
Manager |
Aug. Bolten Wm. Miller's Nachfolger (GmbH & Co.) KG 20457 Hamburg Federal Republic of Germany |
|
Operator |
Unifeeder A/S Shipping Huset Hveensgade 1 DK-8100 Århus C Denmark |
|
Owner |
MS "IRIS BOLTEN" Schifffahrtsges. mbH & Co. KG Mattentwiete 8 20457 Hamburg Federal Republic of Germany |
|
Renamed |
2018 Elbstrom Portugal, Madeira - Call sign: CQHB Owner: Elbsurfer Gmbh & Co., KG Manager: USC Barnkrug GmbH & Co., KG; Drochtersen - Germany |
|
Latest data adjustment |
16 September 2023 |
