Iduna

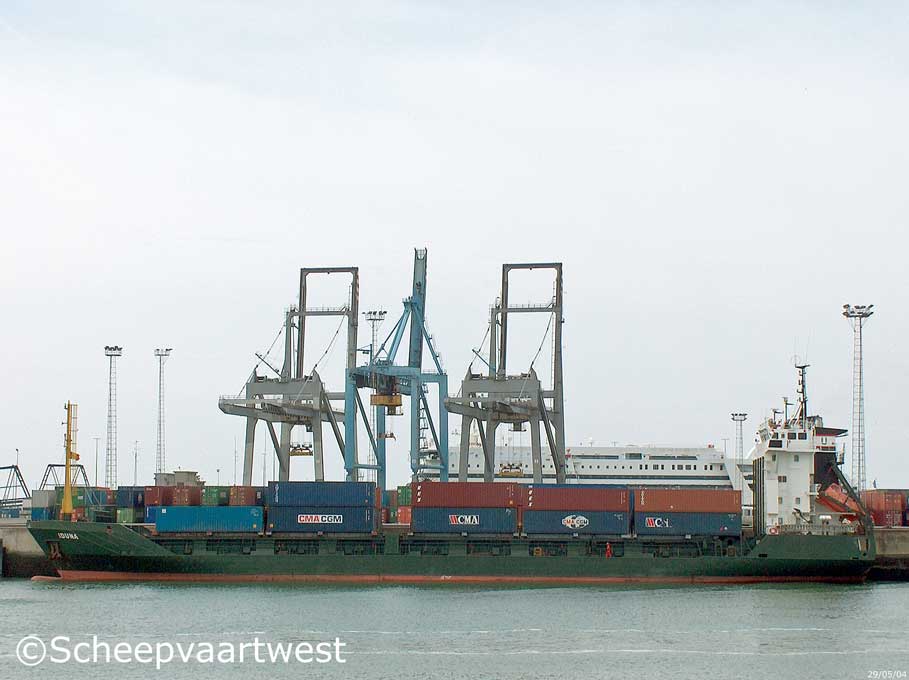

Zeebrugge 29 May 2004



Name

IDUNA

Previous names

01.01.1994 Iduna

01.01.1995 CMB Iduna

Type

Containership - Fitted

IMO-number

9033713

Call sign

V2OE4

Flag

Antigua & Barbuda

GT

3.585 t

DWT

Summer: 4.150 t

NT

1.715 t

Number of 20ft containers

325

Reefer point

50 reefer plugs

Length

98,80 m overall

90,70 m between perpendiculars

91,61 m registered

Breadth

16,20 m overall

Draught

Summer: 5,398 m

Forecastle

8,00 m

Freeboard

2.400 mm

Depth

7,80 m moulded

Speed

14,6 knots

Built

1991

Keel laid

16.05.1991

Launch date

16.11.1991

First movement

21.12.1991

Date of completion

12.1991

Builder

Schiffswerft und Maschinenfabrik Cassens GmbH
II. Hafeneinschnitt
26723 Emden
Federal Republic of Germany

Yard number

0192

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Partly double bottom

Watertight bulkheads

5

Continuous decks

2

Propelling engine

1x MAK 8 M 453 C - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engine - 1.798 kW

Year of manufacture: 1991

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 17,5 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 57,8 m²

Year of Manufacture: 1991

Manufacturer: WSA Wärmetechnik GmbH
Werner-von-Siemens-Str. 96
76694 Forst/Baden
Federal Republic of Germany

Electric installations

1x 400/220 V - 576 kVA

1x 400 V - 625 kVA

1x 400 V - 97 kVA

Shaft generator

1x 625 kVA / 500 kW

Generators

2x Main diesel generatorsets each 288 kVA / 230,4 kW

Emergency generator

1x Diesel generatorset 97 kVA

Compressed air receivers

2x Receivers each 710 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 275 kW, forward

Ballast capacity

2.004 m³

Anchor equipment

3x Anchors weight each 2.850 kg

Chain Length: 495,00 m

Crew size

12

Cargo Gear

Gear less

Operator

CMA CGM

Renamed

01.01.2006 Sun Vita
