| Zeebrugge 14 December 2008 |
|
Name |

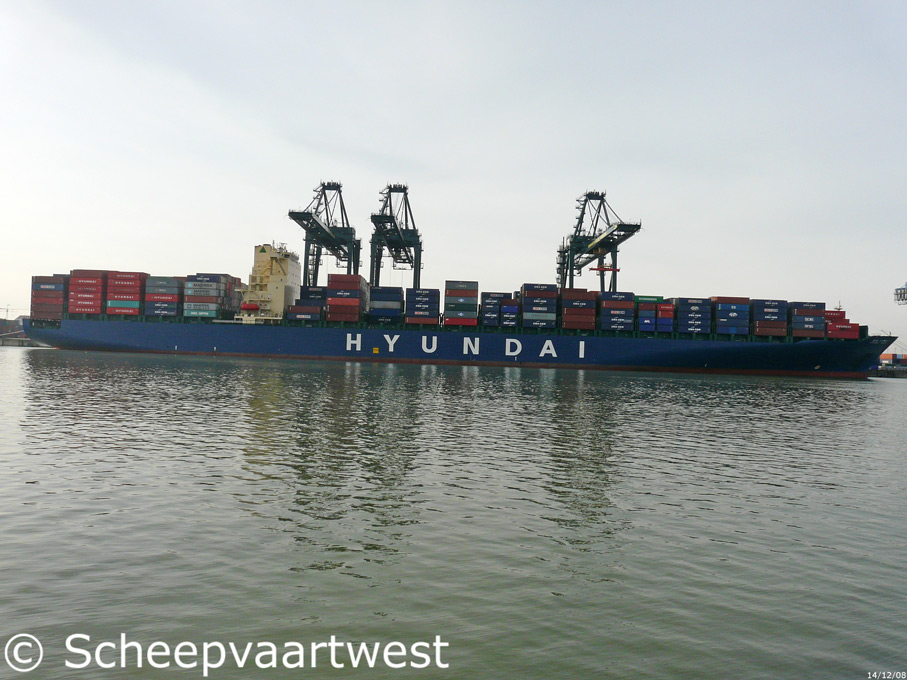

HYUNDAI BRAVE |
|
Type |
Cellular Containership |
|
IMO-number |
9346304 |
|
Call sign |
3EMZ5 |
|
Flag |
Republic of Panama |
|
Previous flag |
2007 South Korea |
|
Port of registry |
Panama City |
|
GT |
94.511 t |
|
DWT |
Summer: 99.123 t |
|
NT |
51.638 t |
|
Number of 20ft containers |
8.652 |
|
Container capacity at 14t |
6.310 |
|
Reefer containers |
700 |
|
Length |
339,60 m overall 324,82 m between perpendiculars |
|
Breadth |
45,64 m overall |
|
Reg. Dimensions L x B x D |
324,82 X 45,60 X 21,01 m |
|
Rule dimensions L x B x D |
318,40 X 45,60 X 24,60 m |
|
Draught |
Summer: 14,526 m |
|
Freeboard |
Summer: 10.177 mm |
|
Depth |
24,60 m |
|
Speed |
Max.: 27,0 knots |
|
Built |
2008 |
|
Keel laid |
12.06.2007 |
|
Launch date |
31.08.2007 |
|
Date of completion |
04.02.2008 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. #1, Cheonha-Dong, Dong-Gu |
|
Yard number |
1810 |
|
Hull material |
Steel |
|
Hull construction |
Double bottom Double side |
|
Main engine |
Wärtsilä Sulzer 14RT-Flex96C-B - 2 stroke single acting 14 cylinder 960 x 2.500 mm diesel engine- 80.080 kW at 102,0 rpm Builder: Hyundai Heavy Ind. Engine & Machinery Ulsan - South Korea |
|
Number of screws |
1 |
|
Auxiliary boilers |
1x Auxiliary water tube boiler - 8,0 bar Heating surface: 77,5 m² 1 x Auxiliary Exhaust gas boiler - 11,0 bar Heating surface: 338,2 m² Builder: Kang Rim Ind. CO. LTD. Changwon - South Korea |
|
Shaft generators |
2x 4.125 kVA - 6.600 Volt |
|
Generators |
4x MAN-B&W 7L32/40 main diesel generatorsets each 3.265 kW |
|
Emergency generator |
1x Scania DC12 diesel generatorset |
|
Anchor chain |
Length: 385 m Diameter: 111 mm |
|
Hatchway number & size |
1 - 37,92 x 30,59 m 2 - 25,28 x 40,90 m 3 - 25,28 x 40,90 m 4 - 25,28 x 40,90 m 5 - 25,28 x 40,90 m 6 - 25,28 x 40,90 m 7 - 25,28 x 40,90 m 8 - 25,28 x 40,90 m 9 - 25,28 x 40,90 m |
|
Cargo gear |
Gearless |
|
Crew |
24 |
|
Manager |
Hyundai Merchant Marine Co. Ltd. |
|
Owner as completed |
Hyundai Merchant Marine Co. Ltd. |
|
Owner |
Hyundai Merchant Marine Co. Ltd. |
