Madison Maersk IMO 9619945 07

Westerschelde 17 January 2020

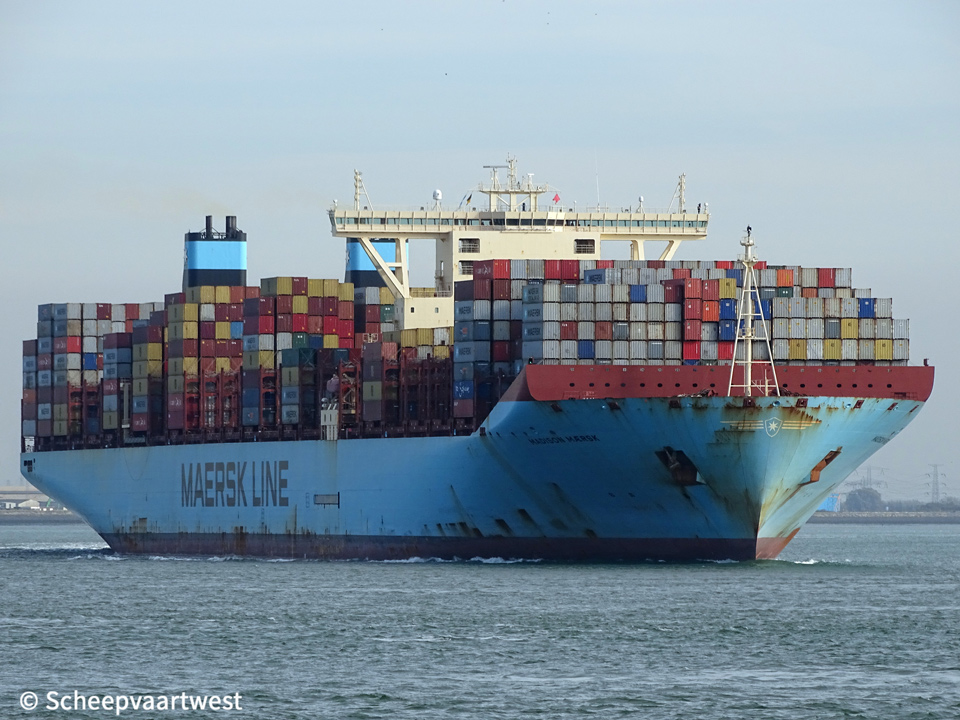

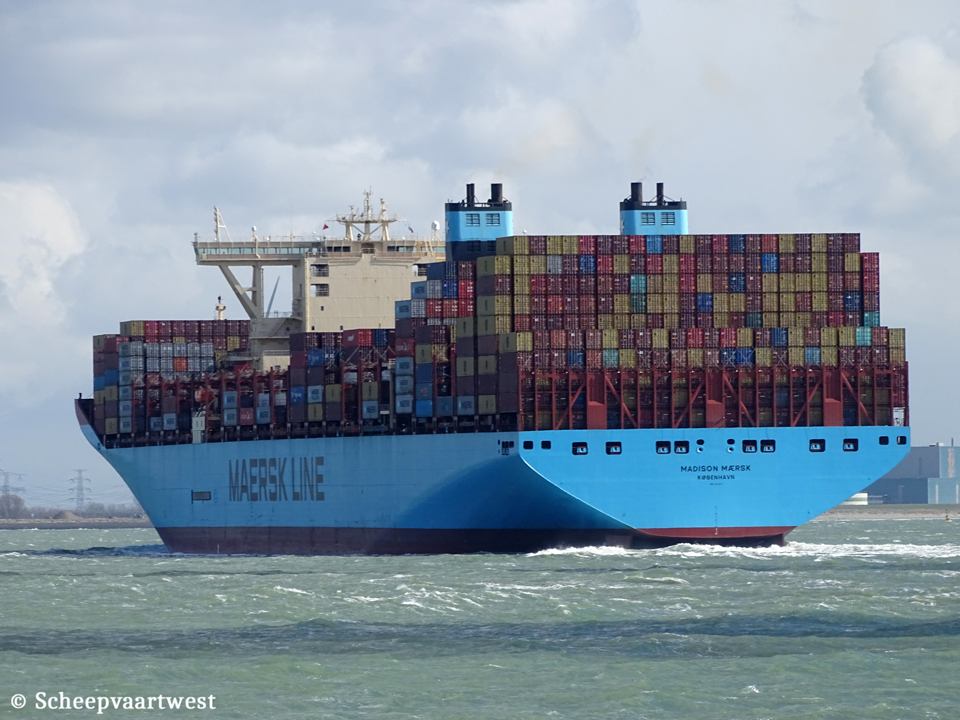

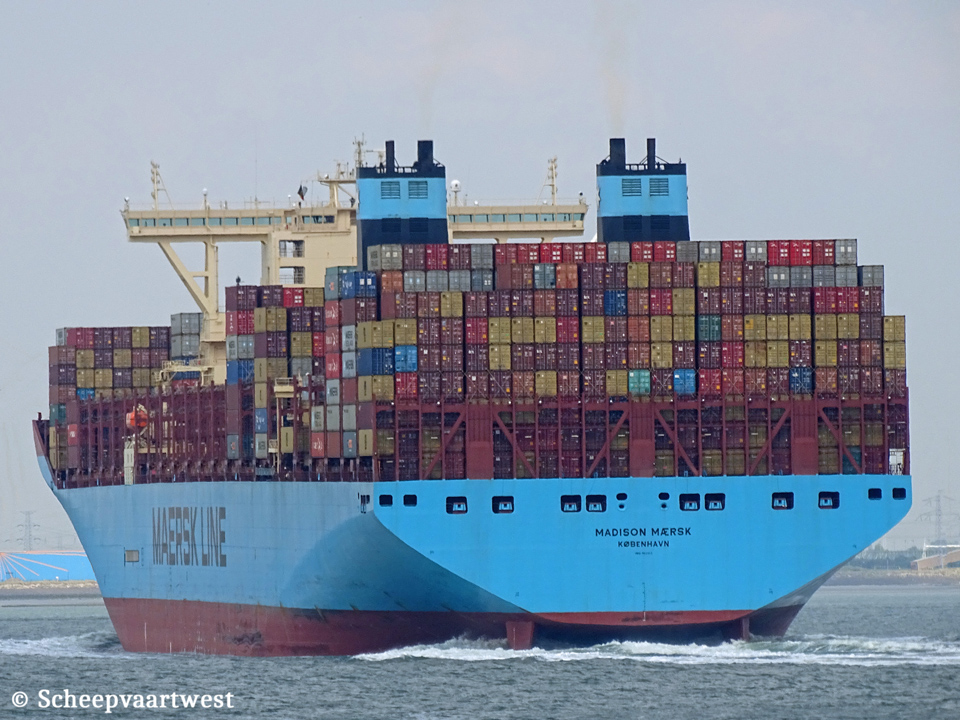

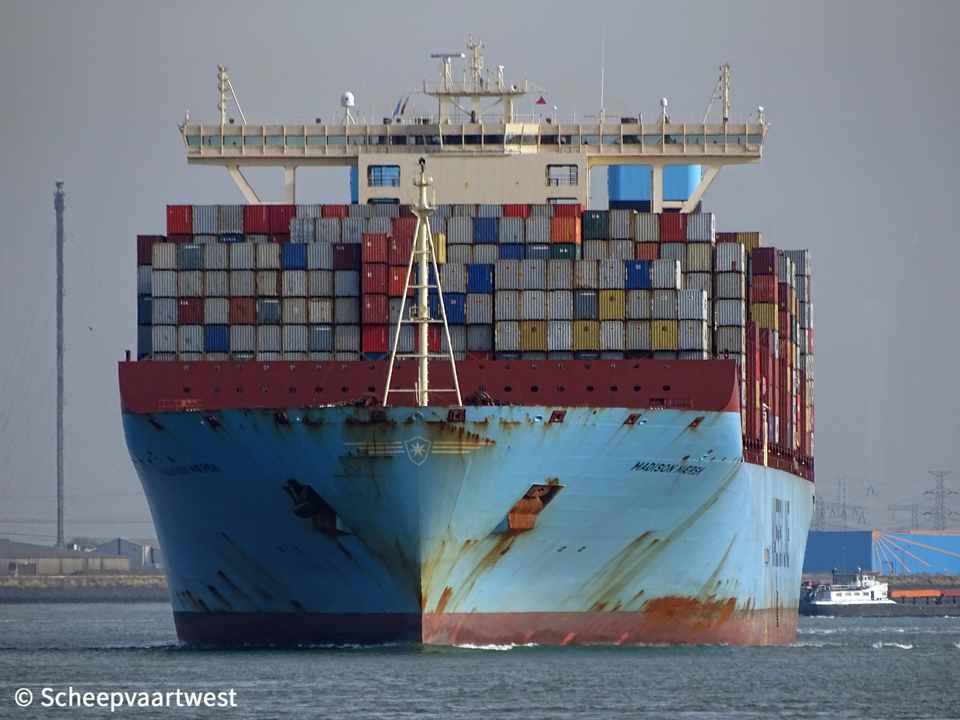

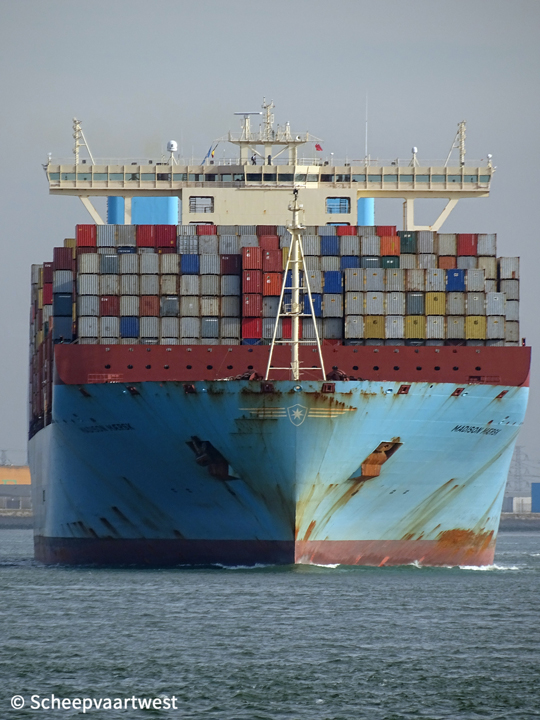

Madison Maersk IMO 9619945 08   Madison Maersk 04   Madison Maersk 02   Madison Maersk 03   Madison Maersk IMO 9619945 05   Madison Maersk IMO 9619945 06
Westerschelde 17/01/20   Westerschelde 03/11/18 Westerschelde 03/11/18 WS 03/11/18 Westerschelde 29/05/19 Westerschelde 17/03/19

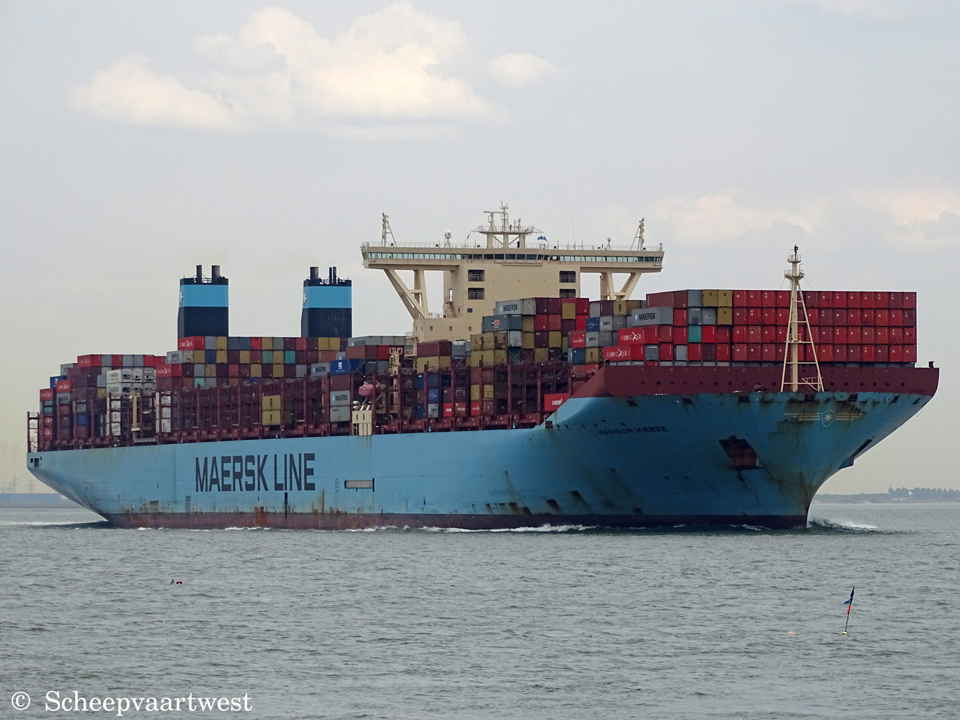

Madison Maersk 01
Westerschelde 07/08/18


Name

MADISON MAERSK (MADISON MÆRSK)

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9619945

Call sign

OWJG2

Flag

Denmark

Port of registry

København

GT

194.849 t registered

Suez: 199.185,85 t

DWT

Summer: 194.395 t

NT

79.120 t registered

Suez: 174.267,54 t

Number of 20ft containers

18.270

Reefer plug

1.800

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Max: 16,00 m

Freeboard

6.845 mm

Depth

30,30 m

Speed

Max: 23,0 knots

Built

2014

Keel laid

20/05/2013

Launch date

13/07/2013

Delivery date

06/01/2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Okpo

South Korea

Yard number

4254

Hull material

High strength steel

Watertight bulkheads

16

Main engine

2x MAN-B&W/Doosan 8S80ME-C Mk9.2 - 2 stroke 8 cylinder 800 x 3.450 mm combustion engine each 29.680 kW / 40.356 bhp at 73,1 rpm

Total: 59.360 kW / 80.712 hp

Manufacturer: Doosan Engine Co., Ltd.

Propellers

1x Fixed pitch propeller starboard

1x Fixed pitch propeller port

Boilers

1x Auxiliary boiler Aalborg OS - 9 bar

2x H.P. Exhaust gas economizer Aalborg XW-TG(HP) - 14,0 bar (High Press)

2x L.P. exhaust gas economizer Aalborg XW-TG(LP) - 8,0 bar (Low Press)

2x Exhaust Gas Economizer Aalborg XS-TC7A - 12,5 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x 3.000 kW each

Generators

1x Turbo generator 6.000 kW (Brotherhood steam/Exhaust gas driven turbine)

2x MAN-B&W 6L32/40 main generators 2.800 kW each

2x MAN-B&W 9L32/40 main generators 4.300 kW each

Manufacturer: HHI Electro Electric System

Number of holds

11

Cargo hold capacity

384.683,6 m³

Number of tanks

Ballast: 38

Lubricating oil: 15

Fuel oil: 13

Fresh water: 8

Waste water: 6

Diesel oil: 4

Sludge: 4

Chain: 2

Tank capacities 100%

Diesel oil: 1.100,8 m³

Freshwater: 1.048,3 m³

Fuel oil: 14.018,6 m³

Lube oil: 588,6 m³

Tank ballast: 63.173,2 m³

Lifting equipment

2x Engine room crane - SWL 10,0 t

1x Monorail crane - SWL 12,5 t

1x Provision Crane - SWL 2,0 t

1x Provision Crane - SWL 5,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

ISM & commercial manager

Maersk A/S

Esplanaden 50

DK-1263 Copenhagen K

Denmark

Operator

Maersk Line

Registered owner

Maersk A/S

Esplanaden 50

1263 Copenhagen, K

Denmark

Latest data adjustment

07 November 2021
