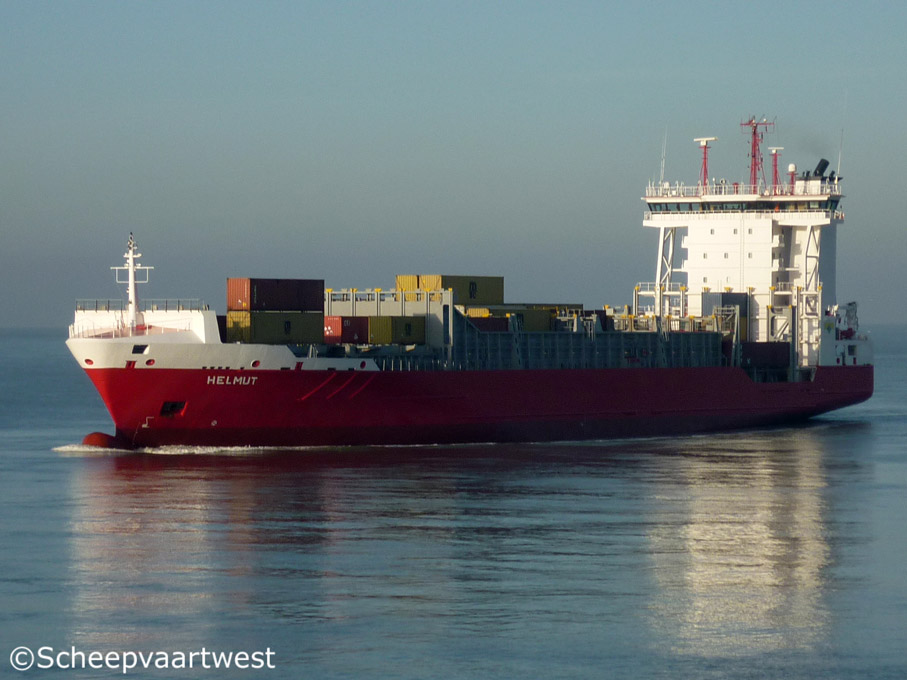

| Westerschelde 16 January 2012 |
 |
 |
 |
||

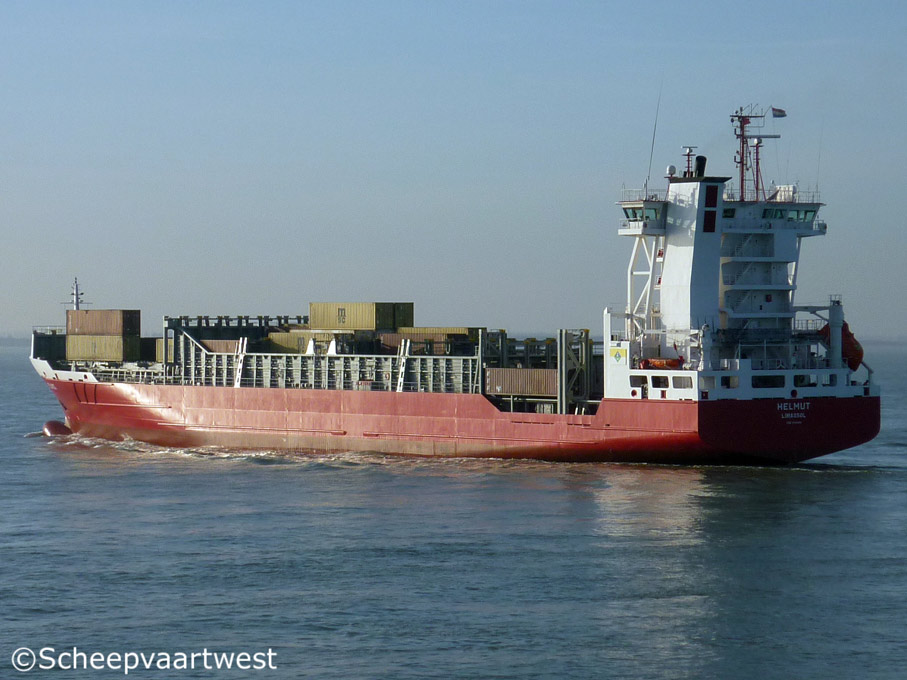

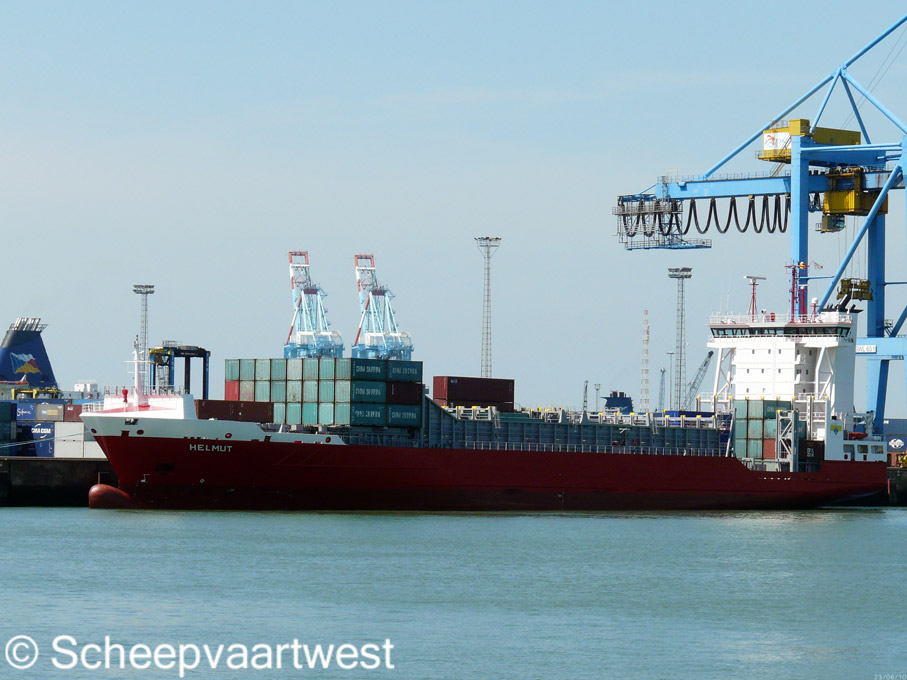

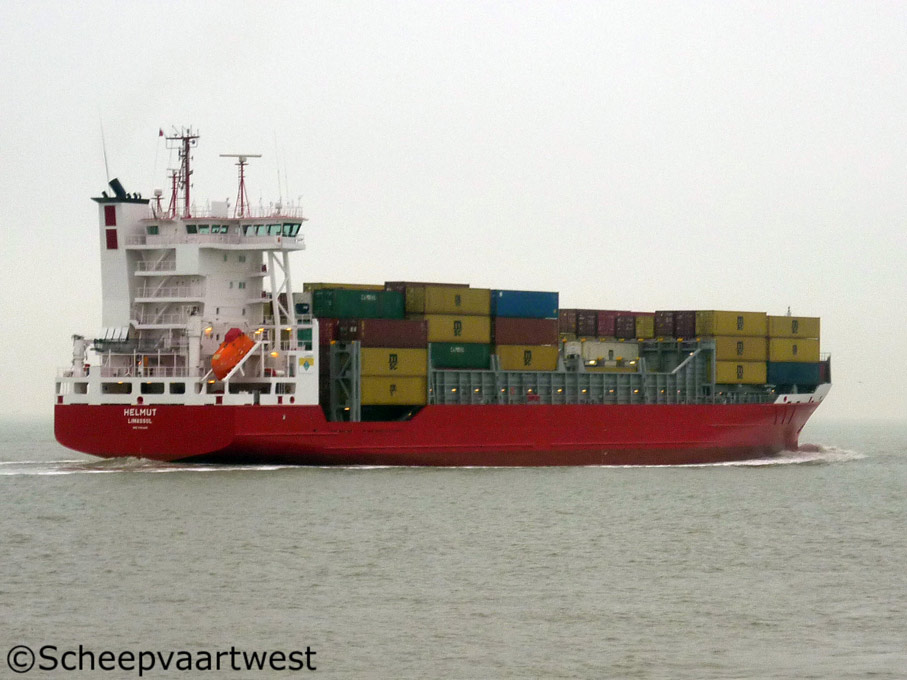

| Westerschelde 16/01/12 | Westerschelde 25/01/12 | Zeebrugge 23/06/10 |
|
Name |
HELMUT |
|
Previous names |
Livland |
|
Type |
Cellular containership |
|
IMO-number |
9354466 |
|
Call sign |
5BDG2 |
|
Flag |
Cyprus |
|
Previous flag |
Germany |
|
Port of registry |
Limassol |
|
GT |
9.981 t |
|
DWT |
11.272 t |
|
NT |
6.006 t |
|
Number of 20ft containers |
868 |
|
Container capacity 14t |
585 |
|
Reefer capacity |
204 |
|
Length |
134,44 m overall 125,08 m registered |
|
Breadth |
22,50 m registered |
|
Draught |
Summer: 8,71 m |
|
Forecastle |
62,542 m |
|
Bridge |
32,094 m |
|
Poop |
9,452 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m moulded |
|
Speed |
18,5 knots |
|
Line |
Unifeeder |
|
Built |
2006 |
|
Keel laid |
20.12.2004 |
|
Launch date |
07.10.2006 |
|
Date of completion |
16.11.2006 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1259 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9 M43 C - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 7.950 kW at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft at 128 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 51,7 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 221,5 m² Year of manufacture: 2006 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric Installations |
1x Plant 400 V - 2.545 kVA 1x Plant 400 V - 1.860 kVA 1x Plant 400 V - 400 kVA 1x Plant 24 V - 140 Ah |
|
Shaft generator |
1x 1.860 kVA / 1.488 kW |
|
Generators |
1x Main diesel generatorset 1.390 kVA / 1.112 kW 1x Main diesel generatorset 1.155 kVA / 924 kW |
|
Emergency generator |
1x Diesel generatorset 400 kVA |
|
Batteries |
2x Start emergency engine each 140 Ah |
|
Compressed air receivers |
2x Receivers, each 750 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster - 750 kW, forward 1x Transverse thruster - 450 kW, aft |
|
Largest hatch |
Length: 12,60 m Breadth: 24,97 m |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
Crew |
12 |
|
Manager |
Reederei Jens & Waller GmbH & Co. KG |
|
Owner |
MS "HELMUT" Jens und Waller GmbH & Co. KG |
