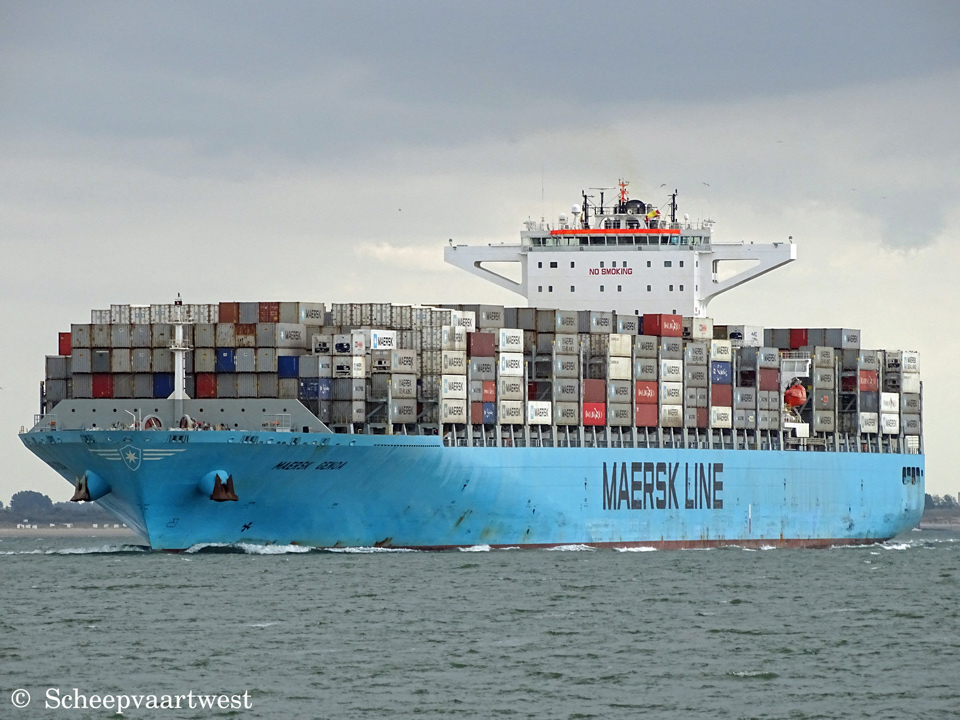

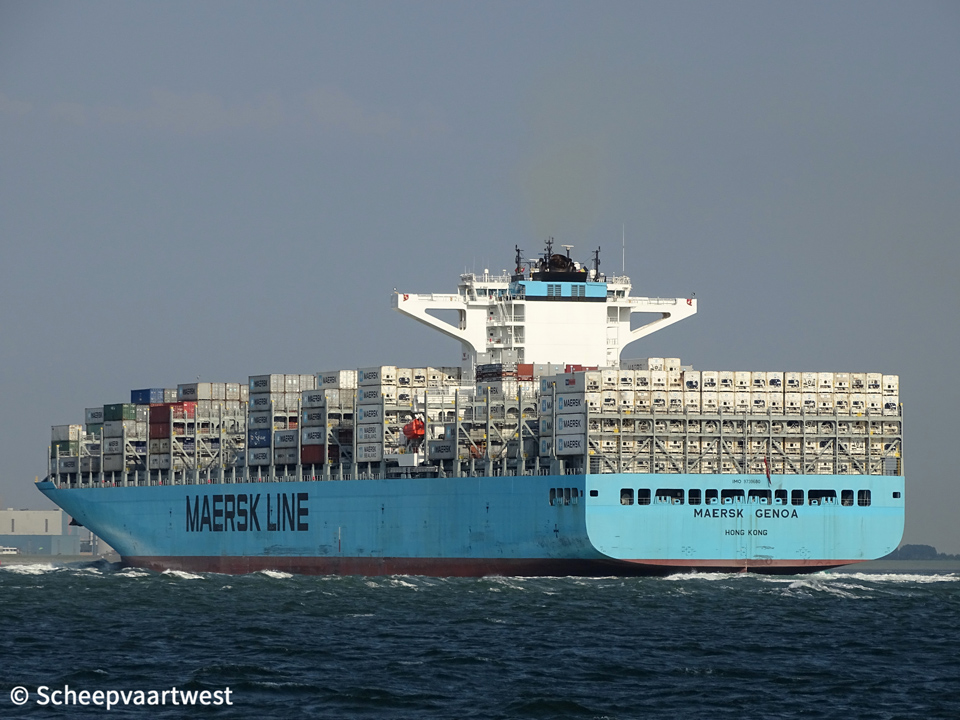

Maersk Genoa - IMO 9739680

Westerschelde 08 August 2018

Name

MAERSK GENOA

Type

Cellular containership

IMO-number

9739680

Call sign

VRPJ7

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

113.042 t

DWT

118.908 t

NT

59.440 t

Number of 20ft containers

10.100

Container capacity 14t

8.060

Reefer capacity

1.000

Length

336,94 m overall

319,96 m between perpendiculars

Breadth

48,19 m moulded

48,30 m extreme

Draught

Max: 15,52 m

Depth

27,20 t

Speed

Max: 23,0 knots

Built

2016

Keel laid

27/06/2014

Launch date

28/04/2016

Date of completion

12/09/2016

Builder

Jiangsu New Yangzi Shipbuilding Co., Ltd.
Jiangyin
China

Yard number

YZJ2014-1120

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W 10S90ME-C9.2 - 2 stroke single acting 10 cylinder 900 x 3.260 mm combustion engine 51.000 kW / 69.340 hp at 84,0 rpm

Builder: CSSC-MES Diesel Co Ltd - China

Propellers

1x Fixed pitch propeller aft at 84,0 rpm

6 blades

Builder: Nakashima

Boilers

1x Auxiliary boiler, exhaust gas heated (Exhaust) XS-7V

1x Auxiliary boiler, oil/gas fired (Oil fired) MISSION OS-Tci-5500

Builder: Alfa Laval Aalborg A/S

Generators

2x Daihatsu 6DC-32 - 4 stroke 6 cylinder 320 x 400 mm combustion engine each 2.648 kW connected with generators each 2.760 kW

2x Daihatsu 8DC-32 - 4 stroke 6 cylinder 320 x 400 mm combustion engine each 3.690 kW connected with generators each 2.895 kW

Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division

Emergency generator

1x Doosan V/AD 180 diesel generatorset

Builder: Doosan Infracore Co., Ltd.

Bow thruster

1x Tunnel thruster 2.410 kW / 3.277 bp

Tank capacities

Ballast: 31.530,1 m³

Anchor equipment

Length: 770,00 m

Diameter: 114 mm

Manager

Seaspan Ship Management Ltd.

Suite 2600, 200, Granville Street

Vancouver BC V6C 1S4

Canada

Operator

Maersk Line

Registered owner

FPG Shipholding Panama 28 SA

Latest data adjustment

11 April 2020
