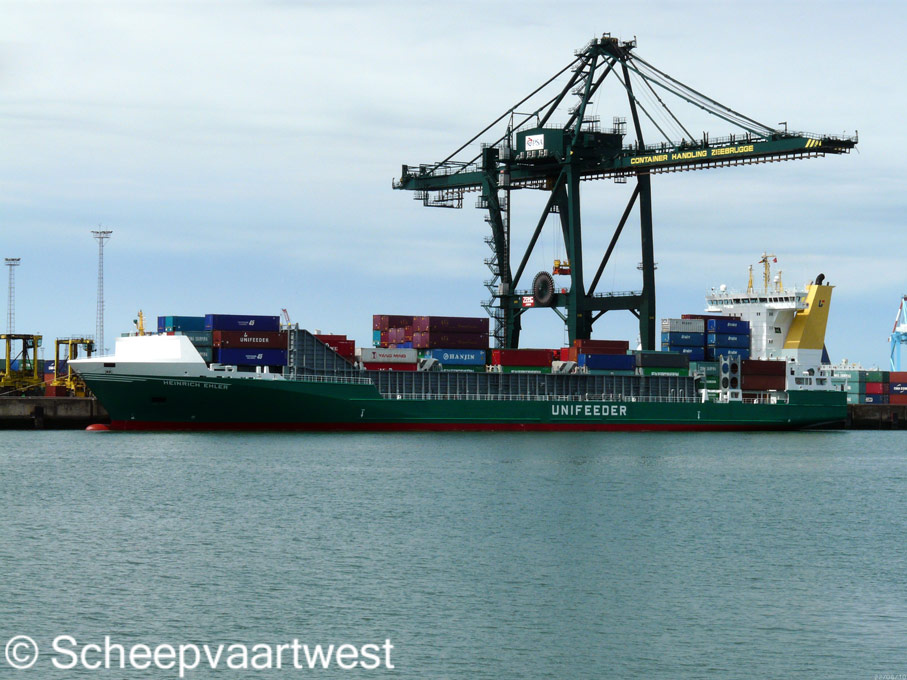

Heinrich Ehler 01
Zeebrugge 22 June 2010



Name

HEINRICH EHLER

Previous name

Monika Ehler

Type

Containership - Feeder

IMO-number

9372200

Call sign

2BGW5

Flag

United Kingdom

Previous flag

Germany

Port of registry

London

GT

17.488 t

DWT

17.814 t

NT

8.125 t

Number of 20ft containers

1.425

Container capacity 14t

1.030

Reefer capacity

300

Length

168,11 m overall

157,30 m registered

Breadth

26,80 m

Draught

Summer: 9,62 m

Freeboard

4.415 mm

Depth

14,00 m moulded

Speed

19,3 knots

Built

2008

Keel laid

20.12.2006

Launch date

05.06.2008

Date of completion

14.08.2008

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1261

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN B&W 8L58/64 CD - 4 stroke single acting 8 cylinder 580 x 640 mm diesel engine - 11.200 kW / 15.228 hp at 428 rpm

Year of manufacture: 2008

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft at 121 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 51,0 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 220,0 m²

Year of manufacture: 2008

Manufacturer: HTI - GESAB GmbH
Buchenweg 17
25479 Ellerau
Federal Republic of Germany

Electric installations

1x Plant 450 V - 1.300 kVA

1x Plant 450 V - 1.300 kVA

1x Plant 450 V - 1.300 kVA

1x Plant 450 V - 2.860 kVA

1x Plant 450 V - 220 kVA

1x Plant 24 V - 180 Ah

1x Plant 24 V - 180 Ah

Shaft generator

2.860 kVA / 2.288 kW

Generators

3x Caterpillar main diesel generatorsets each 1300 kVA / 1.040 kW

Emergency generator

1x Diesel generatorset 220 kVA

Batteries

2x Batteries for start emergency engine each 180 Ah

2x Batteries for UPS radio each 180 Ah

Compressed air receivers

2x Receivers each 1.250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 900 kW, forward

Stern thruster

1x Transverse thruster - 750 kW, aft

Anchor Equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

Gearless

Crew

14

Crew size

25

Manager

Reederei Heinz Ehler GmbH & Co.KG,
Eschstr. 2
21762 Otterndorf
Federal Republic of Germany

Operator

UniFeeder Container Service
Aarhus
Denmark

Owner

MS "HEINRICH EHLER" Heinz Ehler GmbH & Co. KG
Eschstr. 2
21762 Otterndorf
Federal Republic of Germany
