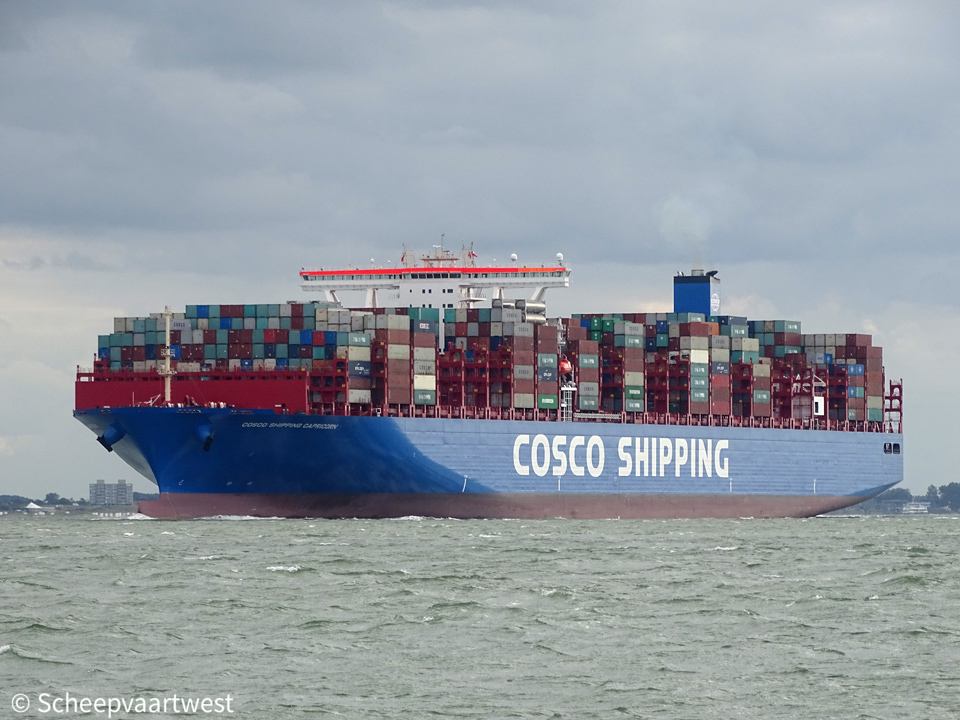

COSCO Shipping Capricorn 01

Westerschelde 27 August 2018

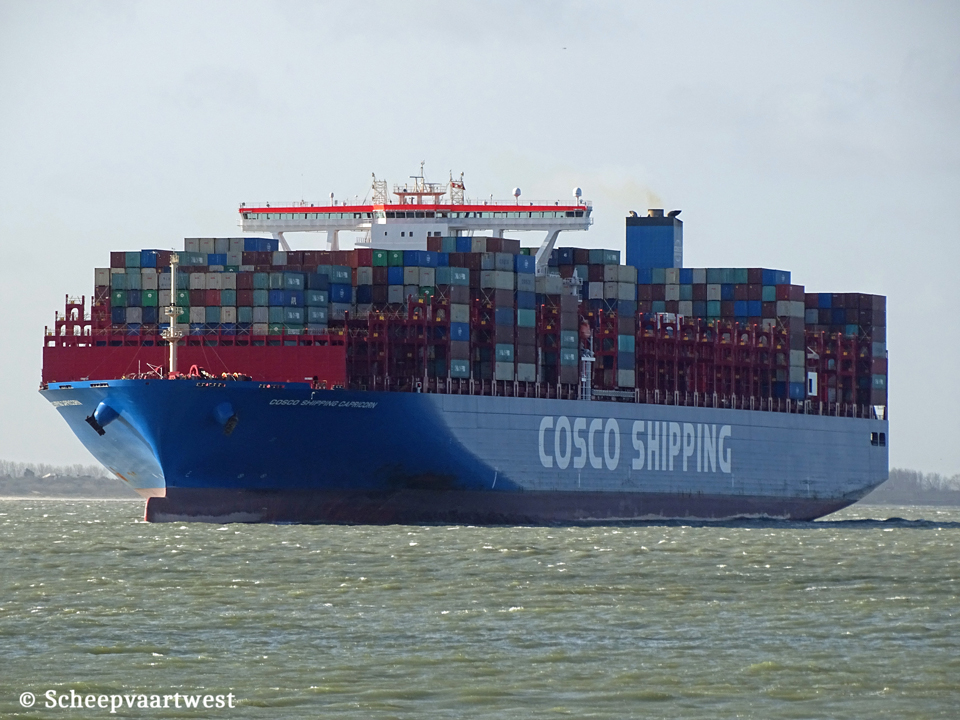

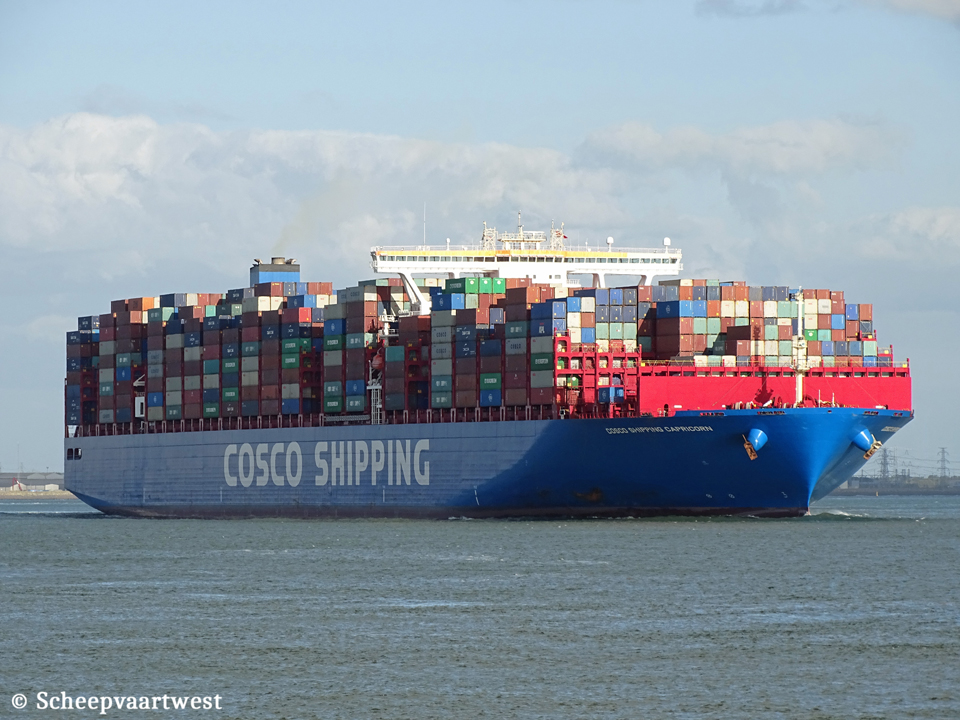

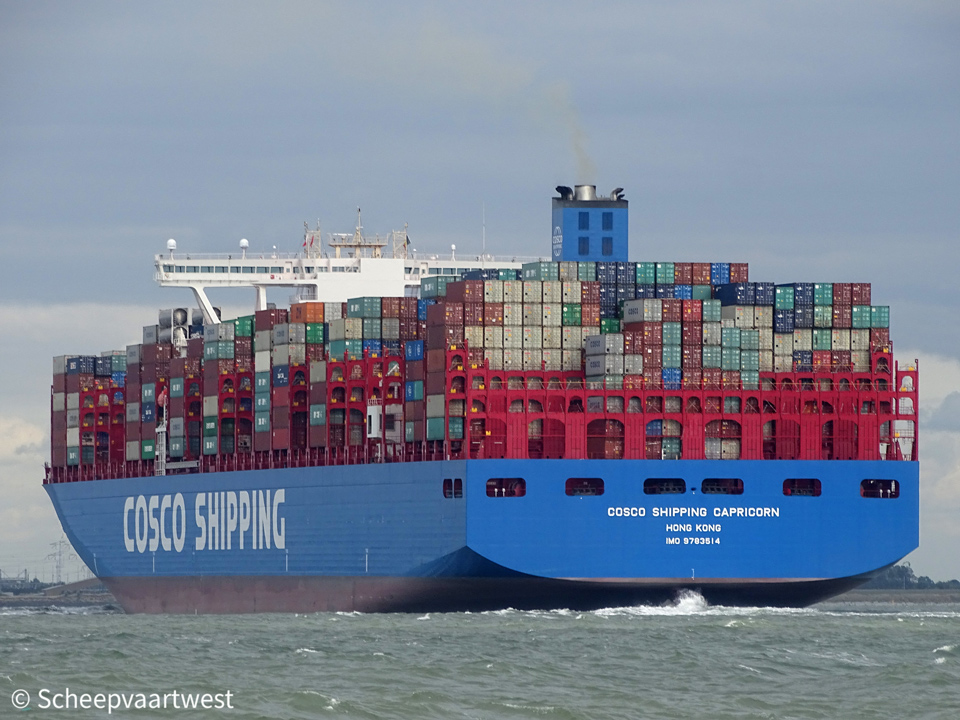

COSCO Shipping Capricorn 02   COSCO Shipping Capricorn IMO 9783514 03   COSCO Shipping Capricorn IMO 9783514 05   COSCO Shipping Capricorn IMO 9783514 06
Westerschelde 27/08/18 Westerschelde 19/02/20 Westerschelde 05/05/20   Westerschelde 18/09/19



Name

COSCO SHIPPING CAPRICORN

Type

Cellular containership

IMO-number

9783514

Call sign

VRRU3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

196.670 t

DWT

197.087 t

NT

92.071 t

Number of 20ft containers

20.038

Container capacity 14t

13.400

Reefer capacity

1.000

Length

399,81 m overall

382,00 m between perpendiculars

Breadth

58,60 m moulded

Draught

Max: 17,00m

Deckhouse

7,20 m

Freeboard

7.351 mm

Depth

30,70 m moulded

Speed

Max: 22,5 knots

Service: 19,0 knots

Built

2018

Keel laid

07/12/2015

Launch date

28/03/2018

Date of completion

18/07/2018

Builder

Nantong COSCO KHI Ship Engineering Co., Ltd.

China

Yard number

NE233

Hull material

Steel

Bulkheads

13

Main engine

1x MAN-B&W/CSSC-MES Diesel 11S90ME-C10 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine 54.950 kW / 74.710 hp at 72,0 rpm

Built: 13/04/2017

Builder: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Fixed pitch propeller aft at 72,0 mm

Boilers

1x Exhaust gas eEconomiser

1x Water tube auxiliary boiler

Built: 02/03/2017

Builder: Alfa Laval Qingdao Ltd.

Generators

2x Wärtsilä 7L25 - 4 stroke 7 cylinder 320 x 400 mm engines each 3.360 kW coupled with Hyundai HSJ7 805-10P generatorsets each 3.207 kW / 6.600 Volt - 60 Hz

2x Wärtsilä 9L32 - 4 stroke 7 cylinder 320 x 400 mm engines each 4.320 KW coupled with Hyundai HSJ7 805-10P generatorsets each 4.107 kW / 6.600 Volt - 60 Hz

Bow thruster

2x Each 1.500 kW / 2.039 bhp

Number of holds

10

Number of hatches

1x 12,60 x 33,00 m

9x 12,60 x 53,60 m

Tank capacities

Water ballast: 64.232 m³

Cargo gear

Gearless

Commerical manager

COSCO Shipping Lines Co Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu,

Shanghai, 200080

China

ISM manager

Shanghai Ocean Shipping Co., Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu,

Shanghai, 200080

China

Registered owner

COSCO Legend Shipping Ltd.

Care of COSCO Shipping Lines Co., Ltd.

COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu

Shanghai, 200080

China

Latest data adjustment

19 March 2022
