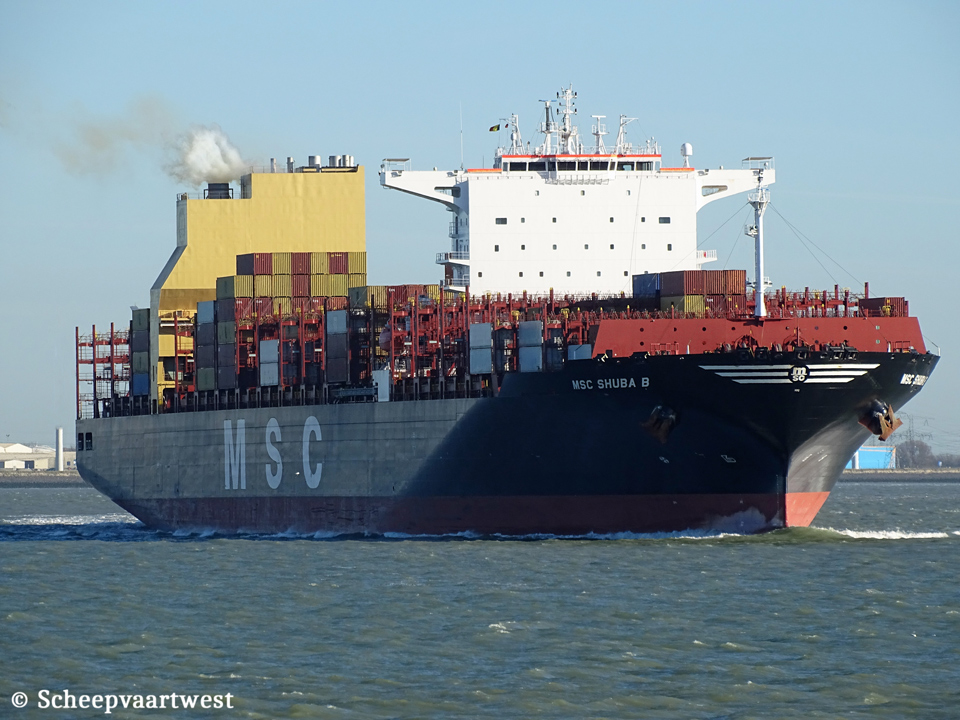

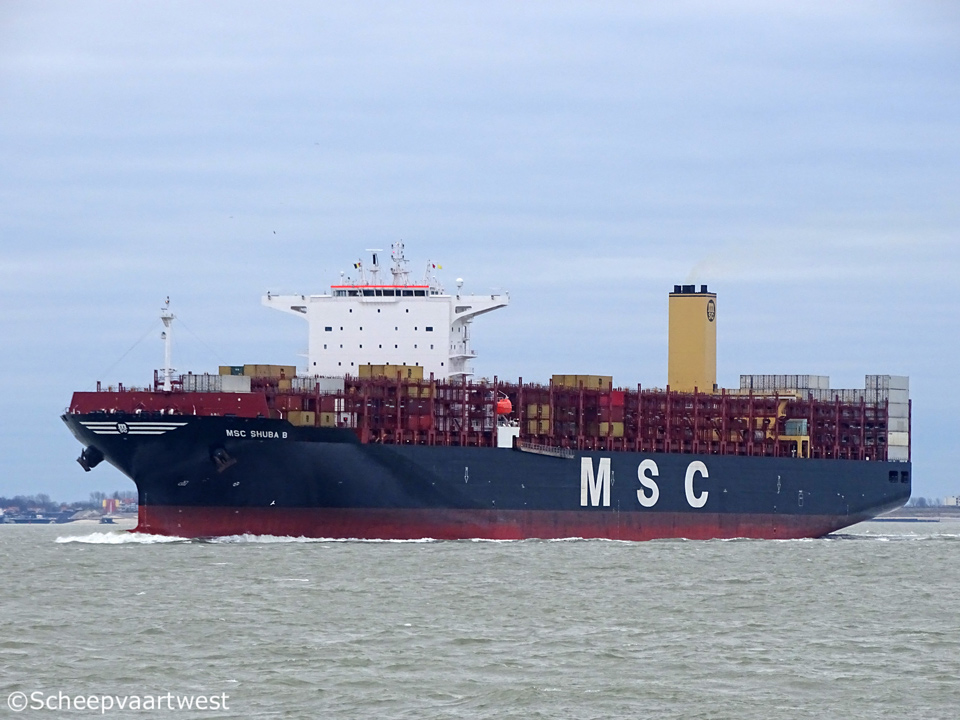

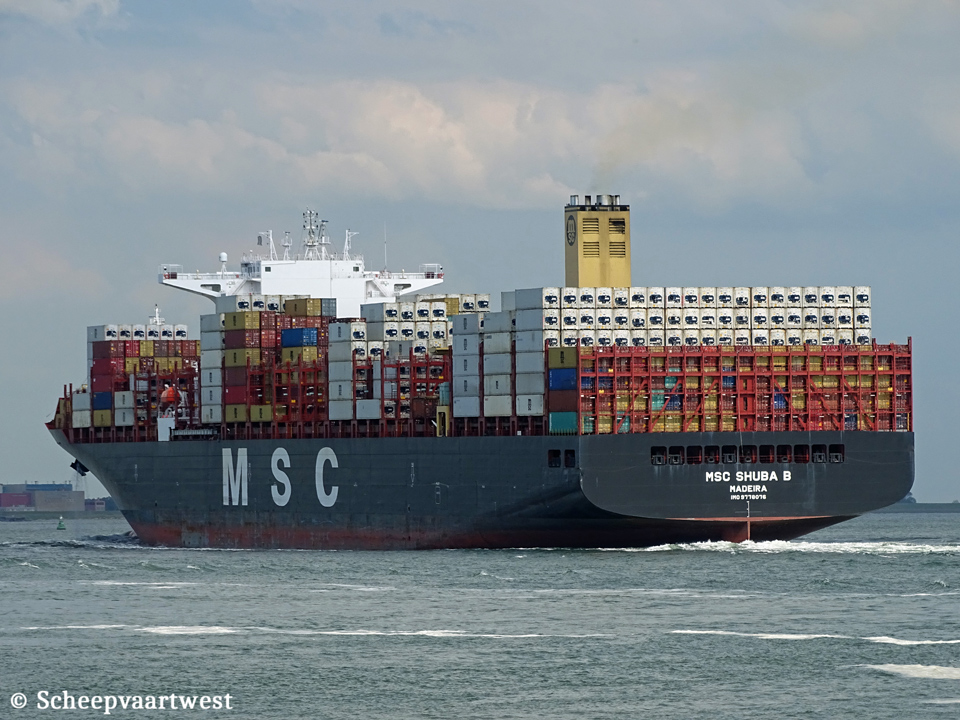

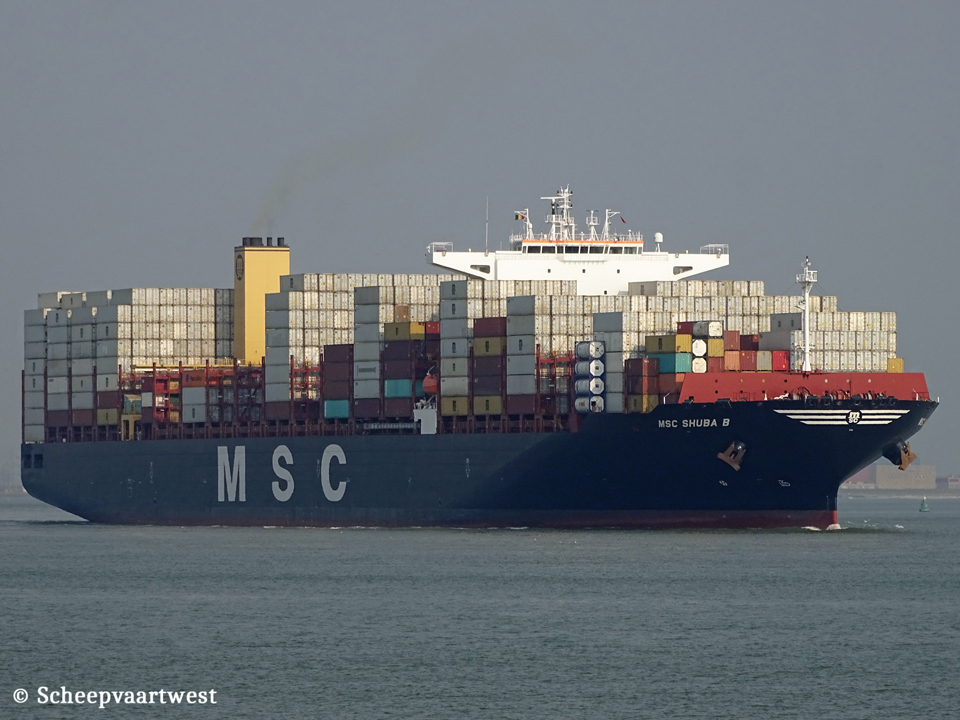

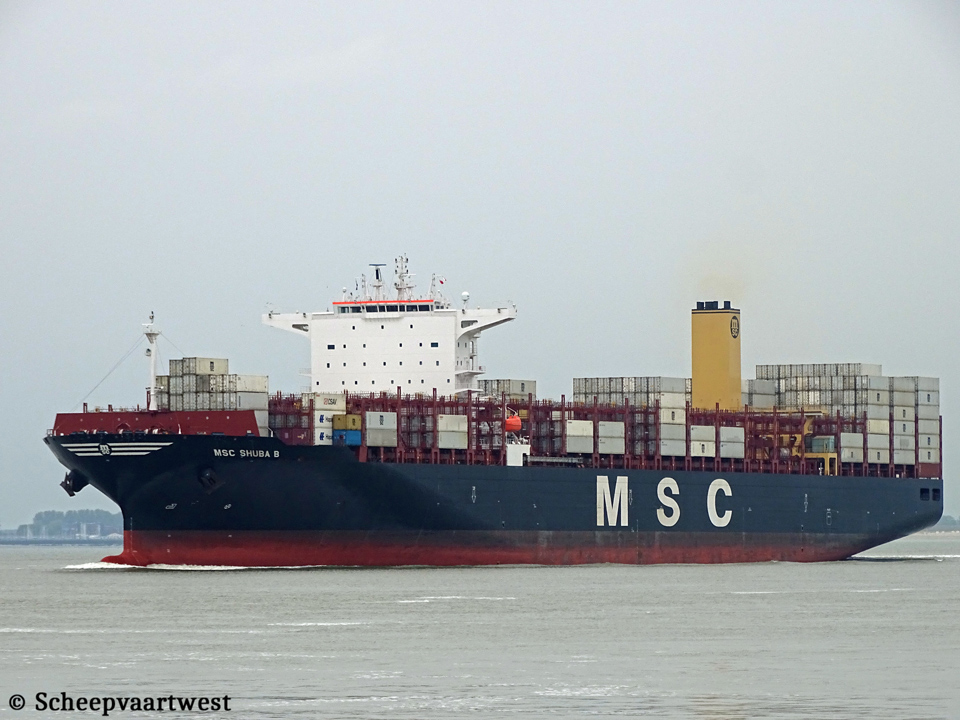

MSC Shuba B - IMO 9778076

Westerschelde 18 November 2020

Name

MSC SHUBA B

Type

Cellular containership

IMO-number

9778076

Call sign

CQIP2

Flag

Portugal

Port of registry

Madeira

GT

113.112 t

DWT

134.007 t

NT

62.337 t

Number of 20ft containers

11.010

Container capacity 14t

6.817

Reefer capacity

1.453

Length

330,00 m overall

316,40 m between perpendiculars

Breadth

48,20 m extreme

Draught

16,00 m

Depth

27,20 m

Speed

Max: 24,0 knots

Built

2017

Keel laid

20/11/2015

Launch date

14/04/2017

Date of completion

23/08/2017

Builder

Hanjin Heavy Industries & Construction Co., Ltd., Subic Bay

Philippines

Yard number

NCP0145

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W- HHI 8G95ME-C9.2 - 2 stroke single acting 8 cylinder 950 x 3.460 mm combustion engine 54.960 kW / 74.724 bhp at 80,0 rpm

Manufacturer: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Mono-block fixed pitch propeller - aft at 80,0 rpm

Boilers

1x Auxiliary boiler, oil/gas fired

2x Auxiliary boiler, exhaust gas heated

Manufacturer: KangRim Heavy Industries

Generators

2x MAN 9L32/40CD 4 stroke 9 cylinder 320 x 400 mm diesel generatorsets each 4.400 kW coupled with generator each 4.300 KW

2x MAN 8L32/40CD 4 stroke 8 cylinder 320 x 400 mm diesel generatorsets each 4.000 kW coupled with generator each 3.900 kW

Emergency generator

1x MAN diesel generatorset

Bow thruster

1x Tunnel thruster 3.000 kW / 4.079 bhp

Manufacturer: Kawasaki Heavy Industries, Ltd.

Tank capacities

Ballast: 30.823,21 m³

Lifting equipment

Length: 770,00 m

Diameter: 114 mm

Cargo gear

Gearless

Manager

MSC Shipmanagement Ltd.

MSC House, 8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Registered owner

Sea 27 Leasing Co Ltd.

Latest data adjustment

15 January 2021
