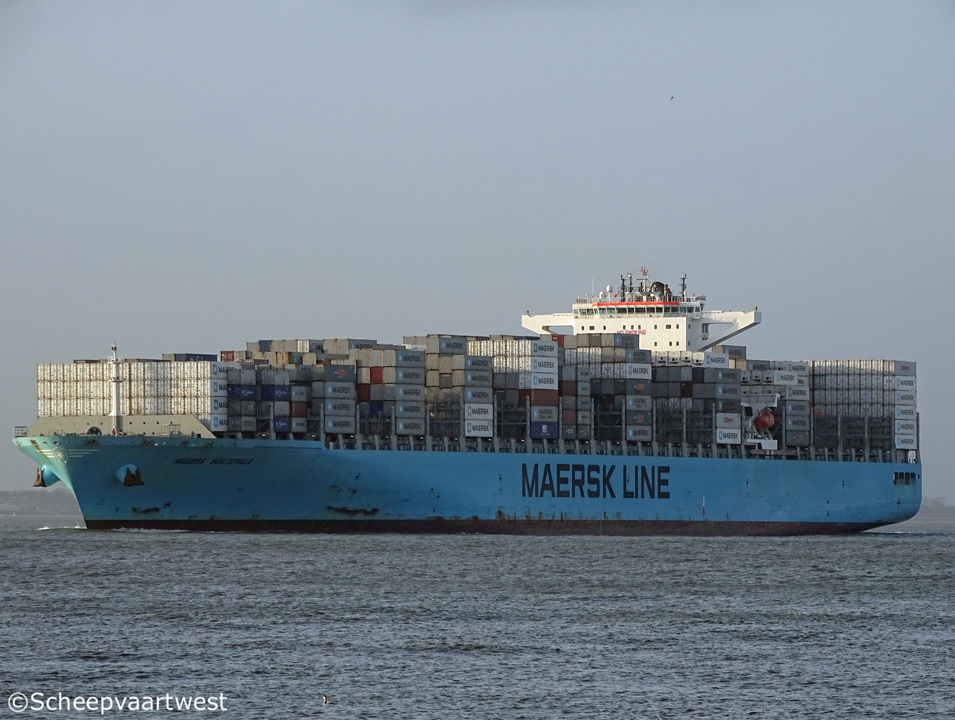

Maersk Guatemala 01

Westerschelde 18 December 2017

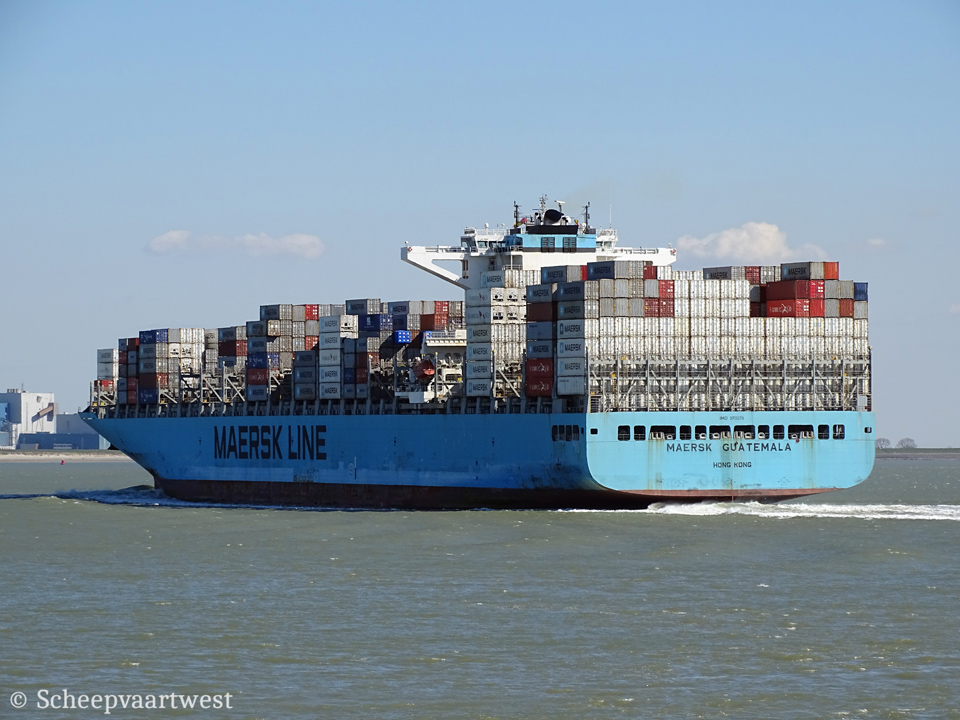

Maersk Guatemala 02
Westerschelde 31/03/20













Name

MAERSK GUATEMALA

Type

Cellular containership

IMO-number

9713375

Call sign

VROS7

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

113.042 t

DWT

119.510 t

NT

59.440 t

Number of 20ft containers

10.010

Length

337,00 m overall

321,67 m between perpendiculars

Breadth

48,31m extreme

48,20 m moulded

Draught

15,52 m

Depth

27,20 m

Speed

Max.: 21,0 knots

Built

2015

Keel laid

27/06/2014

Launch date

27/03/2015

Date of completion

02/09/2015

Builder

Jiangsu Yangxi Xinfu Shipbuilding

Jingjiang

China

Yard number

YZJ2013-1104

Hull material

Steel

Main engine

1x MAN-B&W 10S90ME-C9.2 - 10 cylinder combustion engine 58.100 kW / 79.016 hp at 84,0 rpm

Propellers

1x Nakashima fixed pitch propeller - 6 blades

Boilers

1x Auxiliary boiler, oil/gas fired MISSION OS-Tci-5500

1x Auxiliary boiler, exhaust gas heated XS-7V

Builder: Alfa Laval Aalborg A/S

Generators

2x Daihatsu 8DC-32 main diesel generatorsets each 3.690 kW

2x Daihatsu 6DC-32 main diesel generatorset each 2.648 kW

Builder: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory

Emergency generator

1x Doosan 180 diesel generatorset 500 kW

Builder: Doosan Infracore Co., Ltd.

Tank capacities

Ballast: 31.530,1 m³

Anchor equipment

Length: 770,00 m

Diameter: 114 mm

Manager

Seaspan Ship Management Ltd.

Granville street

Vancouver

Canada

Charterer

Maersk

Registered owner

GC Intermodal XIX, Ltd.

Latest data adjustment

13 November 2020
