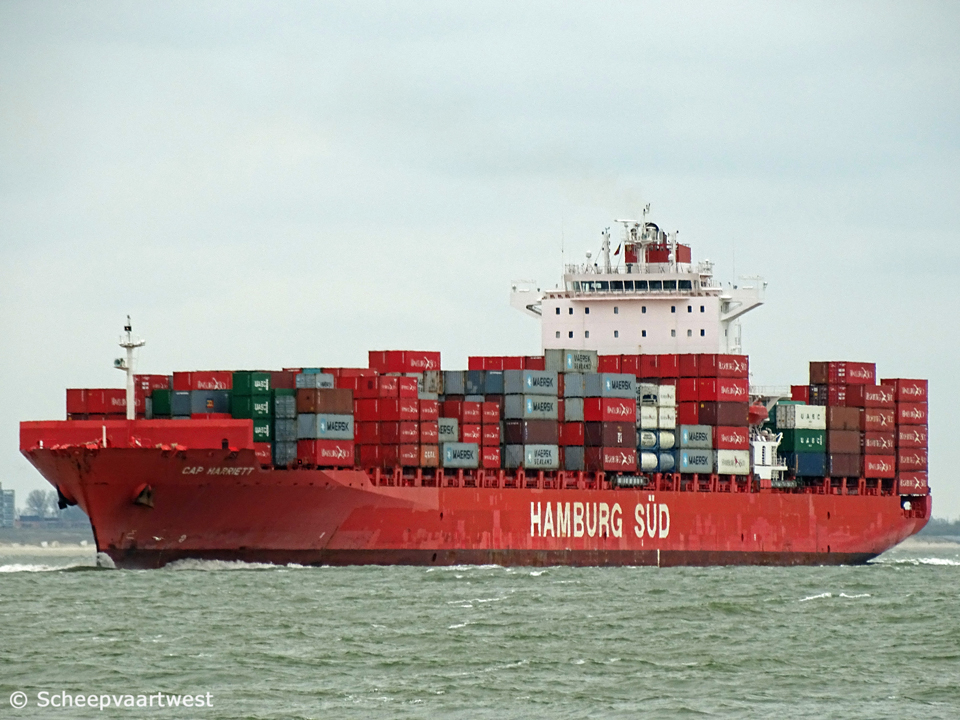

Westerschelde 16 April 2016 |
 |
 |
|

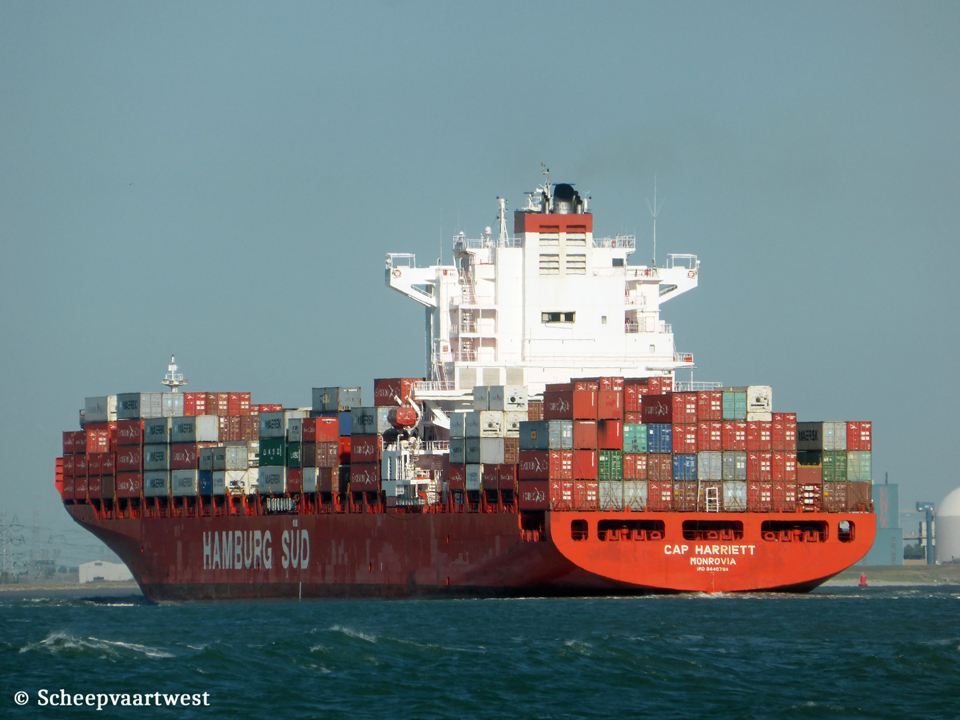

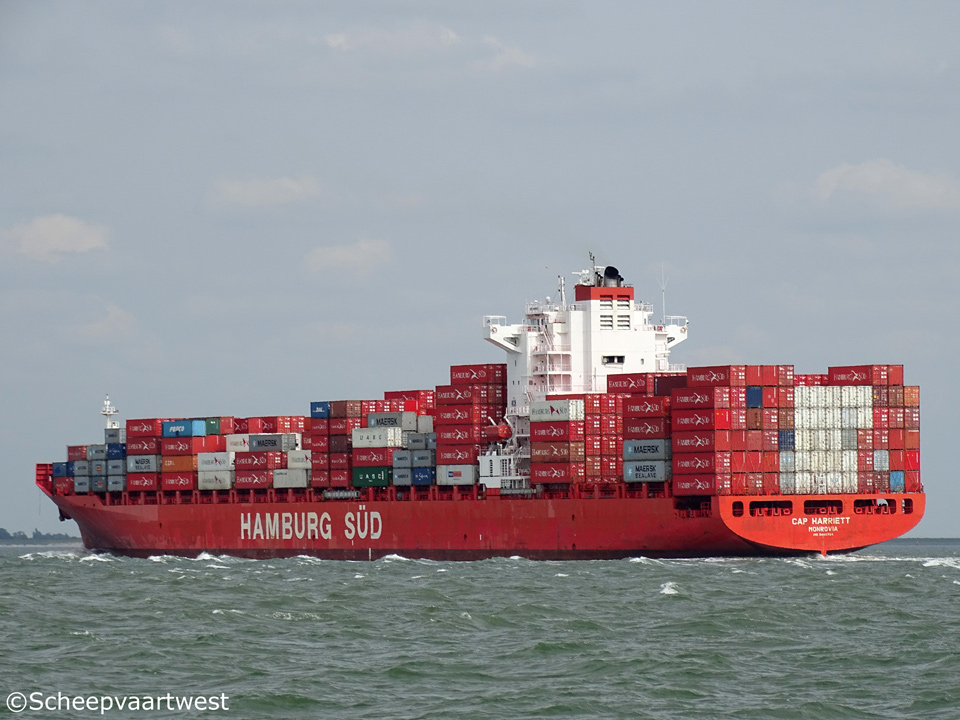

| Westerschelde 21/05/16 | Westerschelde 06/06/15 | |
|
Name |
CAP HARRIETT |
|
Previous names |
2009 - 2009 Harrier Hunter 2009 - 2009 CPO Philadelphia 2009 - 2016 Cap Harriett |
|
Type |
Cellular containership |
|
IMO-number |
9440784 |
|
Call sign |
A8VD8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
41.258 t |
|
DWT |
Summer: 51.779,9 t |
|
NT |
24.234 t |
|
Number of 20ft containers |
On deck (7 tiers): 2.689 In hold: 1.566 Total (7 tiers): 4.255 |
|
Container capacity 14t |
3.000 |
|
Reefer capacity |
On deck 40': 372 plugs In hold 40': 188 plugs Total 560 plugs |
|
Length |
262,07 m overall 248,01 m between perpendiculars 249,15 m registered |
|
Breadth |
32,25 m extreme |
|
Draught |
12,50 m |
|
Freeboard |
4.311 mm |
|
Depth |
19,30 m moulded |
|
Speed |
Max.: 24,1 knots |
|
Built |
2009 |
|
Keel laid |
22/12/2008 |
|
Launch date |
06/03/2009 |
|
Date of completion |
20/04/2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan ,682-792 Kyongsang-namdo Republic of Korea |
|
Yard number |
2059 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 8RTA82C - 2 stroke 8 cylinder combustion engine 36.160 kW at 102,0 rpm Year of manufacture: 2009 Manufacturer: Hyundai Heavy Industries Co., Ltd. 178, Sejong-ro, Jongro-gu Seoul, Soul-t´ukpyolsi Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired type Mission OS - 9,0 bar Heating Surface: 26,87 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, 266300 Shandong People's Republic of China 1x Steam boiler, exhaust gas heated type Mission XS-2V - 9,0 bar Heating Surface: 172,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 450 V - 2.112,5 kVA 2x Plants each 450 V - 2.812,8 kVA 1x Plant 450 V - 187,5 kVA 2x Plants each 12 V - 300 Ah 4x Plants each 24 V - 100 Ah 2x Plants each 24 V - 130 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
2x Hyundai/Himsen 8H25/33 main diesel generatorsets each 2.812,8 kVA / 2.250 kW 2x Hyundai/Himsen 6H25/33 main diesel generatorsets each 2.112,5 kVA / 1.690 kW |
|
Emergency generator |
1x Cummins C1-D/L 505/8.3 diesel generatorset 187,5 kVA |
|
Batteries |
12x Batteries for other purpose each 300 Ah 2x Batteries for start emergency engine each 300 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for diesel control each 130 Ah 4x Batteries for automation each 100 Ah |
|
Compressed air receivers |
2x Receivers each 10.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 200 litres - 8,7 bar 1x Receiver 2.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 1.500 kW, forward |
|
Tank capacities |
Heavy fuel oil: 5.200 m³ Marine diesel oil: 200 m³ Fresh water: 300 m³ Ballast water: 13.212,7 m³ |
|
Anchor equipment |
3x Anchors weight each 12.300 kg Length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Manager |
Reederei Claus-Peter Offen Hamburg Germany |
|
Operator |
Hamburg Süd Group |
|
Owner |
Reederei Claus-Peter Offen Hamburg Germany |
|
Renamed |
2016 Harrier Hunter Liberia, Monrovia - Call sing: A8VD8 Owner: Harrier Hunter Limited Manager: CPO Containerschiffreederei (GmbH & Co.) 2019 Harrier Hunter Belgium, Call sign: ONKL 2021 Wan Hai 522 Republic of Singapore, Singapore City - Call sign: 9V7056 Owner: Wan Hai Lines (Singapore) Pte Ltd. Manager: Columbia Shipmanagement (Singapore) Pte. Ltd. |
|
Latest data adjustment |
11 July 2023 |
