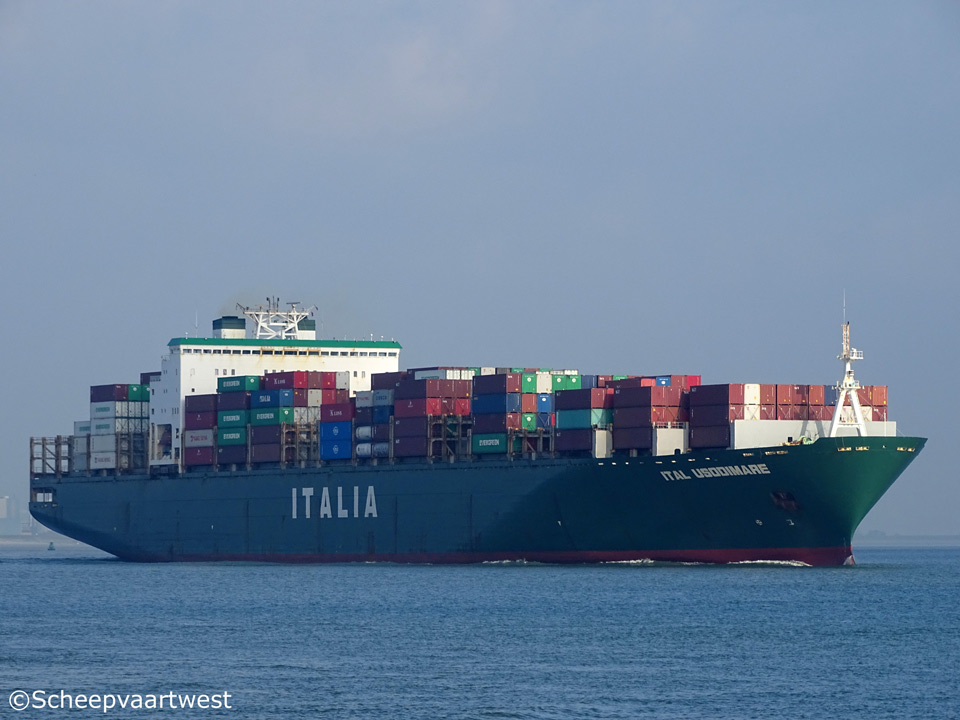

Westerschelde 04 April 2017 |
|
Name |
ITAL USODIMARE |
|
Previous names |
2000 - 11.2008 LT Usodomare |
|
Type |
Cellular containership |
|
IMO-number |
9196979 |
|
Call sign |
IBPO |
|
Flag |
Italy |
|
Port of registry |
Trieste |
|
GT |
68.888 t Suez: 70.989 t |
|
DWT |
Summer: 63.104 t |
|
NT |
30.410 t Suez: 62.017 t |
|
Number of 20ft containers |
5.652 |
|
Container capacity 14t |
4.520 |
|
Reefer capacity |
562 |
|
Length |
285,00 m overall |
|
Breadth |
40,00 m |
|
Draught |
Summer: 12,70 m |
|
Depth |
24,20 m moulded |
|
Speed |
Max.: 24,5 knots |
|
Built |
2000 |
|
Keel laid |
31.05.2000 |
|
Date of completion |
29.11.2000 |
|
Builder |
Mitsubishi Heavy Industries, Ltd. |
|
Yard number |
1243 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
11 |
|
Main engine |
1x Sulzer 12RTA84C-UG - 2 stroke 12 cylinder 840 x 2.400 mm engine - 49.325,52 kW maximum continuous rating Builder: Mitsubishi Heavy Industries, Kobe - Japan |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary water tube boiler 1x Waste heat boiler |
|
Generators |
4x Main diesel generatorsets each 1.770 kW |
|
Bow thruster |
2.000 kW |
|
Number of tanks |
Ballast: 24 Fuel oil: 17 Lubricating oil: 10 Slop: 4 Diesel oil: 4 Fresh water: 3 Potable water: 1 Sludge: 1 Waste water: 1 |
|
Tank capacities |
Water ballast: 24.037 t Bunker: 9.124 t Freshwater: 384,16 t / 392 m³ Fuel oil: 8.836,94 t / 9.401 m³ |
|
Lifting equipment |
1x Suez boat davit WD-40/2A-2.64/1.88 RG - SWL 4,0 t |
|
Cargo gear |
Gearless |
|
Manager |
Lloyd Triestino di Navigazione SpA |
|
Operator |
Italia Marittima S.p.A. |
|
Latest data adjustment |
19 August 2017 |
