| Zeebrugge 13 September 2007 |
 |
| Zeebrugge 13/09/07 |
|
Name |

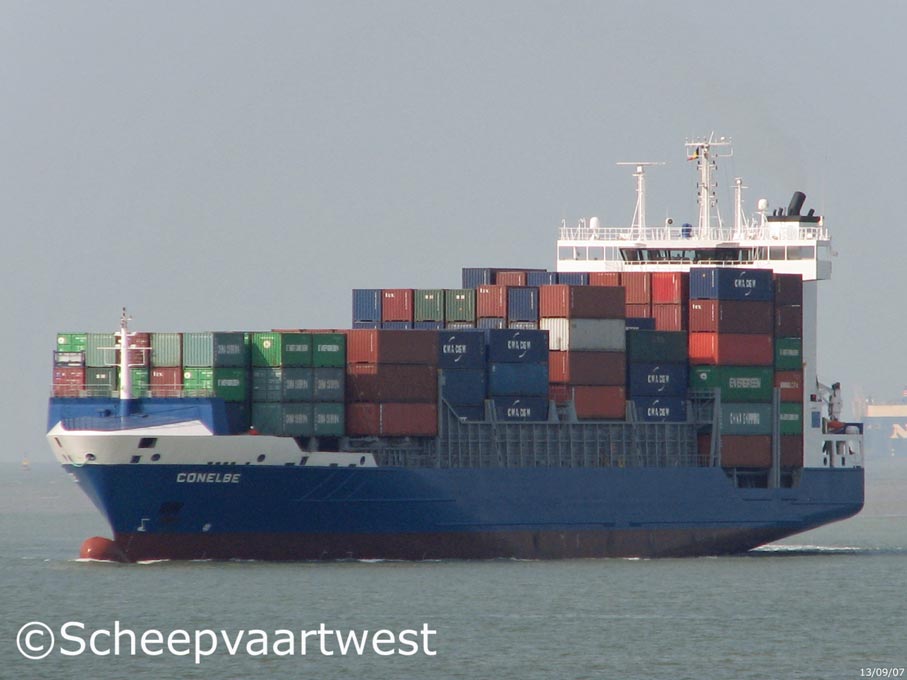

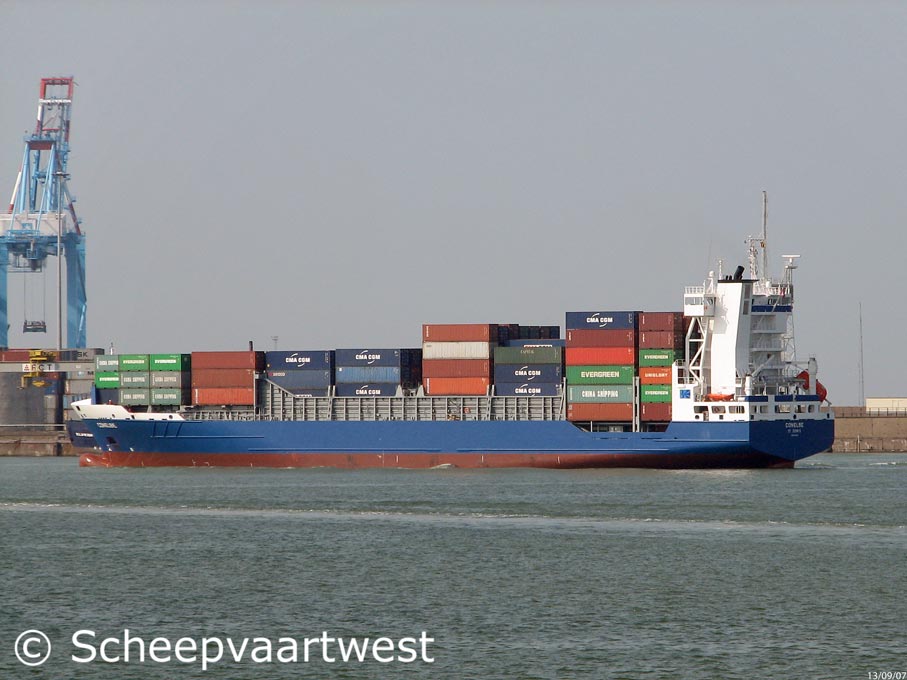

CONELBE |
|
Type |
Cellular containership - Semi hatch less |
|
IMO-number |
9354416 |
|
Call sign |
V2CW9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.962 t |
|
DWT |
11.433 t |
|
NT |
6.066 t |
|
Number of 20ft containers |
868 |
|
Container cap. at 14t |
516 |
|
Reefer containers |
150 |
|
Length |
134,44 m overall 125,08 m registered |
|
Breadth |
22,50 m overall |
|
Draught |
Summer: 8,71 m |
|
Bridge |
28,85 m |
|
Forecastle |
62,54 m |
|
Poop |
9,45 m |
|
Freeboard |
2.590 mm |
|
Depth |
11,30 m |
|
Speed |
18,5 knots |
|
Built |
2007 |
|
Keel laid |
08.12.2004 |
|
Launch date |
13.05.2007 |
|
Completion |
02.08.2007 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1240 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9 M43 - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 kW Year of Manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating Surface: 183,0 m² Year of manufacture: 2007 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1x 400/230 V - 2.545 kVA 1x 400 V - 1.860 kVA 1x 400 V - 400 kVA 1x 24 V - 280 Ah |
|
Shaft generator |
1x 1.860 kVA |
|
Generators |
1x Main diesel generatorsets each 1.390 kVA 1x Main diesel generatorset - 1.155 kVA |
|
Emergency generator |
1x Diesel generatorset 400 kVA |
|
Batteries |
2x Batteries for Start emergency engine, each 140 Ah |
|
Shaft alternator |
1.488 kW |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 750 kW, forward |
|
Stern thruster |
1x 450 kW |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Owner |
Bartels Bernd KG GmbH & Co. |
|
Renamed |
11.09.2008 WEC Velazquez |
