| Zeebrugge 06 November 2010 |
 |
| Zeebrugge 11/05/15 |
|
Name |

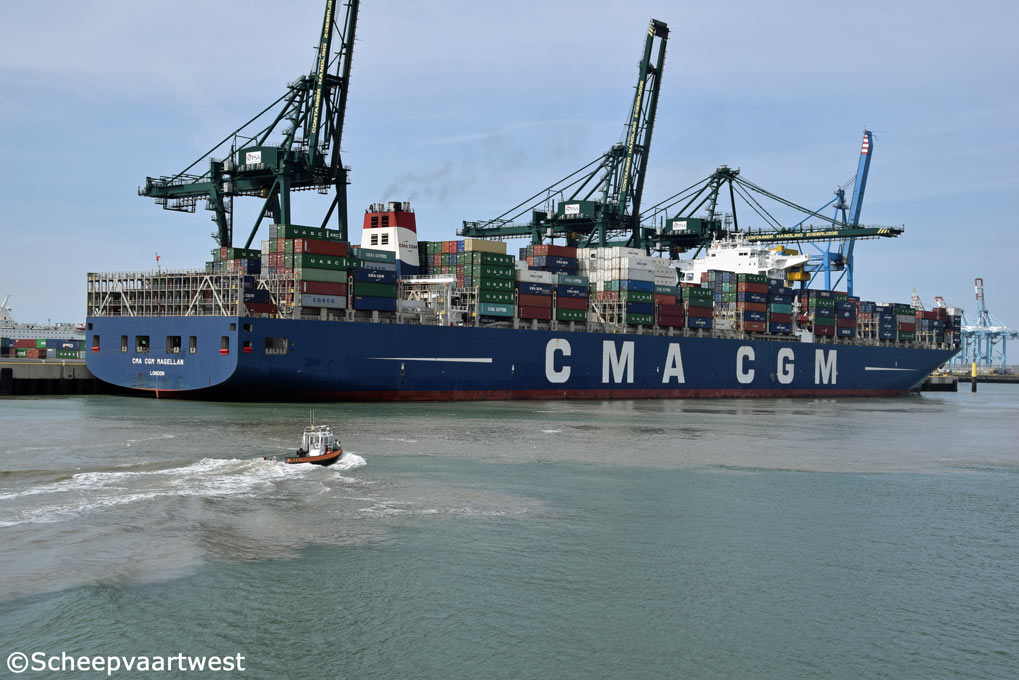

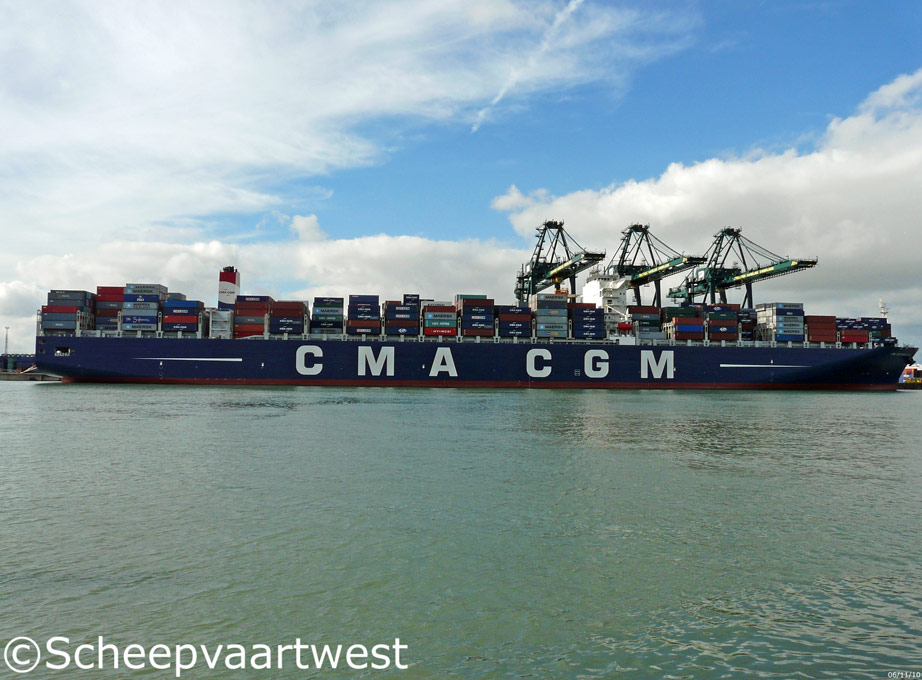

CMA CGM MAGELLAN |
|
Type |
Cellular containership |
|
IMO-number |
9454424 |
|
Call sign |
2DTI4 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
153.022 t |
|
DWT |
157.092 t |
|
NT |
80.802 t |
|
Number of 20ft containers |
13.344 |
|
Container capacity 14t |
10.000 |
|
Reefer containers |
800 |
|
Length |
365,50 m overall 349,50 m between perpendiculars |
|
Breadth |
51,20 m over all |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
1.973 mm |
|
Depth |
29,90 m |
|
Speed |
Max.: 24,1 knots |
|
Built |
2010 |
|
Date of completion |
28.09.2010 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. |
|
Yard number |
4160 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 14RT96flex-C - 14 cylinder internal combustion engine - power output 80.080 KW / 108.804 hp at 102,0 rpm Licence: Wärtsilä 14rt-flex96 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. |
|
Propelling system |
1x Screw propeller solid |
|
Boiler |
1x CHO 4.014,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 4.125 kVA - 3.300 kW - 4.755 hp |
|
Number of holds |
9 |
|
Total capacity of holds |
535.043 m³ |
|
Fuel capacity |
15.630 m³ |
|
Handling gear |
None |
|
Crew |
24 |
|
Manager |
CMA CGM SA The French Line |
|
Operator |
CMA CGM |
|
Owner |
CMA CGM |
|
Registered owner |
SNC Cypres Bail 4 |
|
Latest data adjustment |
19 may 2015 |
