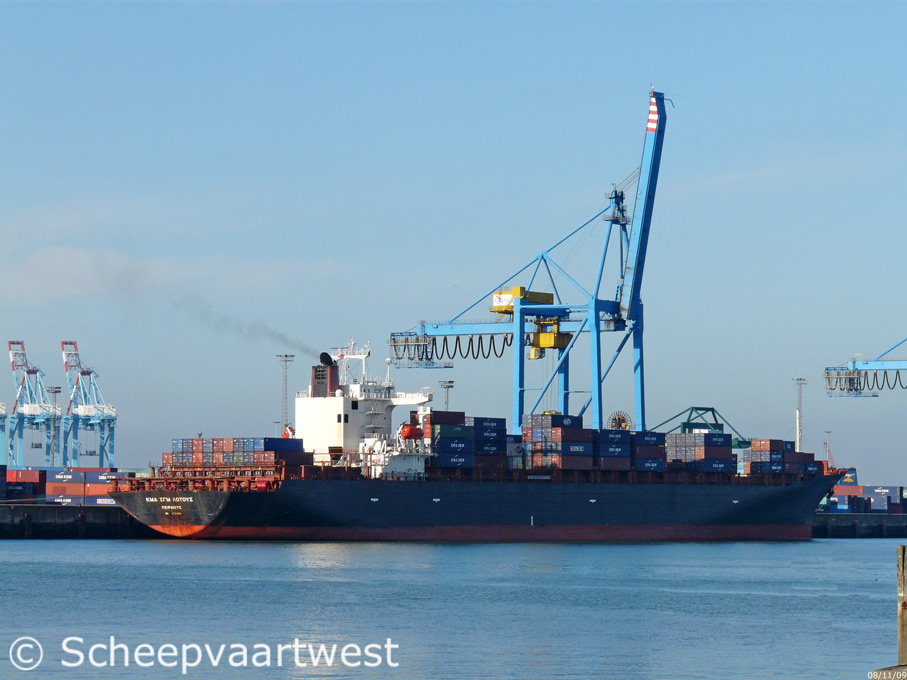

| Zebrugge 08 November 2009 |
|
Name |
CMA CGM LOTUS |
|
Previous names |
1988-2001 Alligator Victory 2001-2003 MOL Victory 2003-2007 Victory I 2007 CMA CGM Lotus |
|
Type |
Cellular containership |
|
IMO-number |
8705486 |
|
Official number |
11761 |
|
Call sign |
SVAB4 |
|
Flag |
Greece |
|
Previous flag |
1988-2008 Republic of Panama |
|
Port of registry |
Piraeus |
|
GT |
42.809 t registered Suez: 44.732,51 t |
|
DWT |
Summer: 46.427 t |
|
NT |
19.558 t registered Suez: 38.865,58 t |
|
Number of 20ft containers |
2.632 |
|
Container capacity 14t |
2.478 |
|
Reefer capacity |
204 |
|
Length |
253,27 m overall 236,30 m between perpendiculars |
|
Breadth |
32,29 m |
|
Moulded L x B x D |
236,30 x 32,20 x 16,60 m |
|
Registered L x B x D |
237,80 x 32,20 x 18,90 m |
|
Draught |
Summer: 15,52 m |
|
Freeboard |
Summer: 4.116 mm |
|
Depth |
21,20 m |
|
Speed |
Service: 22,5 knots Trial: 25,5 knots |
|
Built |
1988 |
|
Keel laid |
28.12.1987 |
|
Launch date |
23.02.1988 |
|
Date of completion |
02.05.1988 |
|
Builder |
Imabari Zosen Yard |
|
Yard number |
1162 |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 9L80 MC - 2 stroke single acting 9 cylinder 800 x 2.592 mm diesel engine - 27.868 kW at 88,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,9 bar Evaporation: 18,82 t/h 1x Auxiliary Exhaust gas boiler - 4,0 bar Evaporation: 1,73 t/h Manufacturer: Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works |
|
Generators |
3x Main diesel generatorsets each 1.400 kW 2x Main diesel generatorsets each 1.200 kW |
|
Bow thruster |
No |
|
Tank capacities |
Fuel oil: 5.074 m³ Fresh water: 301 m³ Water ballast: 9.934 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,5 t each |
|
Gear |
Gearless |
|
Crew |
23 |
|
Manager |
Danaos Shipping Co. Ltd. 57 Akti Miaouli str. 57 |
|
Operator |
CMA CGM |
|
Owner |
Victory Shipholding Inc. |
