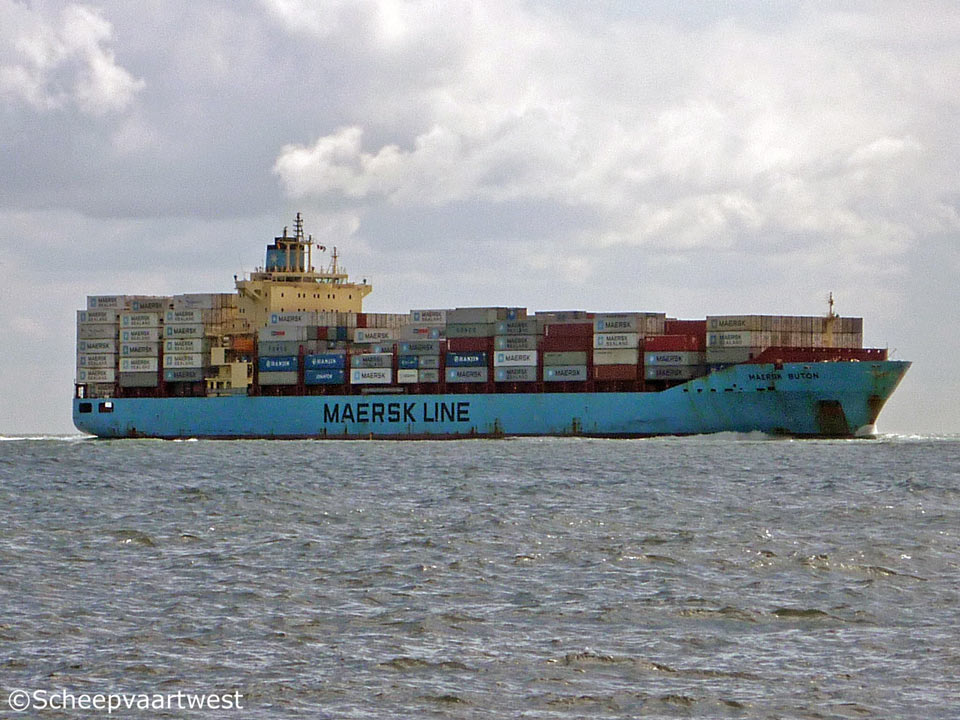

Maersk Buton 01

Westerschelde 16 April 2012



Name

MAERSK BUTON

Type

Cellular containership

IMO-number

9392925

Call sign

9V7498

Flag

Republic of Singapore

Port of registry

Singapore City

GT

35.835 t registered

DWT

Summer: 43.132,8 t

NT

17.696 t registered

Number of 20ft containers

3.194

Container capacity 14t

2.542

Reefer capacity

802

Length

223,50 m overall

212,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

Max.: 12,00 m

Freeboard

2.832 mm

Depth

16,56 m moulded

Speed

Max.: 22,1 knots

Built

2008

Keel laid

26.03.2008

Delivery date

04.07.2008

Builder

Hanjin Heavy Industries & Construction Co.,Ltd.
Busan
South Korea

Yard number

N-194

Hull material

High strength steel

Watertight bulkheads

10

Main engine

1x MAN-B&W 8K80ME-CMK6 - 8 cylinder 800 x 2.300 mm diesel engine 29.231 kW at 104,0 rpm

Manufacturer: HHI Engine & Machinery Division

Propellers

1

Boilers

1x Auxiliary boiler - AQ-12 - 9,0 bar

1x Exhaust Gas Boiler - AQ-2 - 9,0 bar

Manufacturer: Aalborg

Generators

3x HimSen 9H25/33 main diesel generatorsets each 2.055 kW

1x HimSEN 7H25/33 main diesel generatorset 1.595 kW

Number of holds

6

Number of tanks

Ballast: 22

Waste Water: 10

Fuel Oil: 9

Sludge: 7

Lubricating Oil: 7

Diesel Oil: 2

Fresh Water: 2

Chain: 1

Tank capacities 100%

Diesel Oil: 219,08 m³ / 197,17 t

Freshwater: 167,41 m³

Fuel Oil: 4.696,44 m³ / 4.712,94 t

Lube Oil: 277,4 m³ / 249,66 t

Tank Ballast: 13.317,44 m³ / 13.650,37 t

Lifting equipment

1x Engine room overhead crane - SWL 8,0 t

1x Monorail provision crane - SWL 10,0 t

Cargo gear

Gearless

Manager

A.P. Moller Singapore Pte.Ltd.
200 Cantonment Road
#10-00 Southpoint

Singapore, 089783
Republic of Singapore

Operator

Maersk Line

Registered owner

A.P. Moller Singapore Pte.Ltd.

Latest data adjustment

21 January 2017
