Westerschelde 17 February 2016 |
 |
|
| Westerschelde 05/04/16 | |
|
Name |

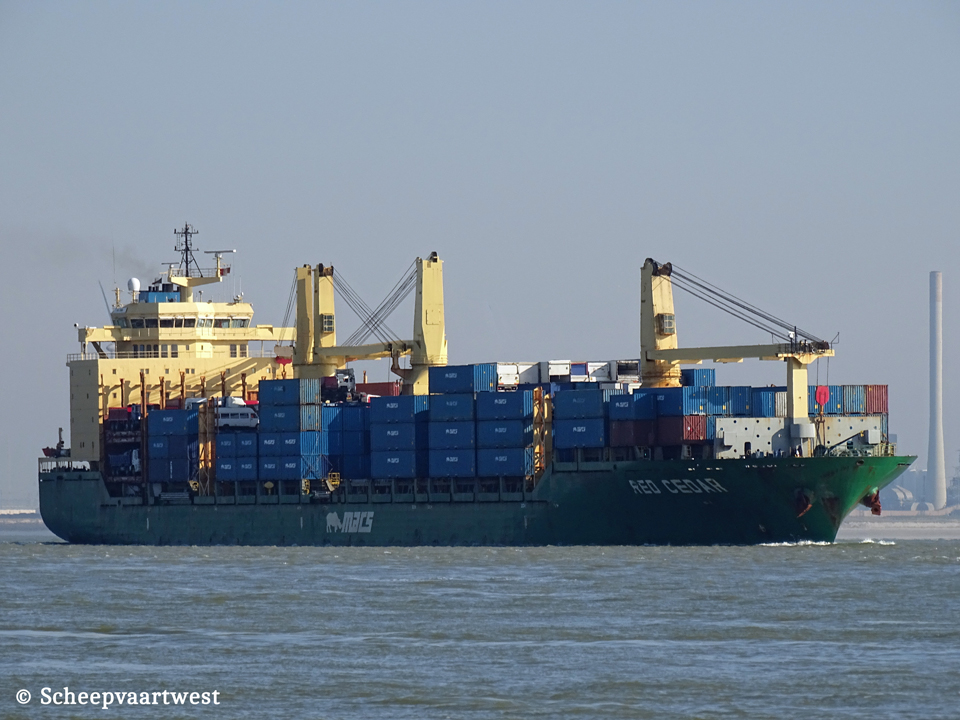

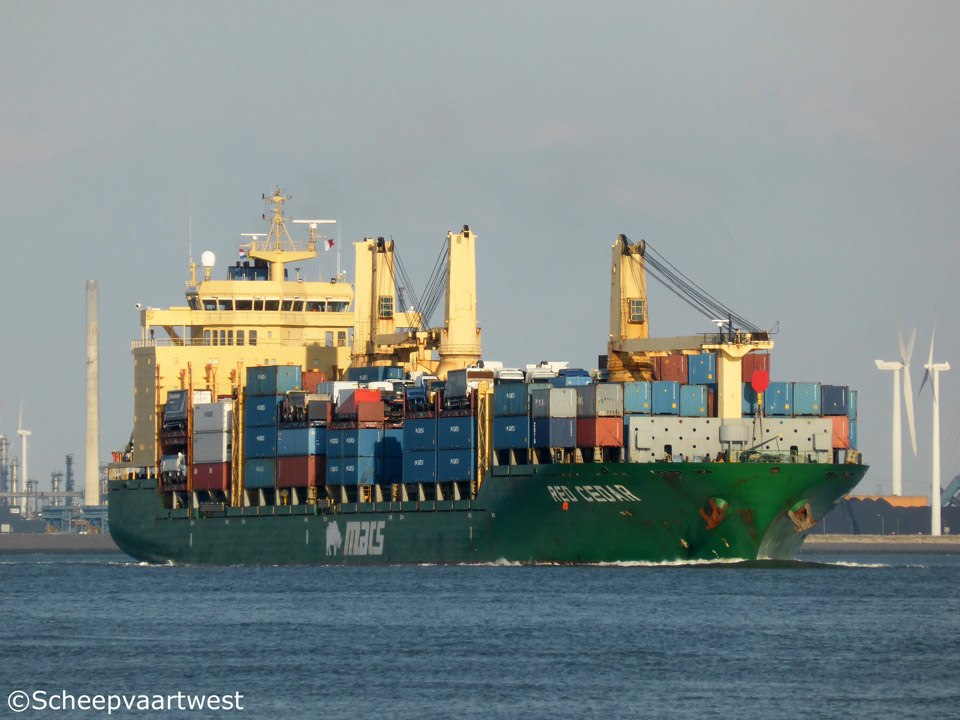

RED CEDAR |
|
Previous names |
2001 - 06/2004 Cape Darby 06/2004 - 04/2006 Golden Iris 04/2006 - 07/2007 Cape Darby 07/2007 - 07/2008 Golden Isle 07/2008 - 11/2009 Rickmers Houtson 11/2009 - 12/2012 Red Cedar 12/2012 - 04/2013 Cape Darby |
|
Type |
Cellular containership - Multi-purpose box shaped twd container vessel |
|
IMO-number |
9231092 |
|
Call sign |
V7EH4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.132 t |
|
DWT |
Summer: 30.537 t |
|
NT |
9.375 t |
|
Number of 20ft containers |
1.829 |
|
Container capacity 14t |
1.350 |
|
Reefer capacity |
150 |
|
Length |
192,90 m overall 182,00 m between perpendiculars |
|
Breadth |
27,80 m extreme |
|
Draught |
11,20 m |
|
Depth |
15,50 m |
|
Speed |
Max.: 19,4 knots Service: 18,0 knots |
|
Built |
2001 |
|
Keel laid |
18/05/2000 |
|
Launch date |
12/01/2001 |
|
Date of completion |
01/10/2001 |
|
Builder |
Xiamen Shipyard Xiamen China |
|
Yard number |
MX439A |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Hudong/MAN-B&W 7S60MC-C, - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine Mcr 15.785 kW / 21.461 hp at 105,0 rpm Manufacturer: Hudong Heavy Machinery - China |
|
Propellers |
1x Fixed pitch propeller - aft at 105,0 rpm |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated - AV-4 |
|
Generators |
2x MAN-B&W 6L23/30H - 4 strike 6 cylinder 225 x 300 mm diesel engines each Mcr 960 kW connected with generators each 910 kW 1x MAN-B&W 7L23/30H - 4 strike 7 cylinder 225 x 300 mm diesel engines each Mcr 1.120 kW connected with generator 1.060 kW |
|
Emergency generator |
1x Diesel generatorset 212 kVA |
|
Bow thruster |
1x Tunnel thruster 900 kW / 1.224 bhp, forward |
|
Number of cargo holds |
5x Box shaped holds |
|
Caro hold capacity |
34.600 m³ |
|
Number of hatches |
5 Hatch 1: 12.80 x 15.40 and 12.80 x 20.40 m Hatch 2-4: 2 x 25,60 x 10,30 m Hatch 5: 2 x 12,80 x 10,30 m |
|
Cargo space ventilation |
6x Air-changes / hour |
|
Tank capacities |
Ballast: 12.279,4 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 68 mm |
|
Cargo gear |
2x Cranes - SWL 100 t 2x Cranes - SWL 50 t |
|
Crew size |
28 |
|
Manager |
Vineta Bereederungsgesellschaft mbH Große Elbstraße 138 22767 Hamburg Germany |
|
Registered owner |
Vineta Schiffahrtsbeteiligungsgesellschaft mbH |
|
Latest data adjustment |
14 May 2023 |
