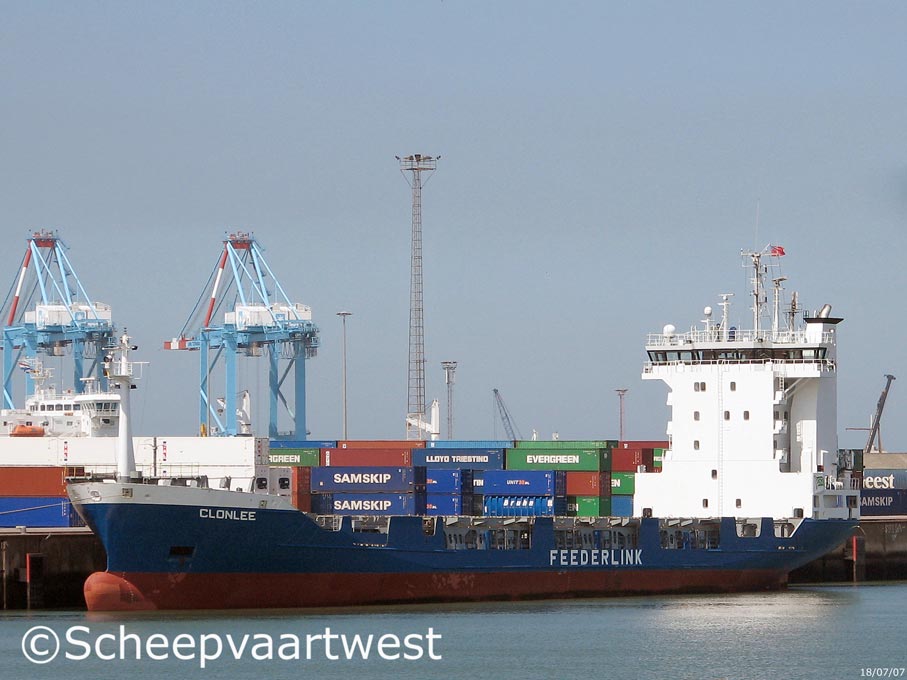

| Zeebrugge 18 July 2007 |
|
Name |
CLONLEE |
|
Previous names |
1996-10.05.2002 Vera Rambow |
|
Type |
Cellular Containership |
|
IMO-number |
9129471 |
|
Call sign |
MQUJ9 |
|
Flag |
Isle of Man |
|
Previous flag |
30.04.2007 Germany |
|
Port of registry |
Douglas |
|
GT |
3.999 t |
|
DWT |
Summer: 5.207 t |
|
NT |
2.176 t |
|
Number of 20ft containers |
508 |
|
Container cap. at 14 t |
372 |
|
Reefer capacity |
50 |
|
Length |
101,10 m overall |
|
Breadth |
18,50 m over all |
|
Draught |
Summer: 6,55 m |
|
Forecastle |
9,33 m |
|
Poop |
9,00 m |
|
Freeboard |
1.700 mm |
|
Depth |
8,25 m |
|
Speed |
15,5 knots |
|
Built |
1996 |
|
Keel laid |
17.01.1995 |
|
Launch date |
30.11.1995 |
|
Date of completion |
01.1996 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1123 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Main engine |
1x MWM TBD645 L 9 - 4 stroke single acting 9 cylinder diesel 330 x 450 mm diesel engine - 3.825 kW |
|
Number of screws |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x Plant 380/220 V - 640 kVA |
|
Shaft generator |
1x 850 kW |
|
Generators |
2x Main diesel generatorsets each 320 kVA |
|
Emergency generator |
1x Diesel generatorset 40 kVA |
|
Compressed air receivers |
2 Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 400 kW, forward |
|
Cargo capacity |
Bale: 7.013 m³ / 247.700 ft³ |
|
Tank capacities |
Ballast: 2.099 m³ |
|
Largest hatch |
Length: 25,90 m |
|
Anchor Equipment |
3x Anchors weight each 3.300 kg |
|
Cargo gear |
None |
|
Manager |
Wilfried Rambow |
|
Operator |
Feederlink |
|
Owner |
North Atlantic Shipping Ltd. |
