Name |

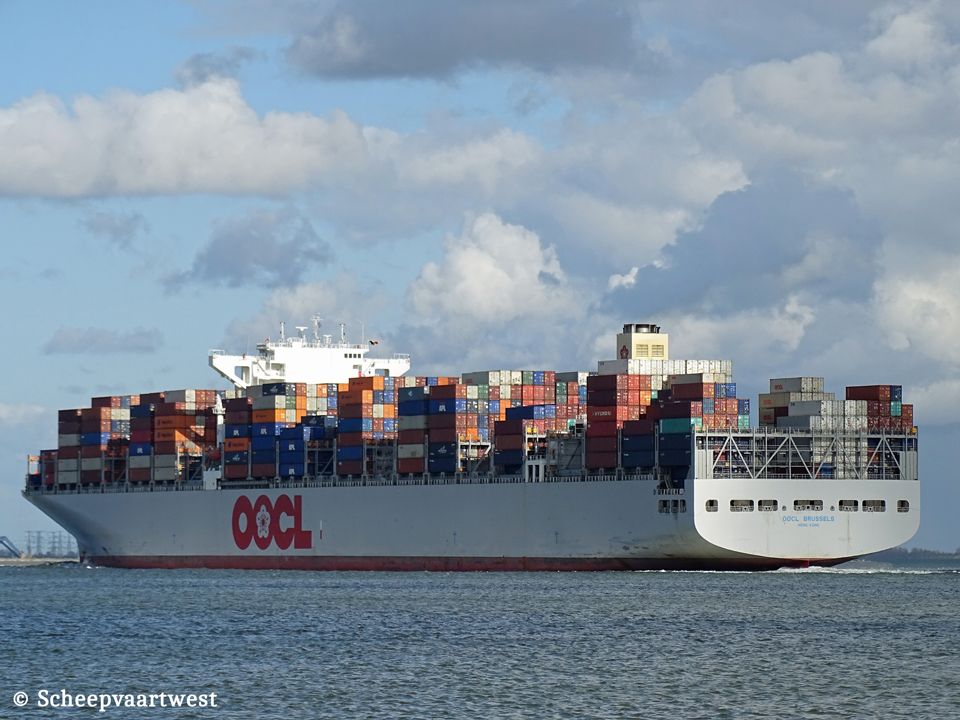

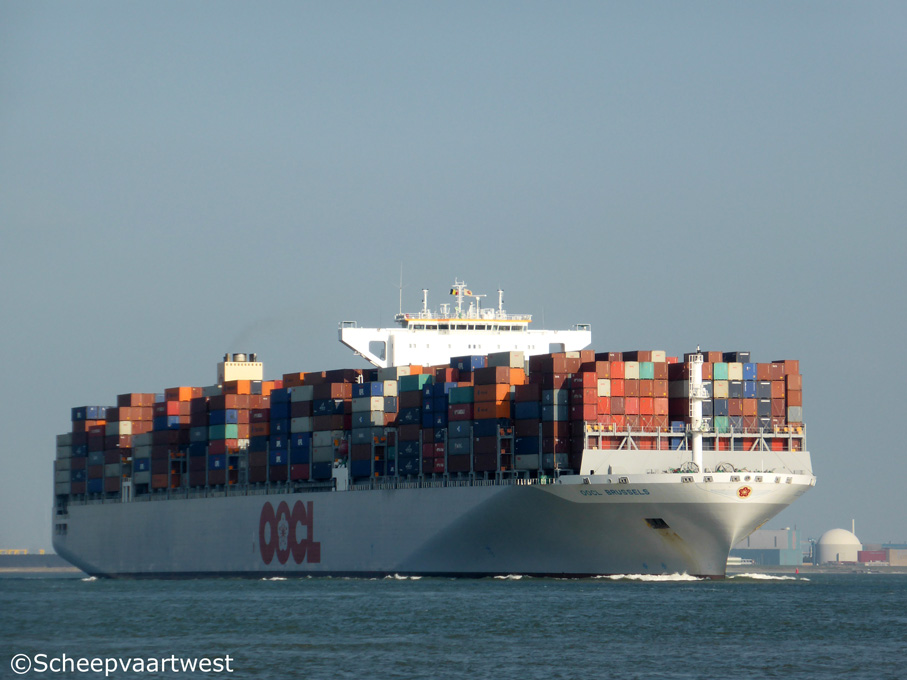

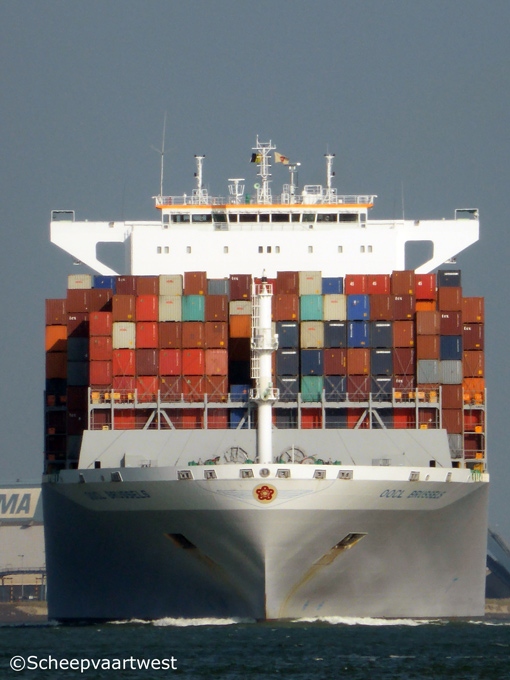

OOCL BRUSSELS |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9622590 |
|
Call sign |
VRLJ3 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GRT |
141.795 t |
|
DWT |
Summer: 144.150,28 t |
|
NRT |
69.987 t registered Panama: 144.368 t |
|
Displacement |
186.922,2 t |
|
Light ship |
43.115,43 t |
|
Number of 20ft containers |
13.208 |
|
Container capacity 14t |
9.080 |
|
Reefer capacity |
1.150 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
15,50 |
|
Freeboard |
7.424 mm |
|
Depth |
29,80 m |
|
Speed |
22,0 knots Max.: 23,5 knots |
|
Built |
2013 |
|
Keel laid |
10/02/2012 |
|
Launch date |
03/11/2012 |
|
Delivery date |
26/03/2013 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. 80 Jangpyeong 3-Ro, Geoje-Si Gyeongsangnam-Do, 53261 South Korea |
|
Yard number |
2003 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
10 |
|
Main engine |
1x MAN-B&W/Hyundai 12S90ME-C9.2 - 12 cylinder 900 x 3.260 mm combustion engine Mcr 54.200 kW / 73.691 hp at 77,2 rpm Manufacturer: Hyundai Engine Mfg. Co.,Ltd. |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
Auxiliary boiler - 10,0 MPa Exhaust gas boiler - 10,0 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Shaft generator |
1x 3.300 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.650 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
3.000 kW |
|
Number of holds |
7 |
|
Number of tanks |
Ballast: 23 Lubricating oil: 16 Fuel oil: 12 Waste water: 7 Diesel oil: 6 Sludge: 5 Fresh water: 4 Chain: 2 |
|
Tank capacities |
Diesel Oil: 614,8 m³ Fresh water: 870,5 m³ Fuel Oil: 10.763 m³ Lube Oil: 599,6 m³ Tank Ballast: 44.306 m³ |
|
Lifting equipment |
2x Engine room cranes - SWL 12,5 t each 1x monorail crane - SWL 13,0 t 2x Provision cranes - SWL 4.0 t each Manufacture: Oriental Prec & Eng'g Co. |
|
Cargo gear |
Gearless |
|
ISM manager |
OOCL - Orient Overseas Container Line 33rd Floor, Harbour Centre 25 Harbour Road Wanchai Hong Kong |
|
Registered owner |
Union Faith (H.K.) Limited 31st Floor, Harbour Centre 25 Harbour Road Wanchai Hong Kong |
|
Previous owner |
Yamasa Shipholding 2003 S.A. - Hong Kong |
|
Latest data adjustment |
03 June 2023 |
