Westerschelde 05 November 2014 |
|
Name |

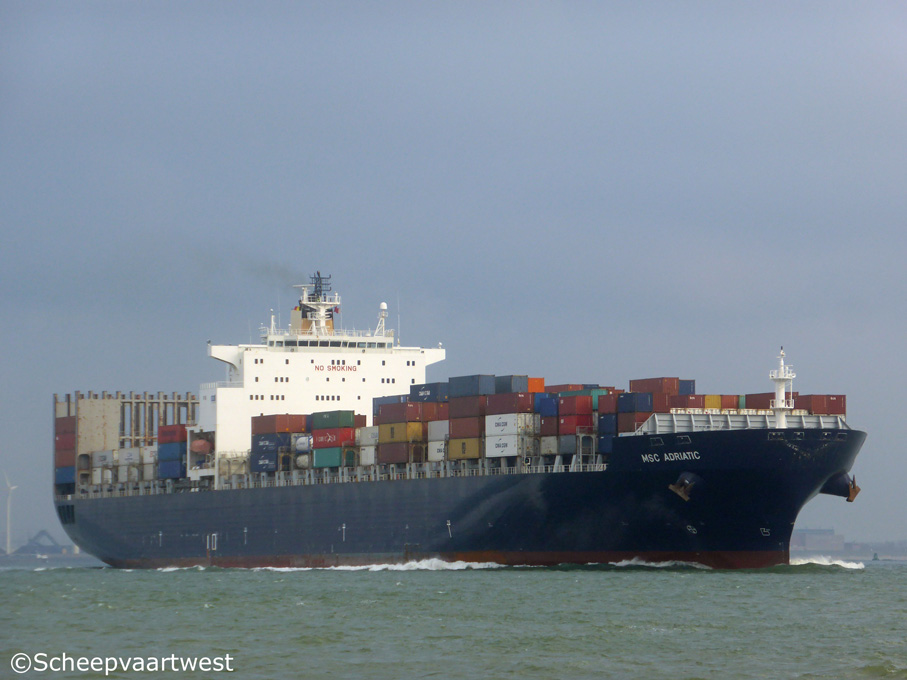

MSC ADRIATIC |
|
Previous names |
2001 Build as: E.R. Paris 04/2001 - 04./2009 OOCL France |
|
Type |
Cellular containership |
|
IMO-number |
9214226 |
|
Call sign |
D5ES8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
66.289 t |
|
DWT |
Summer: 67.591 t |
|
NT |
33.235 t |
|
Number of 20ft containers |
5.762 |
|
Container capacity 14t |
4.185 |
|
Reefer capacity |
656 |
|
Length |
277,27 m overall 263,00 m between perpendiculars |
|
Breadth |
40,35 m extreme 40,00 m moulded |
|
Draught |
14,00 m |
|
Forecastle |
252,25 m |
|
Poop |
7,90 m |
|
Depth |
24,30 m |
|
Speed |
Max.: 24,9 knots |
|
Built |
2001 |
|
Keel laid |
30/11/2000 |
|
Launch date |
18/02/2001 |
|
Date of completion |
28/05/2001 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Goeje Shipyard Koje South Korea |
|
Yard number |
1267 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K90 MC - 2 stoke 12 cylinder 900 x 2.550 mm combustion engine 54.840 kW / 74.562 hp at 94,0 rpm Build: 2001 Builder: Samsung Shipbuilding & Heavy Industries Co.Ltd.(B&W), Koje - South Korera |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 40,1 m² 1x Steam boiler, exhaust gas heated 10,0 bar Heating surface: 1.160,0 m² Year of manufacture: 2000 Manufacturer: Aalborg Boilers A/S |
|
Electric installations |
1x Plant 440/220 V - 3.625 kVA 1x Plant 440/220 V - 3.625 kVA 1x Plant 440/220 V - 3.625 kVA 1x Plant 440 V - 2.625 kVA 1x Plant 440 V - 188 kVA 1x Plant 24 V - 135 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 2.625 kVA |
|
Generators |
3x MAN B&W 7L32/40 main diesel generatorsets each 3.625 kVA |
|
Emergency generator |
1x NT743G diesel generatorset 188 kVA |
|
Batteries |
2x Batteries for UPS radio each 135 Ah |
|
Compressed air receivers |
2x Receivers each 16.500 litres - 25,0 bar 2x Receivers each 150 litres - 25,0 bar 1x Receiver 300 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Tank capacity |
Ballast: 15.061 m³ Fuel: 8.737 m³ |
|
Anchor equipment |
3x Anchors weight each 15.400 kg Length: 742,50 m Diameter: 97 mm |
|
Cargo gear |
Gearless |
|
Manager |
E.R. Schiffahrt GmbH & Co. KG Hamburg Germany |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
MS 'E.R. France' Schiffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
E.R. France Liberia, Monrovia - Call sign: D5ES8 Owner: Second Dragon Shipping Inc. Manager: ZEABORN Ship Management GmbH & Cie. KG |
|
Latest data adjustment |
20 November 2020 |
