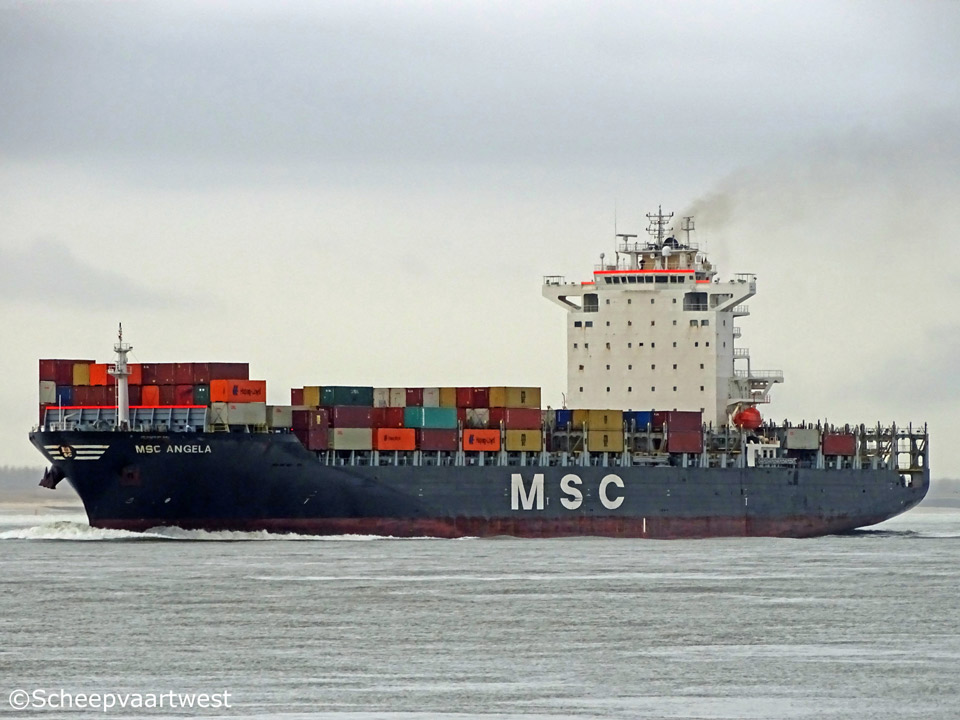

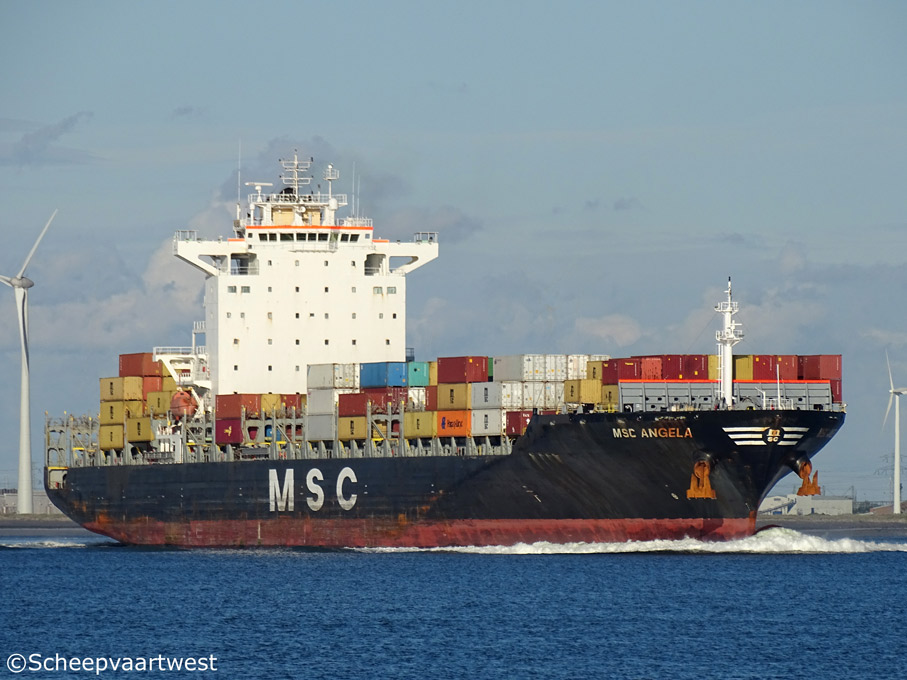

MSC Angela - IMO 9351593

Westerschelde 14 July 2016

Name

MSC ANGELA

Type

Cellular containership

IMO-number

9351593

Call sign

3ESB8

Flag

Republic of Panama

Port of registry

Panama City

GT

41.225 t

DWT

Summer: 53.457,6 t

NT

24.035 t

Number of 20ft containers

4.254

Number of 40ft containers

503

Reefer capacity

550

Length

265,06 m overall

252,00 m between perpendiculars

Breadth

32,35 m extreme

32,25 m moulded

253,57 m registered

Draught

13,00 m

Depth

19,30 m moulded

Speed

Max.: 24,5 knots

Built

2008

Keel laid

27.12.2007

Launch date

08.05.2008

Date of completion

02.08.2008

Builder

Zhejiang Shipbuilding Co., Ltd.
69, Jiangnan Road
Ningbo, 315040 Zhejiang
People's Republic of China

Yard number

ZJB05-139

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 8K90MC-C 8 K90MC-C - 2 stroke 8 cylinder 900 x 2.300 mm diesel engine - 36.560 kW / 49.741 at 104,0 rpm

Year of manufacture: 2007

Manufacturer: Dalian Marine Diesel Co., Ltd.
1, Hai Fang Street Xigang District
Dalian, 116021 Liaoning
People's Republic of China

Propellers

1x Solid propeller - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating Surface: 47,2 m²

Year of manufacture: 2007

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating Surface: 915,2 m²

Year of manufacture: 2008

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
Qingdao, 266500 Shandong
People's Republic of China

Electric installations

4x Plants each 450 V - 2.750 kVA

1x Plant 450 V - 312,5 kVA

Generators

4x MAN 7L27/38 diesel generatorsets each 2.750 kVA / 2.200 kW

Emergency generator

1x MAN D2866 LXE20 diesel generatorset 312,5 kVA

Compressed air receivers

2x Receivers each 12.000 litres - 30,0 bar

1x Receiver 800 litres - 30,0 bar

1x Receiver 1.200 litres - 10,0 bar

2x Receivers each 1.000 litres - 7,0 bar

Bow thruster

1x Transverse thruster - 1.600 kW, forward

Tank capacities

Ballast: 11.917,7 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Length: 687,50 m

Diameter: 87 mm

Cargo gear

Gearless

Crew size

28

Manager

MSC Mediterranean Shipping Company S.r.l.
Via Francesco Ciampa, 29
80063 Piano di Sorrento
Naples
Italy

Operator

MSC- Mediterranean Shipping Company

Registered owner

Rofetis Corporation

Latest data adjustment

15 August 2016
