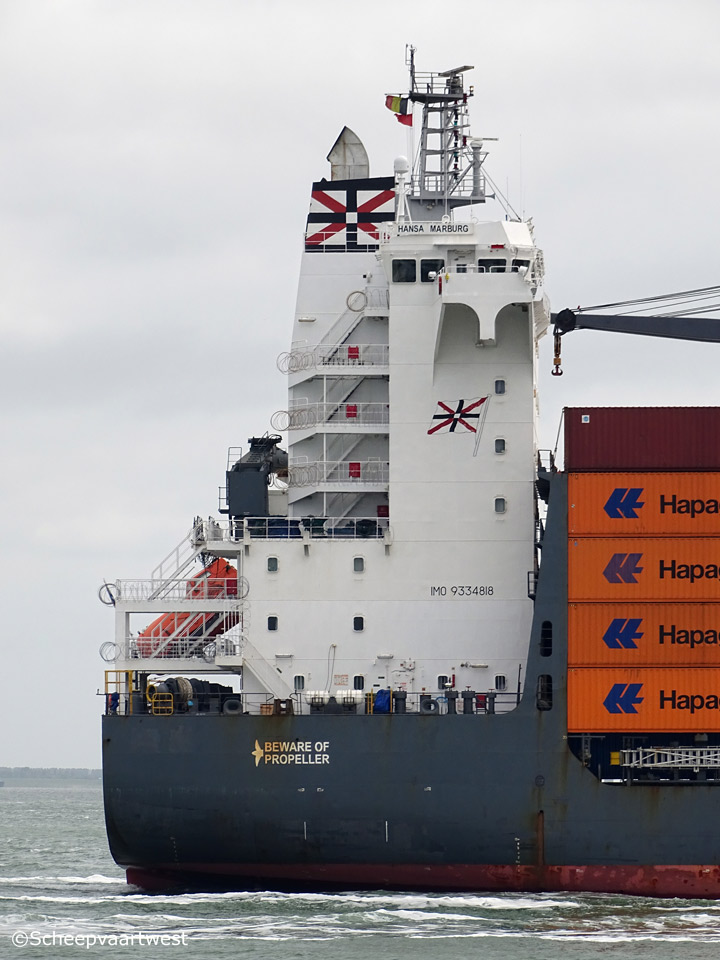

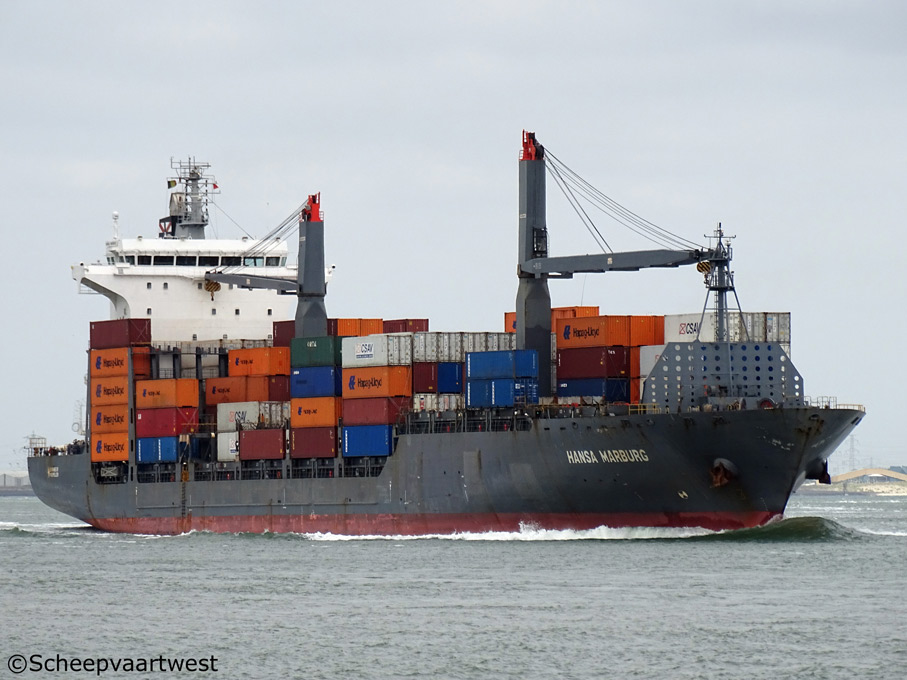

Westerschelde 24 May 2016 |
 |
 |
|||

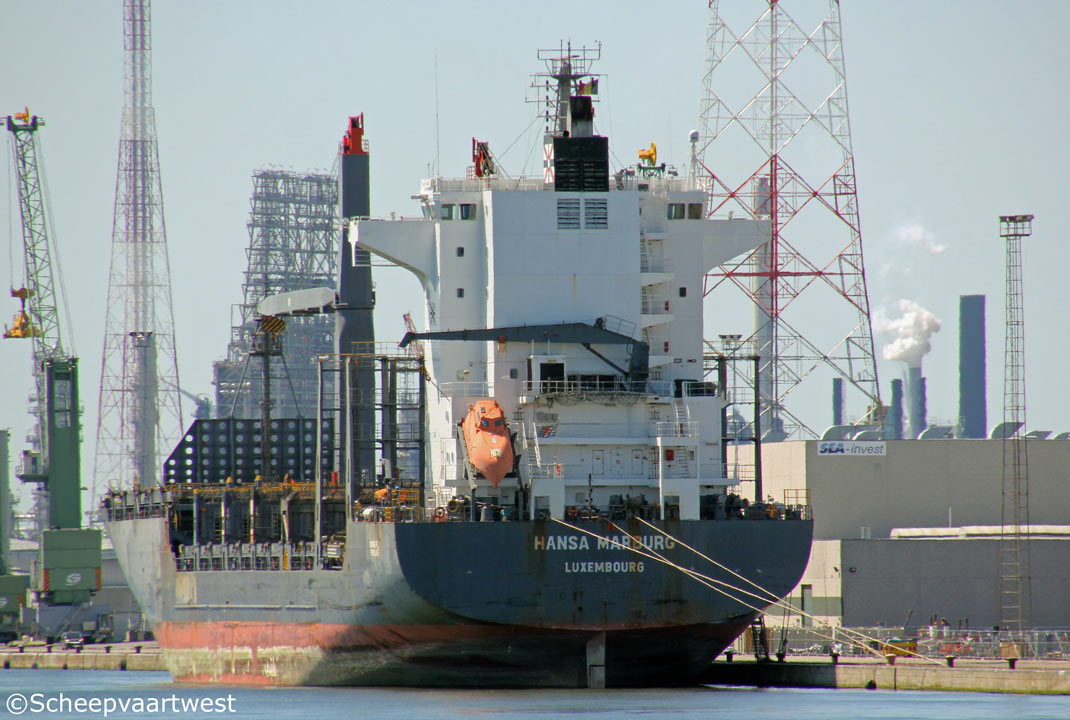

| Antwerpen 25/05/17 | Ant 24/05/17 | |||
|
Name |
HANSA MARBURG |
|
Type |
Containership |
|
IMO-number |
9334818 |
|
Call sign |
D5UH6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2007 - 2015 Liberia, Monrovia - Call sign: A8KV6 2015 - 2019 G.D. Luxembourg, Luxembourg City - Call sign LXHM |
|
GT |
18.327 t |
|
DWT |
Summer: 23.419,6 t |
|
NT |
10.908 t |
|
Number of 20ft containers |
In hold: 700 On deck: 1.036 Total: 1.736 |
|
Number of 40ft containers |
In hold 388 On deck: 520 Total: 908 |
|
Container capacity 14t |
1.290 |
|
Reefer points |
300 whereof 80 under deck |
|
Length |
175,54 m overall 165,00 m between perpendiculars |
|
Breadth |
27,71 m extreme 27,40 m moulded |
|
Draught |
10,90 m |
|
Forecastle |
57,81 m |
|
Poop |
16,04 m |
|
Freeboard |
3.425 mm |
|
Depth |
14,30 m |
|
Speed |
19,5 knots |
|
Built |
2007 |
|
Keel laid |
22/12/2004 |
|
Launch date |
05/12/2006 |
|
Date of completion |
26/01/2007 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. 1, Wenchuan Road Hongshan Street, Huangpu District Guangdong People's Republic of China |
|
Yard number |
GWS326 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom - continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong 7S60MC-C Mk VII - 2 stroke 7 cylinder combustion engine 16.660 kW / 22.651 hp at 105,0 rpm Builder: Hudong Heavy Machinery Co., Ltd. (B&W), Shanghai - China |
|
Propellers |
1x Solid propeller (keyless) - aft at 105,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated Heating surface 41,0 m² Heating surface 395.0 m² Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Electric Installations |
1x Plant 450/220 V - 1.500 kVA 2x Plant 450/220 V - 1.750 kVA 1x Plant 450 V - 212,5 kVA 1x Plant 24 V - 56 Ah 1x Plant 24 V - 180 Ah 1x Plant 24 V - 195 Ah |
|
Generators |
1x MAN B&W 6L28/32H diesel generatorset 1.500 kVA 2x MAN B&W 7L28/32H diesel generatorsets each 1.750 kVA |
|
Emergency generator |
1x Sisu diesel 645 DSBIG diesel generatorset 212,5 kVA |
|
Batteries |
1x Battery for UPS navigation 195 Ah 1x Battery for automation 180 Ah 1x Battery for start emergency engine 56 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 1x Receiver 350 litres - 11,0 bar 2x Receivers each 40 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 900 kW, forward |
|
Nuber of holds |
5 |
|
Cargo hold capacity |
27.172 m³ |
|
Number of hatched |
8 |
|
Hatch cover type |
Pontoon |
|
Tank capacities |
Ballast: 7.815,7 m³ Fuel: 2.042 m³ Fresh water: 109 m³ |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Length: 632,50 m Diameter: 68 mm |
|
Lifting aquipment |
1x Crane - SWL 4,0 t 1x Crane - SWL 6,0 t |
|
Cargo gear |
2x Elect/hydraulic deck cranes - SWL 40,0 t each |
|
Manager |
Leonhardt & Blumberg Reederei GmbH & Co. KG Neumühlen 13 22763 Hamburg Germany |
|
Registered owner |
Schiffahrts-Gesellschaft "HANSA MARBURG" mbH & Co. KG Neumühlen 13 22763 Hamburg Federal Republic of Germany |
|
Renamed |
2019 Okee Alicia Liberia, Monrovia - Call sign: D5UH6 Owner: Okee Ship Five Gmbh & Co., KG Manager: OKEE Shipmanagement GmbH & Co. KG |
|
Latest data adjustment |
22 August 2023 |
