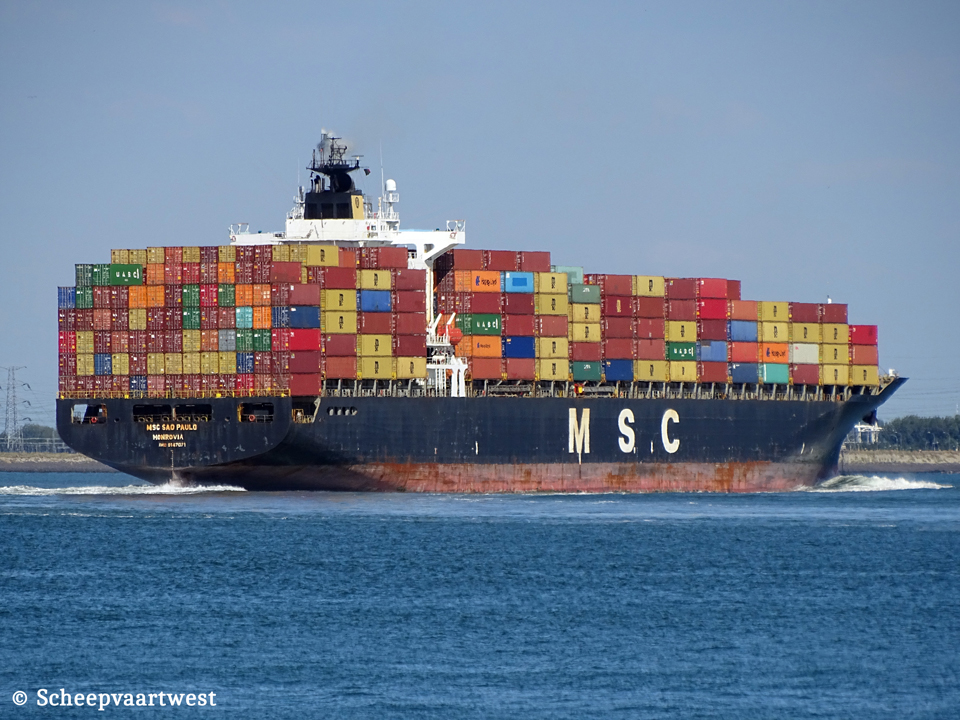

Westerschelde 11 August 2019 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 11/08/19 | Westerschelde 11/08/19 | Westerschelde 11/08/19 | Westerschelde 19/03/16 | Westerschelde 16/10/16 | Antwerpen 24/05/16 | |||||
 |
 |
 |
||||||||
| Westerschelde 30/06/15 | Westerschelde 22/07/20 | Westerschelde 22/07/20 | ||||||||
|
Name |
MSC SAO PAULO |
|
Previous names |
1998 - 05/2008 Pohang Senator 05/2008 - 01/2013 CSAV Pyrenees 01/2013 - 04/2013 Pohang |
|
Type |
Cellular containership |
|
IMO-number |
9147071 |
|
Call sign |
D5GL3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
53.324 t |
|
DWT |
Summer: 63.537 t |
|
NT |
30.816 t |
|
Light ship |
18.959 y |
|
Number of 20ft containers |
In hold:2.307 on deck: 2.238 Total: 4.545 |
|
Container capacity 14t |
3.361 |
|
Reefer capacity |
350 |
|
Length |
294,12 m overall 183,20 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
13,00 m |
|
Depth |
21,80 m |
|
Speed |
23,7 knots |
|
Built |
1998 |
|
Keel laid |
08/08/1997 |
|
Launch date |
29/11/1997 |
|
Date of completion |
20/01/1998 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. Ulsan South Korea |
|
Yard number |
1022 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9K90MC-C - 2 stroke single acting 9 cylinder 900 x 2.300 mm combustion engine 41.040 kW / 55.798 hp at 104,0 rpm Builder: Hyundai Heavy Industries Co Ltd – South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite |
|
Generators |
2x MAN-B&W 8L28/32 H - 4 stroke 8 cylinder diesel diesel each 1.600 kW connected with 2 generators each 1.550 kW 440 Volt 60 Hz 1x MAN-B&W 7L28/32 H - 4 stroke 7 cylinder 280 x 320 mm diesel engine 1.450 kW connected with generator 1.380 kW 440 Volt 60 Hz |
|
Emergency generator |
1x MTU 8V183TE diesel generatorset 470 kW |
|
Bow thruster |
1x Fixed pitch thruster 1.826 kW / 2.483 hp, forward |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain: 111.064 m³ |
|
Number of hatches |
17 |
|
Tank capacities |
Ballast: 18.125 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Crew size |
20 |
|
Manager |
MSC Shipmanagement Limited |
|
Operator |
MSC - Mediterranean Shipping Company Chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Registered owner |
Sao Paulo Maritime Inc. |
|
Previous owner |
Beteiligungs KG ms "Pohang" Schiffahrts GmbH & Co Cooper Shipping Ltd. One Star MSC Ltd. |
|
Renamed |
04/2003 MSC Sao Paulo V Liberia, Monrovia - Call sign: D5GL3 Owner: Sao Paulo Maritime Inc. Manager: MSC Shipmanagement Limited, Limassol - Cyprus |
|
Latest data adjustment |
21 August 2024 |
